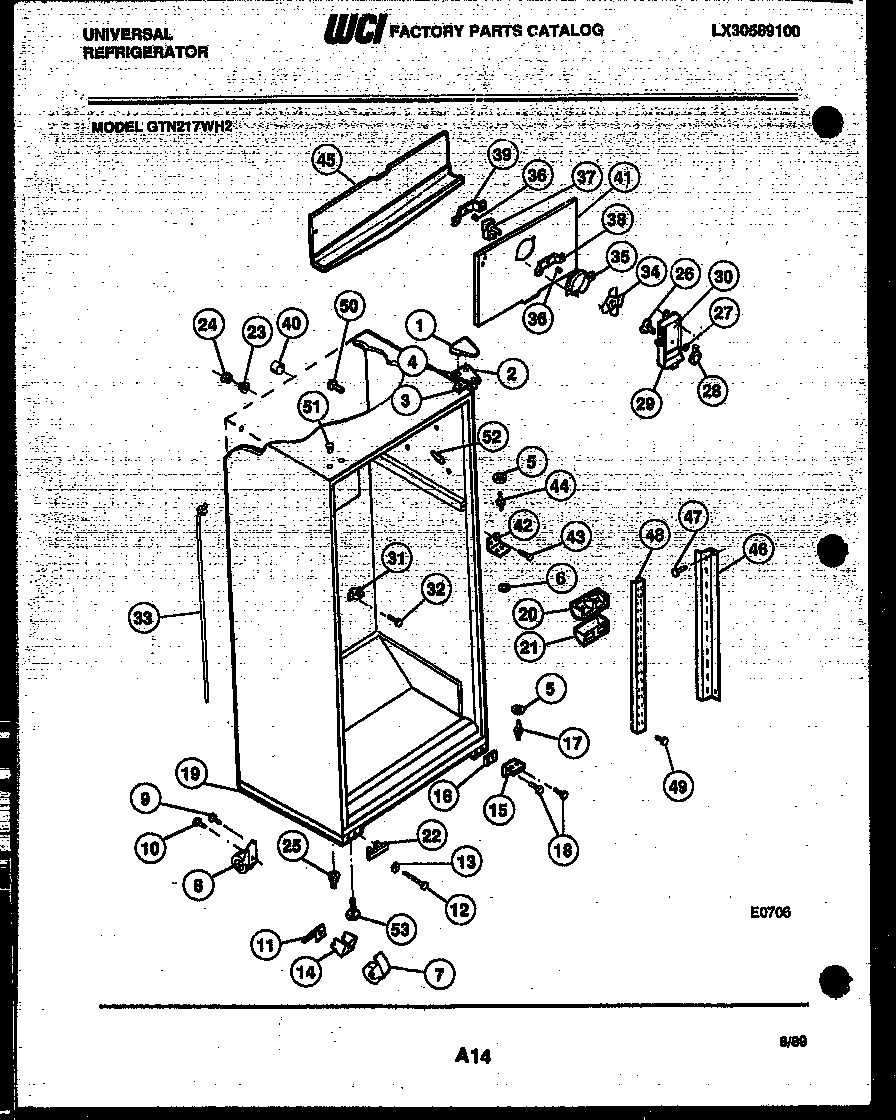

GTN217WHV2 03 – CABINET PARTS

GTN217WHV2 03 – CABINET PARTS

Written by

in

GTN217WHV2 03 – CABINET PARTS

Products

PositionProduct
1COVER, TOP HINGE, AVOCADO
1COVER HINGE, COFFEE
1COVER HINGE, WHEAT
1COVER HINGE, WHITE
1COVER, TOP HINGE, ALMOND
2WCI 08012843
2TAPPING PLATE (2)
3WCI G183861
4241710601 Frigidaire Refrigerator Screw
5WCI G103903
6WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7ROLLER FRONT, ADJUSTABLE (2)
8ROLLER, REAR (2)
95304455651 Frigidaire Refrigerator Screw
10BOLT ROLLER (2)
11SPRING-ROLLER (2)
12BOLT-ROLLER (2)
13WASHER
14SUPPORT, ROLLER (2)
15HINGE-BRACKET-BOTTOM
16SHIM, HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
19WCI G490004-02
20DEFLECTOR AIR
21WCI G162178
22WCI G166912
23WCI G174733
24WCI G174734
25NUT, ANCHOR (2)
26DAMPER FAN COVER
27NUT, DAMPER MOUNTING
28WCI 3001333
29WCI 3001451
30LABEL-FAN CVR
31SPOUT DRAIN TUBE
32PIN-PUSH
33WCI 3001458
33RING, SEAL (NON-ILLUSTRATED)
34WCI G173705
35RING, FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI G185302
39218843801 Frigidaire Refrigerator Screw
39WCI G185303
39WCI G164571
40TUBE, INSULATION (2)
41WCI G184609
41PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
41NUT, ORIFICE (2)
415304455650 Frigidaire Refrigerator Screw
42BRACKET, HINGE CENTER
43SCREW, BRACKET MOUNTING (4)
44WCI G142220
45WCI G177534
46WCI 08000302
475304455852 Frigidaire Refrigerator Screw
48WCI G189341
49SCREW (3) (NON-ILLUSTRATED)
50WCI G163669
51WCI G174747–01
51WCI G174747-09
51WCI G174747-10
51WCI G174747-08
51WCI G174747-11
52TAPPING, PLATE (2)
52CORNER TRIM-AVOCADO
52WCI 3202338
52BUTTON, LINER
52WCI 3202340
52WCI 3202339
52WCI 3202336
53LEG-LEVELING (2)
