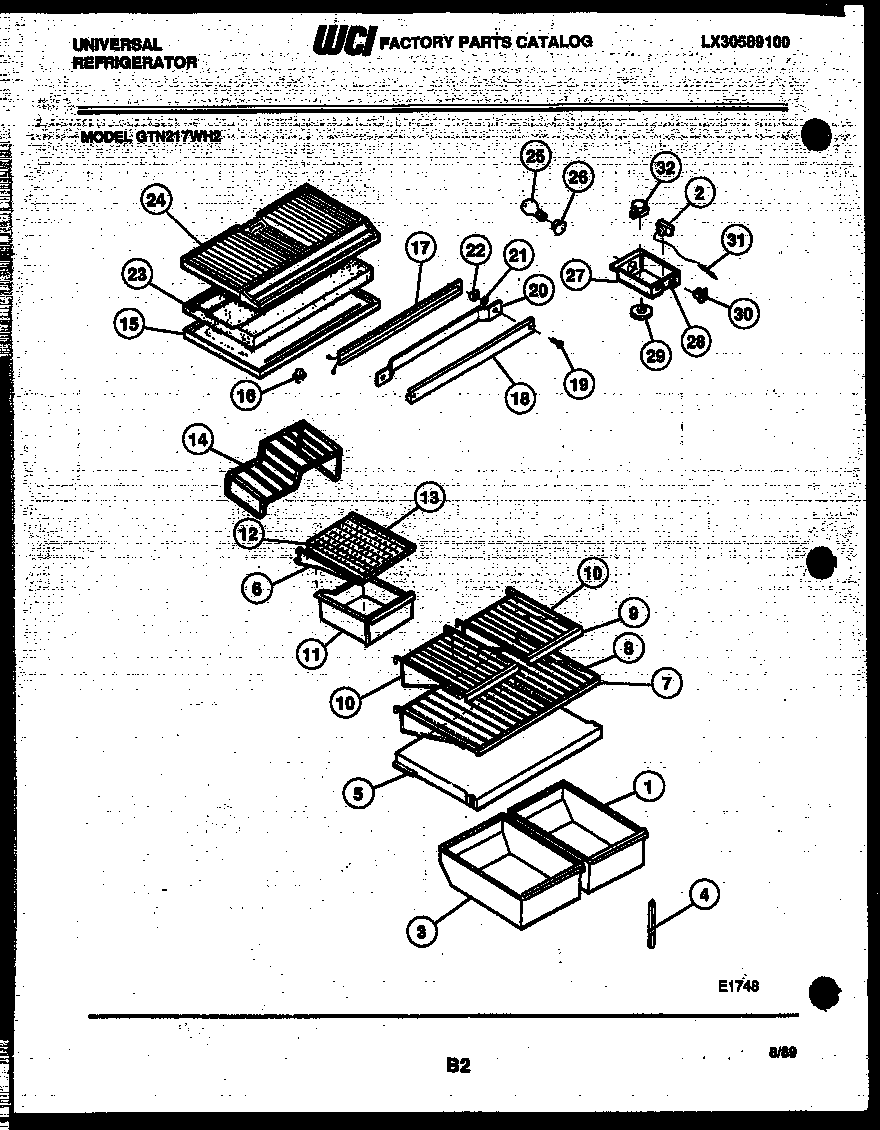

GTN217WHW2 04 – SHELVES AND SUPPORTS

GTN217WHW2 04 – SHELVES AND SUPPORTS

Written by

in

GTN217WHW2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*477285304455649 Frigidaire Refrigerator Screw
1PAN-CRISPER, RIGHT SIDE
2WCI 3200810
2WCI G107080
3PAN-CRISPER, LEFT SIDE
4SUPPORT, CRISPER COVER
5COVER-CRISPER
6RAIL-STRAIGHT RS (NON-ILLUSTRATED)
7WCI G172434-40
8WCI G177390-20
9WCI G172434-41
10WCI G177390-19
11MEAT PAN
12WCI G187195-01
13SCREW-RAIL (2) (NON-ILLUSTRATED)
13RAIL-OFFSET LS
14SHELF-FREEZER
15SCREW (5)
15TOP-REFRIGERATOR
165309918806 Frigidaire Refrigerator Light Switch Door
17WCI 08002662
18WCI 3200369
18WCI 3200366
18WCI 3200370
18MULLION-AVOC
18WCI 3200368
19SCREW, BRACKET MOUNTING (4)
20STRAP, MULLION MOUNTING
21WASHER (2)
22SPACER (NON-ILLUSTRATED)
23HARNESS-DIVIDER (NON-ILLUSTRATED)
23DIVIDER-STYROFOAM
24WCI G184604
25316538904 Frigidaire Oven Lamp Light
26SOCKET LIGHT
27WCI G174655-18
28WCI G178294-01
29WCI 3001335
30WCI 3001670
31TUBE
32215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
