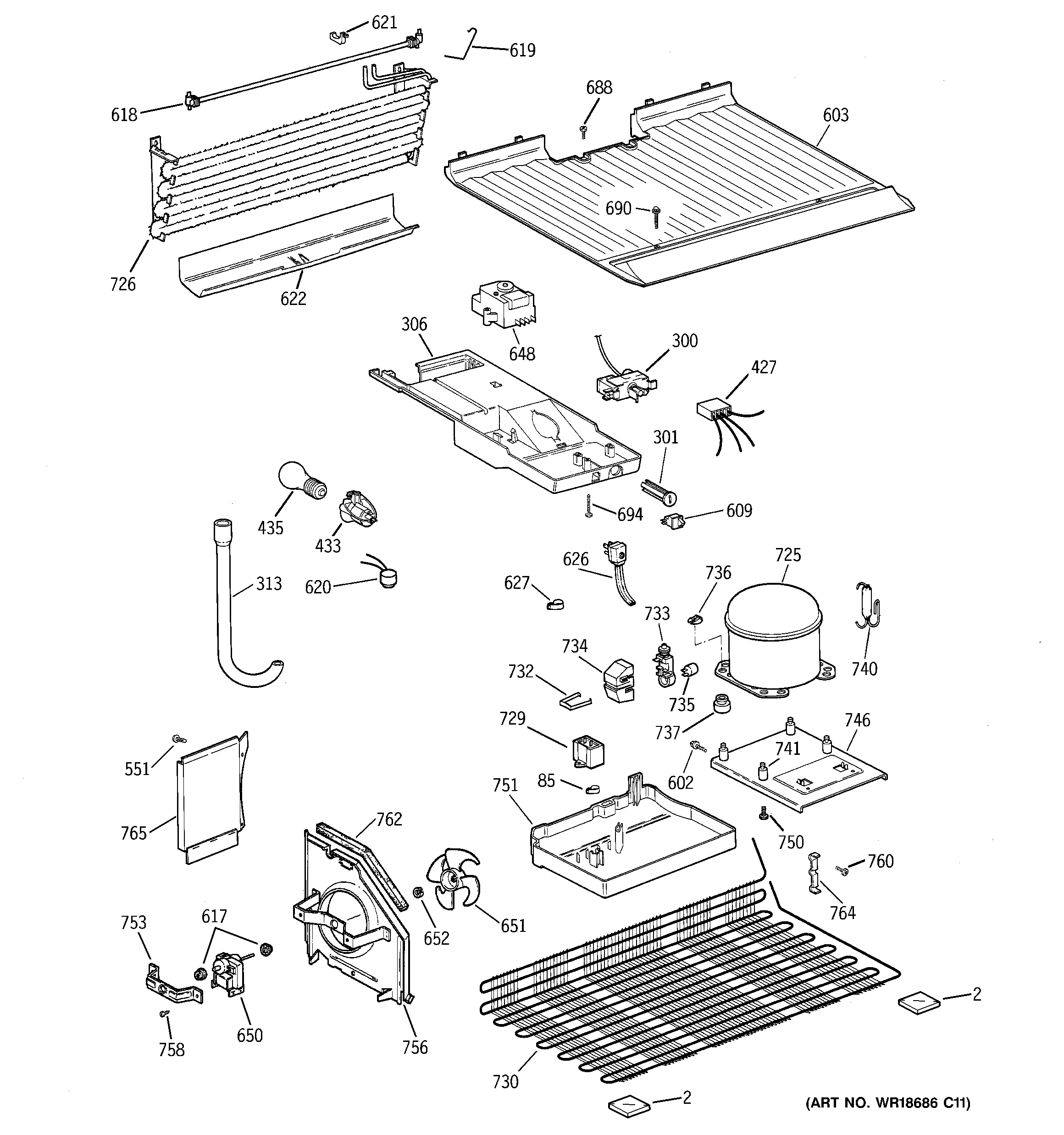

GTS15BBMBLAA UNIT PARTS

GTS15BBMBLAA UNIT PARTS

Written by

in

GTS15BBMBLAA UNIT PARTS

Products

PositionProduct
2GEN WR02X10534
85GEN WR01X2008
300CONTROL TEMP
300WR2X8344 GE Refrigerator Vinyl Sleeve
301WR02X13355 GE Control Knob
306WR17X12852 GE Refrigerator Control Housing
313GEN WR17X10665
427GEN WR23X0358
433WR2X9391 GE Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
551GEN WZ04X0244
602WR1X1591 GE Refrigerator Screw
603GEN WR17X2630
609WR23X37285 GE Light Switch
617GROMMET EVAP
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619GEN WR51X10039
620THERMOSTAT DEF
621WR02X10518 GE Refrigerator Element Holder
622GEN WR17X2635
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
648DEFROST CONTROL
650MOTOR COND FAN
651GEN WR60X10034
652WR02X12149 GE Refrigerator Ring
688WR01X10448 GE Refrigerator Screw 8-19 HI/LO TRP 1" S
690SCR 8-18 AB TPR 1 1/8 S
694GEN WR01X1792
725WR87X10224 GE Refrigerator Compressor Kit EGYS60
726WR87X28948 GE Refrigerator Evaporator
729WR55X24065 GE Refrigerator Kit Capacitor 15 UF
730GEN WR84X0221
732GEN WR02X7928
733WR07X26748 GE Start Relay WB07X26748
734GEN WR02X7929
735WR8X122 GE Refrigerator Overload
736WR2X8583 GE Refrigerator Clip
737GEN WR02X7238
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
746GEN WR17X10195
750WR1X1786 GE Refrigerator Screw
751GEN WR32X10037
753BRACKET COND. FAN
756GEN WR17X10462
758WD2X323D GE Dishwasher Screw Package
760GEN WR01X1717
762GEN WR14X0313
764WR2X9000 GE Refrigerator Condenser Clip
765GEN WR17X10664
