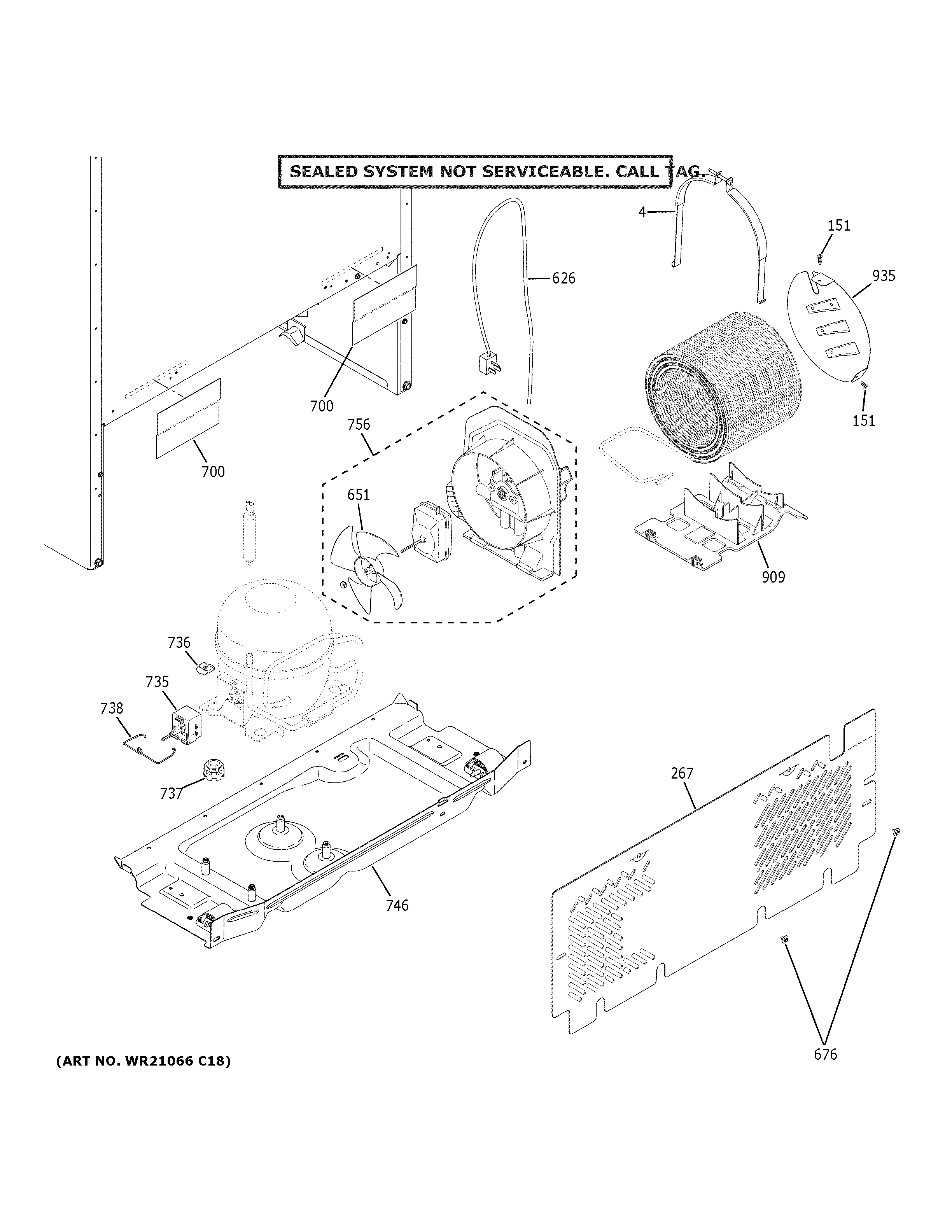

GTS16DTHPRBB MACHINE COMPARTMENT

GTS16DTHPRBB MACHINE COMPARTMENT

Written by

in

GTS16DTHPRBB MACHINE COMPARTMENT

Products

PositionProduct
4WR01X27406 GE Condenser Strap Assembly
151WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
267WR82X31511 GE Refrigerator Rear Access Cover 28
626WR55X31301 GE Refrigerator Machine Compartment Harness
651WR60X10207 GE Refrigerator Fan Blade
676WD2X5166 GE Dishwasher Screw
700WATER DIVERTER
735WR55X31297 GE Refrigerator Overload PTCR Combo
736WR02X28781 GE Compressor Mounting Clip
737WR02X22869 GE Refrigerator Grommet
738RETAINER CLIP
746WR17X30073 GE Refrigerator Base Plate and Stud Assembly
756CONDENSER FAN SHROUD ASM
909WR02X21166 GE Refrigerator Condenser Support
935BAFFLE CONDENSER
