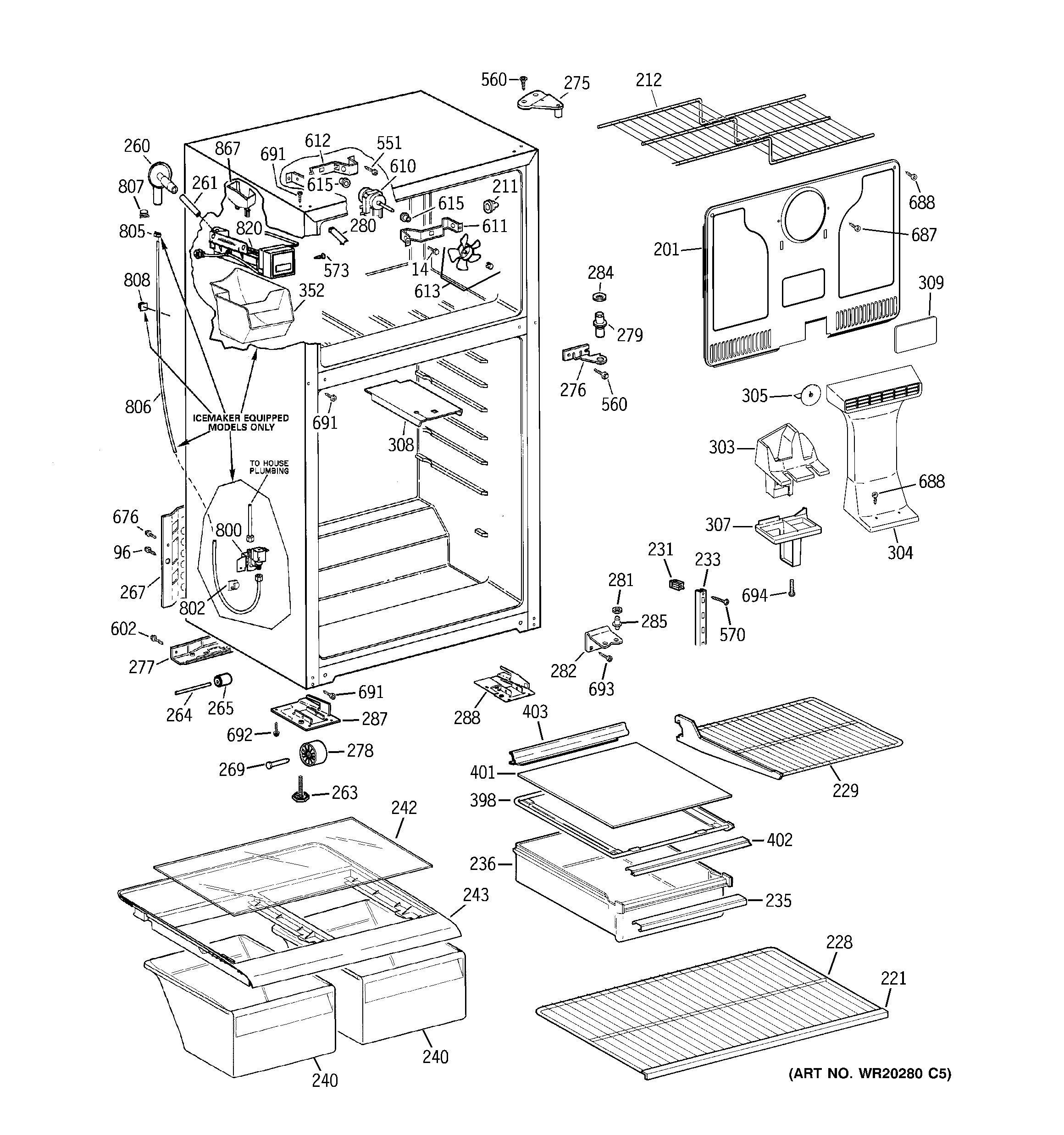

GTS17FCSDRWW CABINET

GTS17FCSDRWW CABINET

Written by

in

GTS17FCSDRWW CABINET

Products

PositionProduct
14GEN WR01X10594
96GEN WR01X2009
201GEN WR17X11887
211WR2X8429 GE Refrigerator Support
212WR71X2086 GE Refrigerator Freezer Shelf Assembly
221GEN WR38X10243
228WR71X10378 GE Wire Rack Shelf
229GEN WR71X2519
231GEN WR02X12762
233GEN WR72X10174
235GEN WR38X10234
236WR32X1448 GE Refrigerator Meat Pan
240WR32X10340 GE Refrigerator Lower Twin Vegetable Crisper Pan
242GEN WR32X10581
243WR17X11662 GE Refrigerator Vegetable Pan Cover
260WR2X9223 GE Donut Gasket
260GEN WR02X10531
261GEN WR02X10532
263WR2X7877 GE Refrigerator Slider Adjuster
264GEN WR02X8214
265GEN WR02X8245
267GEN WR82X10112
269GEN WR02X12267
275GEN WR13X10320
276GEN WR13X10419
277GEN WR17X3188
278WHEEL MOBILITY FRT
279GEN WR02X8232
280WR02X10703 GE Refrigerator Corner Cap OC White
281WASHER HINGE
282GEN WR13X10315
284WR1X1794 GE Refrigerator Door Spacer
285PIN HINGE BOTTOM
287GEN WR02X8709
288GEN WR02X8708
303WR02X20092 GE Refrigerator Foam Duct
304WR17X11891 GE Refrigerator Air Duct E04
305GEN WR02X12018
307WR02X11793 GE Refrigerator Air Diffuser
308GEN WR02X8428
309GEN WR02X12020
352WR30X10154 GE Refrigerator Ice Bucket Assembly
398GEN WR71X10088
401WR32X10580 GE Refrigerator Glass Shelf
402GEN WR38X10196
403GEN WR38X10192
551WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
560GEN WR01X1249
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
573GEN WZ04X0254
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
610WR60X21886 GE Refrigerator Motor Evaporator Fan Service
611GEN WR02X9314
612GEN WR02X9315
613BLADE EVAP FAN ASM
615GEN WR02X13132
676WD2X5166 GE Dishwasher Screw
687WR01X10589 GE Refrigerator Screw 8-15 AB IHXW 1/2"
688WR01X10448 GE Refrigerator Screw 8-19 HI/LO TRP 1" S
691SCREW 12-24
692WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
693WR01X10591 GE Refrigerator Screw 12-24 TT OVT20 .900
694GEN WR01X1792
800WR57X10033 GE Refrigerator Water Inlet Fill Valve
802WR01X10182 GE Refrigerator Clip
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11349 GE Refrigerator Plastic Tube
807WR02X11437 GE Refrigerator Clamp
808WR2X4039 GE Refrigerator Clamp
820WR30X10093 GE Refrigerator Ice Maker
867WR29X10092 GE Refrigerator Ice Maker Fill Cup
