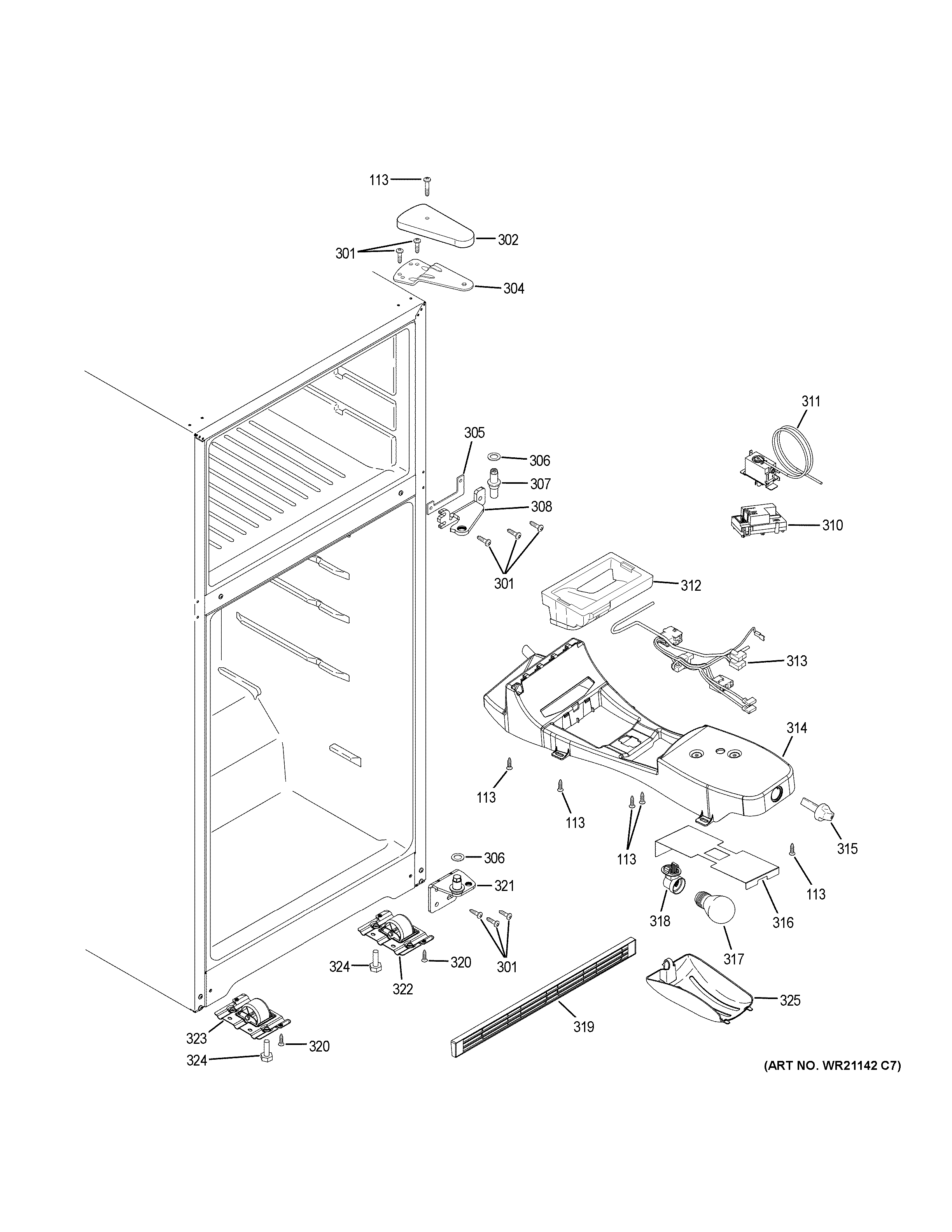

GTS18FGLBWW FRESH FOOD SECTION

GTS18FGLBWW FRESH FOOD SECTION

Written by

in

GTS18FGLBWW FRESH FOOD SECTION

Products

PositionProduct
113WR01X27333 GE Refrigerator Screw 3.9mm x 16mm
301WR01X27335 GE Refrigerator M6 x 16mm Screw
304WR13X27462 GE Refrigerator Top Hinge
305WR13X27290 GE Refrigerator Center Hinge Shim
306WR01X27360 GE Refrigerator Hinge Pin Washer
307WR13X27432 GE Refrigerator Center Hinge Pin
308WR13X27463 GE Refrigerator Center Hinge UNPAINTED
310WR09X28646 GE Refrigerator Defrost Control Board
311WR09X30047 GE Refrigerator Temperature Control
312NOZZLE SUPPLY FOAM
313WR55X27421 GE Refrigerator Cold Control Harness Socket
314HOUSING COLD CONTROL
315WR02X27312 GE Refrigerator Shelf Pad
316SHIELD DEFLECTOR
317WR01X29190 GE Refrigerator LED Bulb
318SOCKET LIGHT
319WR02X27356 GE White Toe Kick
320WR01X27331 GE Refrigerator Screw 1/4" x 3/4"
321HINGE BOTTOM
322WHEEL MOBILITY ASM RH
323WR02X27362 GE Refrigerator Left-Hand Wheel Mobility Assembly
324LEVELING LEG
325LIGHT COVER
