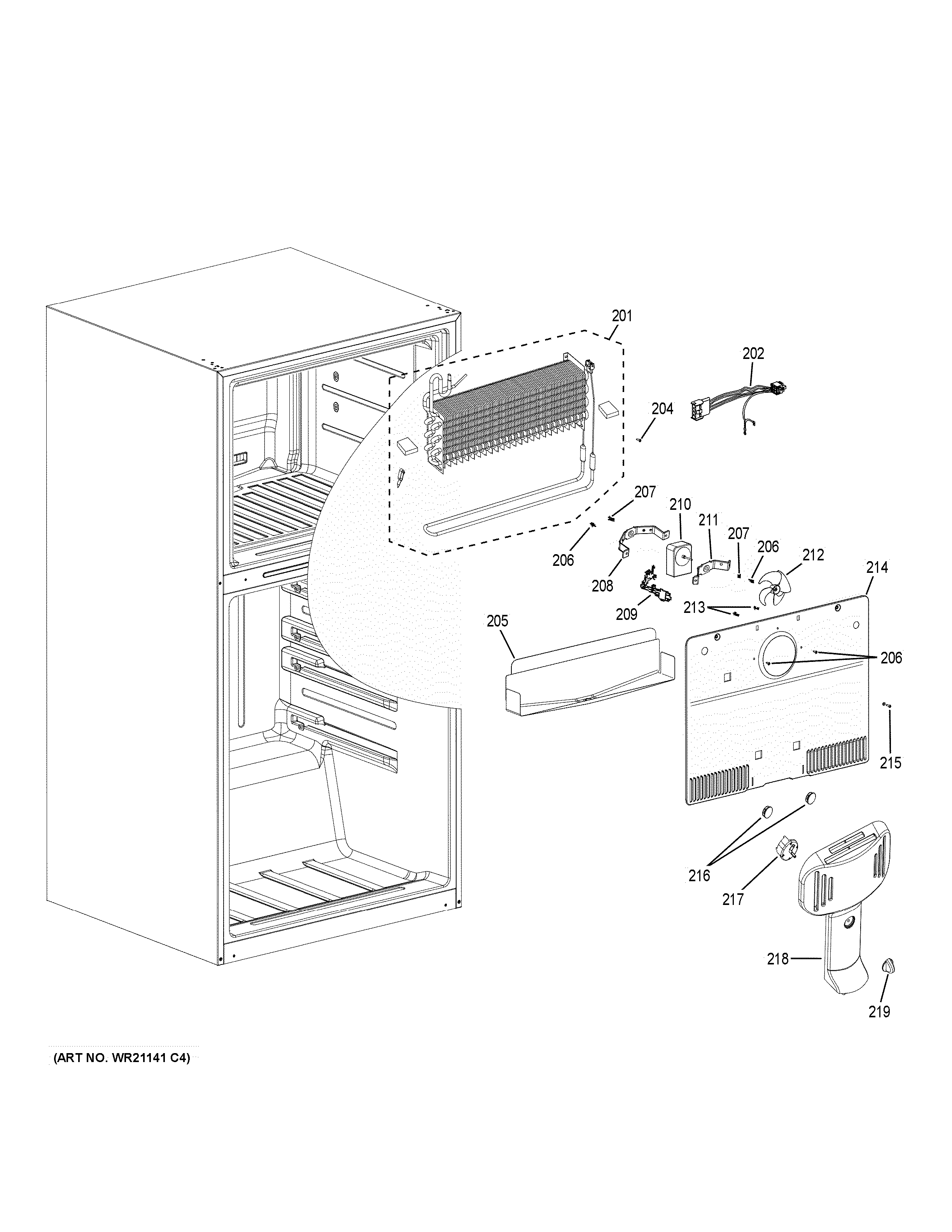

GTS18FMLBES FREEZER SECTION

GTS18FMLBES FREEZER SECTION

Written by

in

GTS18FMLBES FREEZER SECTION

Products

PositionProduct
201WR87X29186 GE Evaporator and Heater
202WR55X27420 GE Refrigerator Defrost Cable
204SCREW #8 X 5/8"
205DEFROST DRAIN TRAY
206SCREW #8-32 X 3/8"
207WR01X27302 GE Ground Screw Star Washer
208WR02X27278 GE Refrigerator Rear Evaporator Fan Bracket
209JUMPER MOTOR EVAP FAN
210WR60X27314 GE Refrigerator Evaporator Fan Motor
211WR02X27926 GE Refrigerator Inner Evaporator Fan Bracket
212WR60X27275 GE Refrigerator Evaporator Fan
213SCREW #8 X 3/8"
214EVAPORATOR COVER
215EVAP COVER SCREW & WASHER
216WR01X27320 GE Refrigerator Plug Button
217WR02X27610 GE Refrigerator IM Receptacle Cover
218WR14X27927 GE Refrigerator Air Tower Assembly
219WR02X27311 GE Refrigerator REFR. Freezer Air Vent Knob
