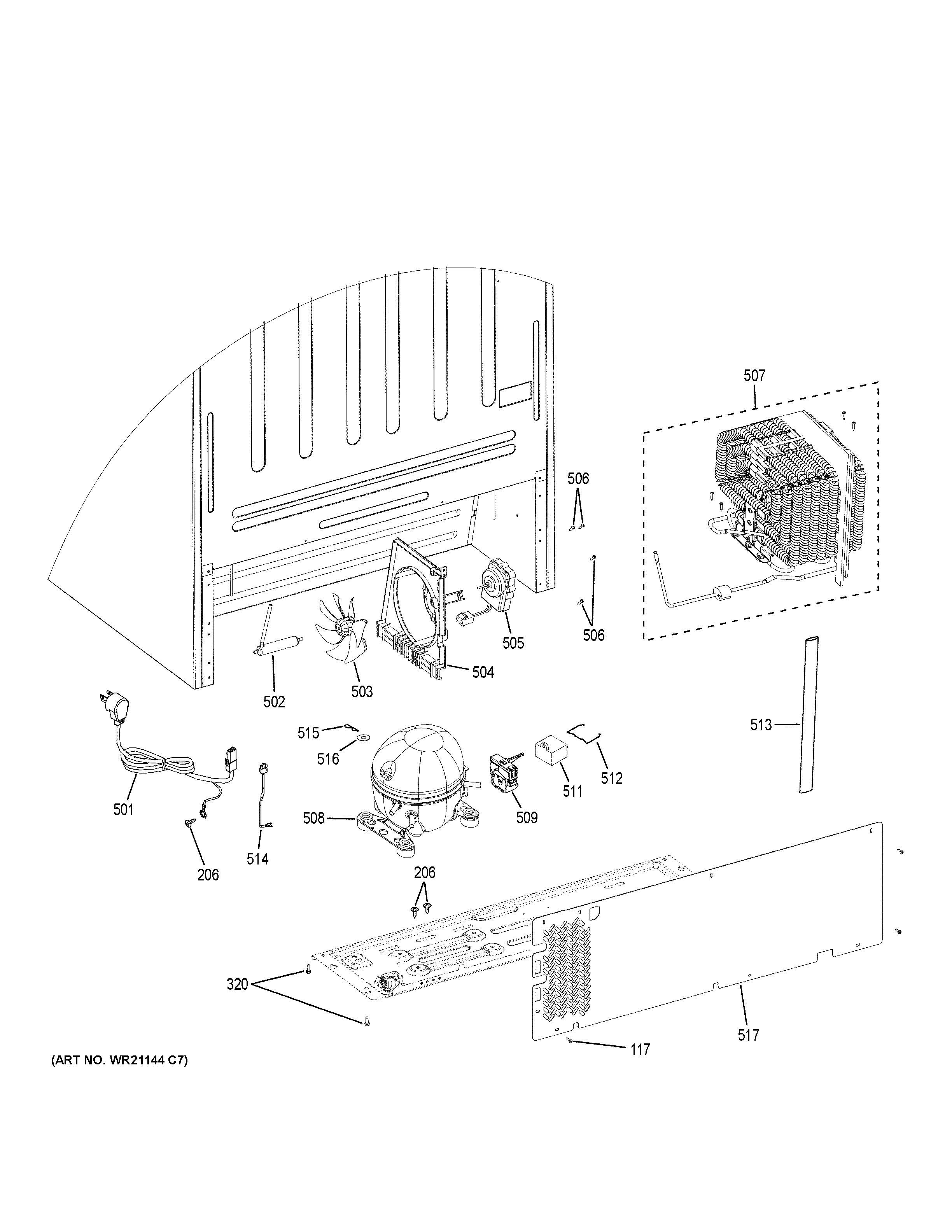

GTS18FMLDES MACHINE COMPARTMENT

GTS18FMLDES MACHINE COMPARTMENT

Written by

in

GTS18FMLDES MACHINE COMPARTMENT

Products

PositionProduct
117WR01X27330 GE Refrigerator Screw #8 x 9/16"
206WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
320WR01X27331 GE Refrigerator Screw 1/4" x 3/4"
501WR55X30410 GE Refrigerator Power Cord
502WR86X25269 GE Refrigerator R134 Dryer
503WR60X27274 GE Refrigerator Condenser Fan Blade Assembly
504WR02X27276 GE Refrigerator Bracket Condenser Fan
505WR60X27315 GE Refrigerator Condenser Motor
506SCREW 3.9MM X 11MM
507CONDENSER FORMED ASM
508WR87X33165 GE Refrigerator Compressor
509WR55X27418 GE Refrigerator TSD Without BALE Strap
511WR55X24064 GE Refrigerator Run Capacitor
512WR02X22564 GE Clip Retainer Combo
513WR02X27297 GE Drain Tube Extension
514WR55X30411 GE Compressor Jumper Cable
515PIN COMPRESSOR
516WR02X27433 GE Washer Compressor
517REAR ACCESS COVER
