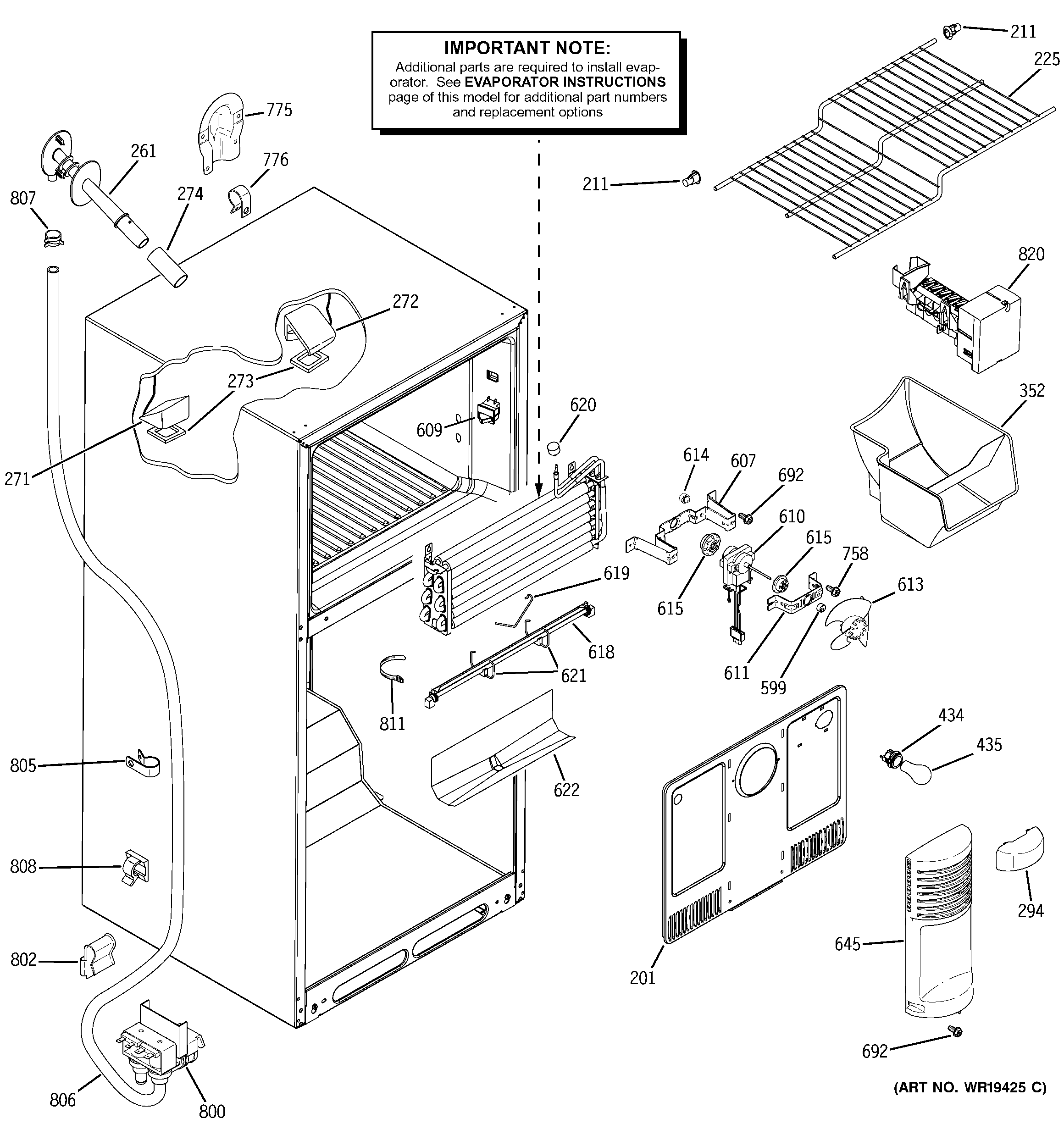

GTS18KHPCRWW FREEZER SECTION

GTS18KHPCRWW FREEZER SECTION

Written by

in

GTS18KHPCRWW FREEZER SECTION

Products

PositionProduct
201GEN WR17X11643
211GEN WR02X7973
225GEN WR71X10522
261GEN WR02X10804
271GEN WR02X10718
272GEN WR02X10719
273GEN WR14X10077
274GEN WR02X10768
294GEN WR02X11568
352WR30X10154 GE Refrigerator Ice Bucket Assembly
434WR02X10591 GE Light Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
599WR02X12149 GE Refrigerator Ring
607GEN WR02X11582
609WR23X37285 GE Light Switch
610WR60X21887 GE Refrigerator AC DC Motor Evaporator Fan
611WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
613BLADE EVAP FAN ASM
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619WR51X10052 GE Refrigerator Heater Condition
620WR50X10025 GE Refrigerator Defrost Thermostat Terminator
621WR02X10518 GE Refrigerator Element Holder
622WR17X26031 GE Refrigerator Trough Drain
645WR17X11521 GE Refrigerator Tower Bottom
692SCREW
758WD2X323D GE Dishwasher Screw Package
775WR17X10796 GE Refrigerator Water Line Cover
776WR02X10522 GE Refrigerator Clamp Tube
800GEN WR57X10047
802GEN WR01X1360
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11625 GE Refrigerator Plastic Tube
807WR02X11437 GE Refrigerator Clamp
808WR2X4039 GE Refrigerator Clamp
811WH01X10704 GE Wire Tie
820WR30X10093 GE Refrigerator Ice Maker
