GTS18SHXARSS FRESH FOOD SECTION

GTS18SHXARSS FRESH FOOD SECTION

Written by

in

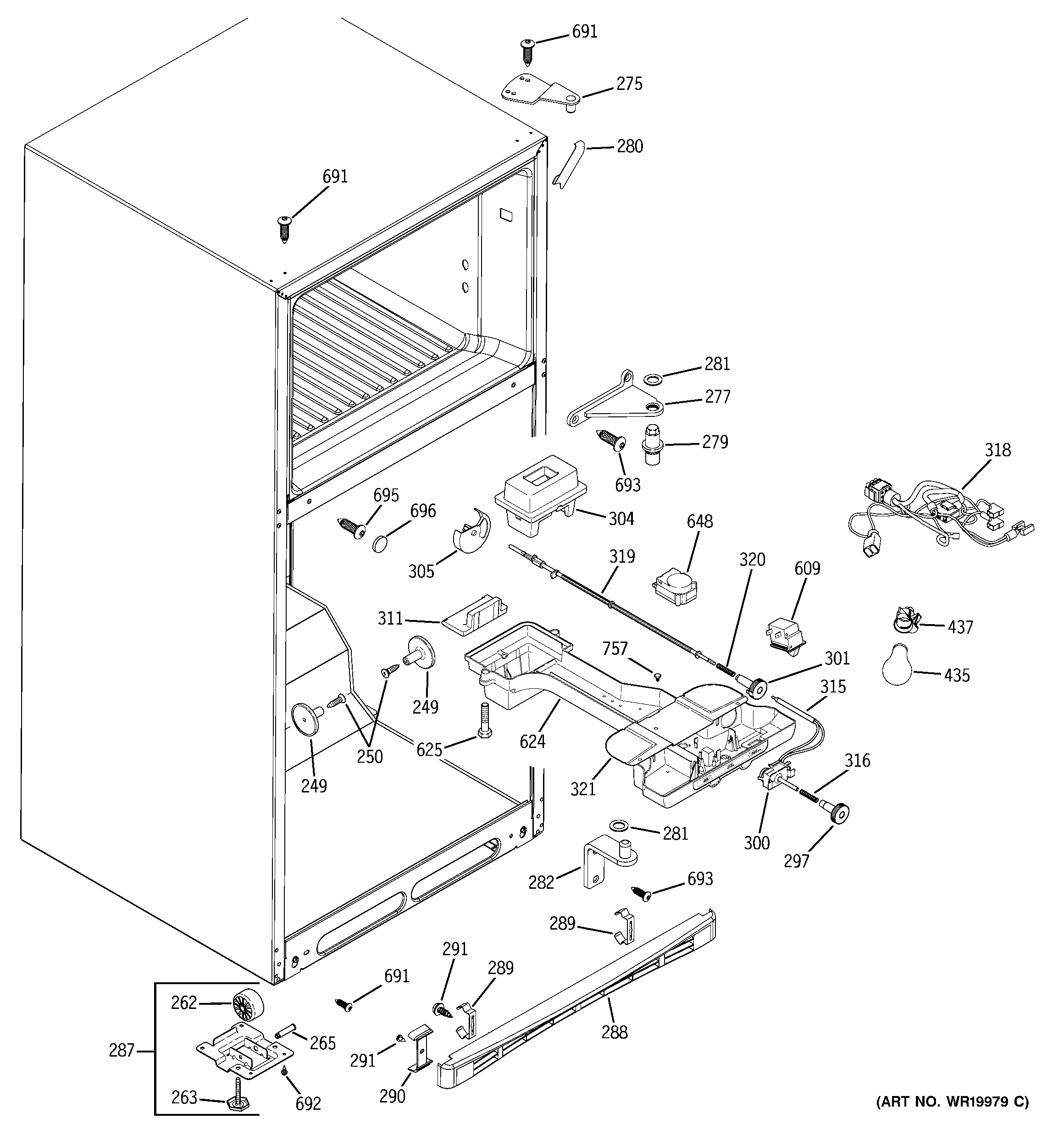

GTS18SHXARSS FRESH FOOD SECTION

Products

PositionProduct
249WR02X11775 GE Refrigerator Support Vegetable Pan
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
262WR02X10480 GE Refrigerator Mobility Wheel
263WR2X7877 GE Refrigerator Slider Adjuster
265GEN WR01X10039
275GEN WR13X10232
277GEN WR13X10317
279GEN WR13X0587
280WR02X10749 GE Refrigerator Black Corner Cap
281WASHER HINGE
282GEN WR13X10145
287GEN WR02X12233
288WR74X10066 GE Refrigerator Base Grille
289GEN WR02X12264
290GEN WR02X10750
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
297WR02X11860 GE Refrigerator Thumb Control Knob
300WR09X26874 GE Refrigerator Temperature Control
301GEN WR02X11861
304GEN WR02X10723
305WR02X11583 GE Refrigerator Wheel Damper
311WR02X10709 GE Refrigerator Block Foam Control
315GEN WR02X11006
316WR02X11632 GE Refrigerator Spacer Shaft Temp Control
318GEN WR23X10390
319WR02X10727 GE Refrigerator Damper Shaft
320GEN WR01X10220
321WR02X11858 GE Refrigerator Reflector Shield
435RANGE ONLY 40W 120V APPL BULB
437WR02X10591 GE Light Socket and Terminal
609WR23X37285 GE Light Switch
624GEN WR17X11716
625GEN WR01X10425
648DEFROST CONTROL
691SCREW 12-24 BK
692SCREW
693SCREW 12-24 BK
695WR01X26527 GE Refrigerator Screw 12-24 TT PNPSD .785
696GEN WR02X10845
757GEN WR01X2035
