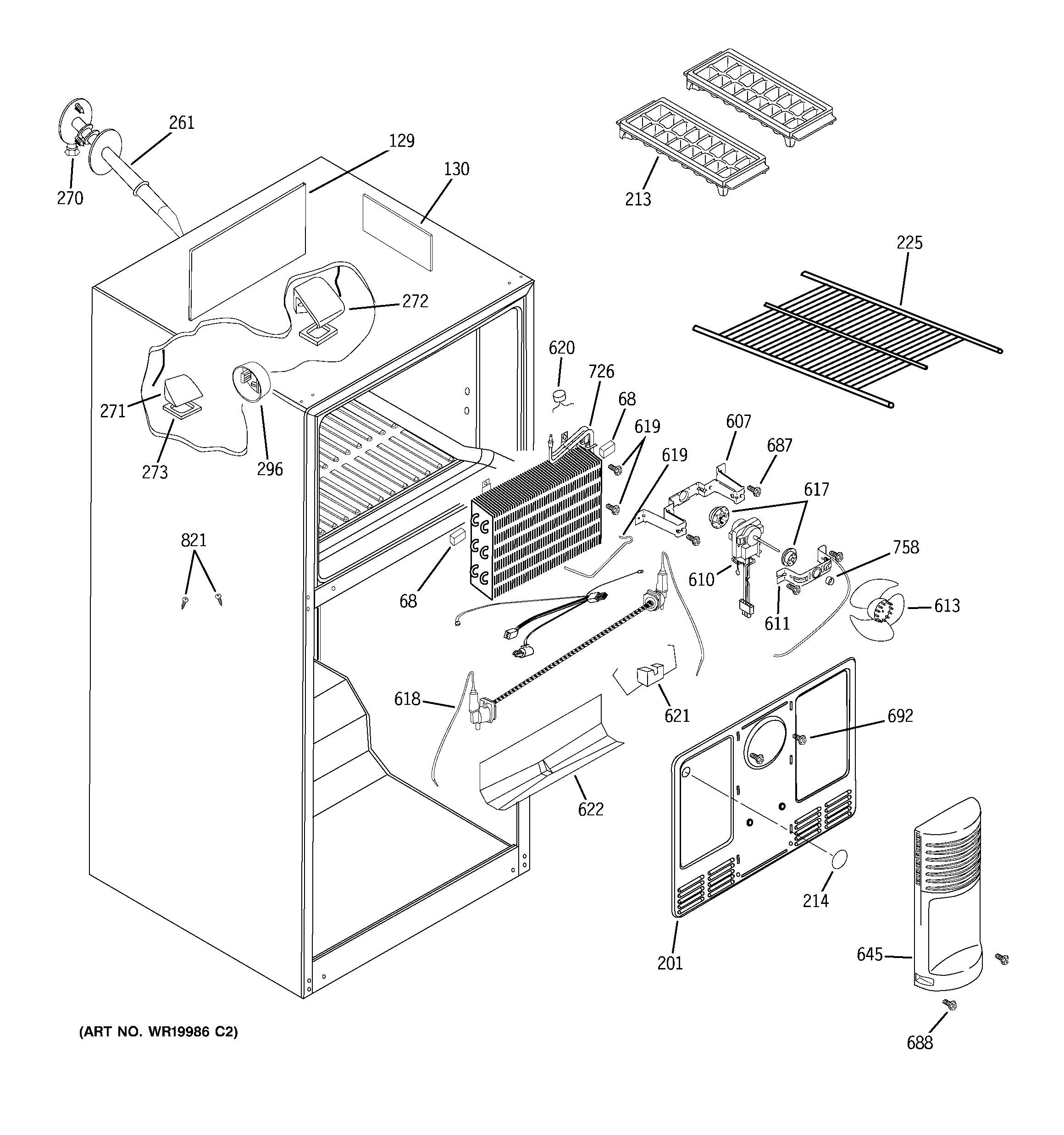

GTS18TBSACC FREEZER SECTION

GTS18TBSACC FREEZER SECTION

Written by

in

GTS18TBSACC FREEZER SECTION

Products

PositionProduct
68GEN WR14X10157
129FOAM REFLECTOR
130AIR RETURN COVER
201GEN WR17X12048
213TRAY ICE
214PLUG BUTTON
225SHELF ASM FZ
261GROMMET WATER FILL ASM
270PLUG BUTTON WATER FILL
271HOOD RETURN DUCT FF
272HOOD RETURN DUCT FF
273GASKET HOOD
296COVER IM RECEPTACLE
607BRACKET EVAP FAN LARGE
610WR60X10172 GE Evaporator Fan Motor
611MOTOR FIX HOLDER
613BLADE EVAP FAN
617GROMMET MOTOR
618DEFROST HEATER
619CONDUCTOR HEAT
620THERMOSTAT DEF
621HOLDER ELEMENT
622TROUGH DRAIN
645TOWER BOTTOM FZ
687SCREW
688AIR TOWER SCREW
692EV COVER SCREW
726LOW SIDE ASM
758FAN SPRING
821IM MOUNTING SCREW
