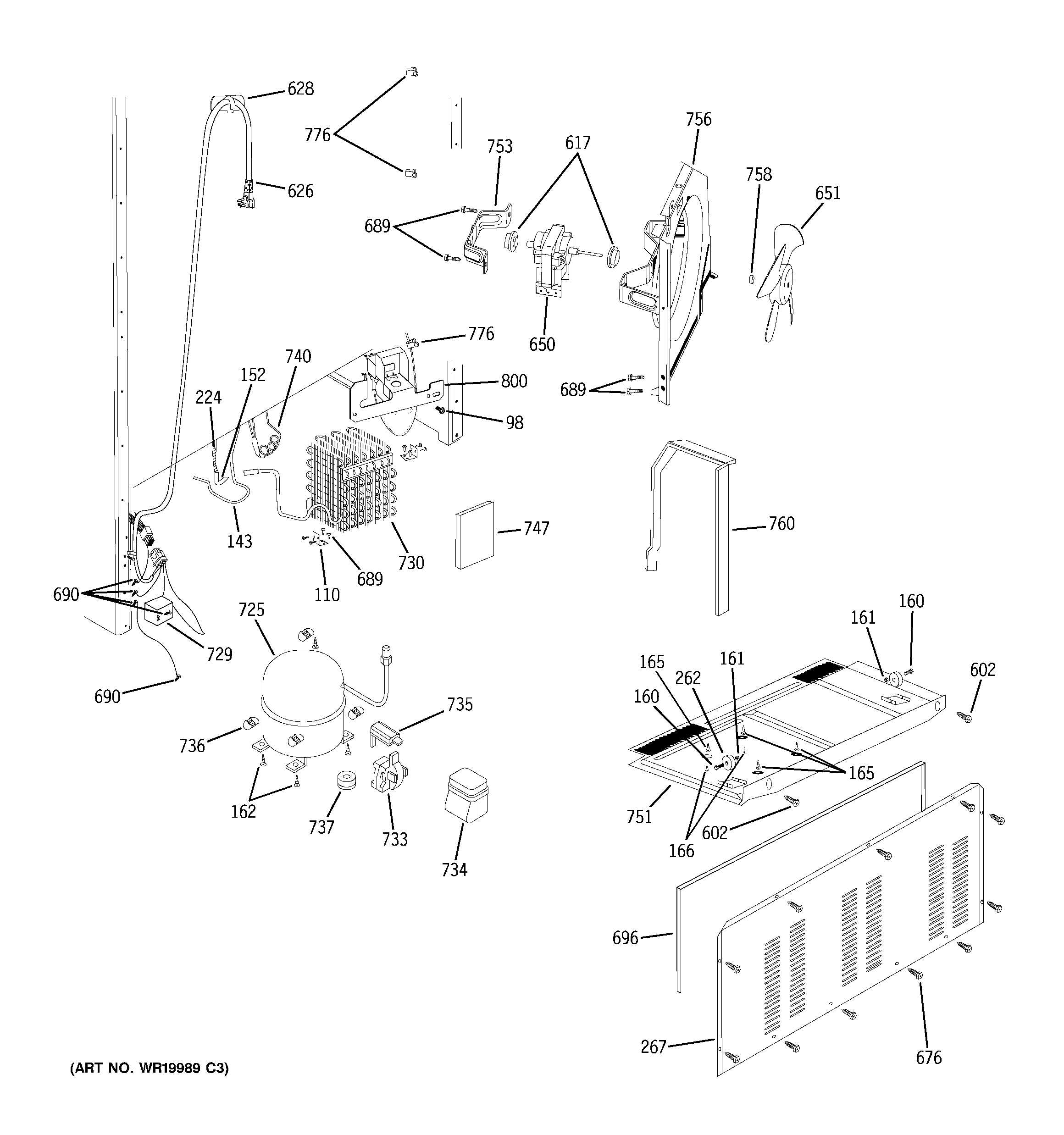

GTS18TCSABB UNIT PARTS

Products

PositionProduct
98GEN WR01X10545
110CONDENSOR FIX HOLDER
143SUCTION JUMPER
152CONNECTOR TUBE
160REAR WHEEL NUT
161REAR WHEEL BOLT
162COMPRESSOR FIX SCREW
165STUD COMP MTG W/NUT
166SPRING WASHER
224DRAIN PIPE
262WHEEL MOBILITY
267COMPRESSOR COVER PLATE
602BASE PLATE SCREW
617GROMMET MOTOR
626POWER CORD
628CLAMP CABLE
650MOTOR COND FAN
651BLADE COND FAN
676COMP COVER SCREW
689MOTOR SHELF SCREW
690EV COVER SCREW
696FOAM STRIP
725WR87X10224 GE Refrigerator Compressor Kit EGYS60
729GEN WR62X10057
730CONDENSER
733WR07X10057 GE Refrigerator PTCR
734GEN WR02X12323
735GEN WR08X10081
736COMP MTG CLIP
737GROMMET COMP MTG
740WR86X25269 GE Refrigerator R134 Dryer
747INSULATION SIDE
751BASE PLATE
753BRACKET FAN BTM
756HOUSING COND FAN
758FAN SPRING
760FOAM STRIP SE ADH
776GEN WR02X12167
800WR57X10033 GE Refrigerator Water Inlet Fill Valve
