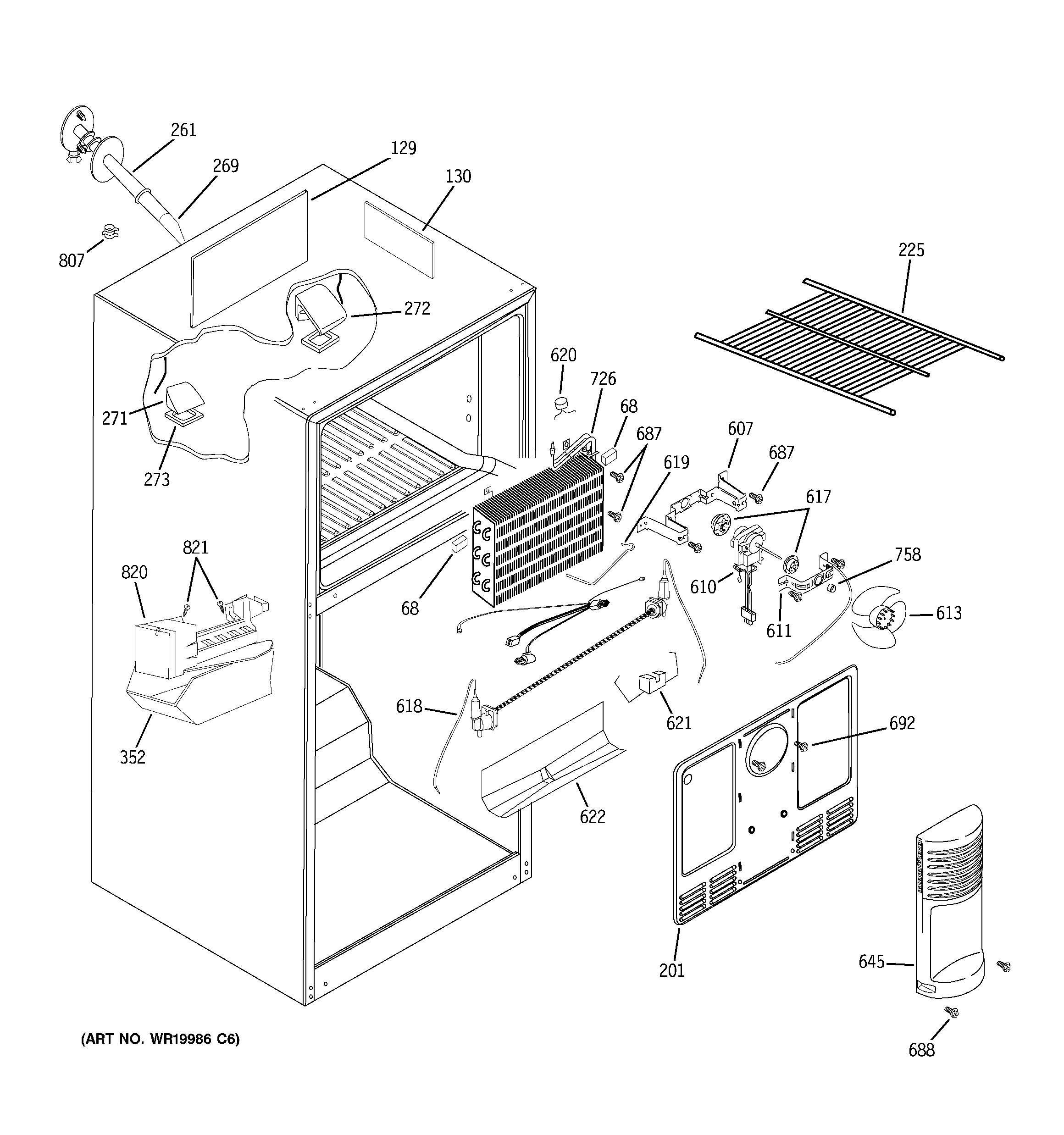

GTS18TCSBWW FREEZER SECTION

GTS18TCSBWW FREEZER SECTION

Written by

in

GTS18TCSBWW FREEZER SECTION

Products

PositionProduct
68GEN WR14X10157
129FOAM REFLECTOR
130AIR RETURN COVER
201EVAP COVER
225SHELF ASM FZ
261GROMMET WATER FILL ASM
269EXTENSION IM FILL TUBE
271HOOD RETURN DUCT FF
272HOOD RETURN DUCT FF
273GASKET HOOD
352WR30X10154 GE Refrigerator Ice Bucket Assembly
607BRACKET EVAP FAN LARGE
610WR60X10172 GE Evaporator Fan Motor
611MOTOR FIX HOLDER
613BLADE EVAP FAN
617GROMMET MOTOR
618DEFROST HEATER
619CONDUCTOR HEAT
620THERMOSTAT DEF
621HOLDER ELEMENT
622TROUGH DRAIN
645TOWER BOTTOM FZ
687SCREW
688AIR TOWER SCREW
692EV COVER SCREW
726LOW SIDE ASM
758FAN SPRING
807GEN WR02X12166
820WR30X10093 GE Refrigerator Ice Maker
821IM MOUNTING SCREW
