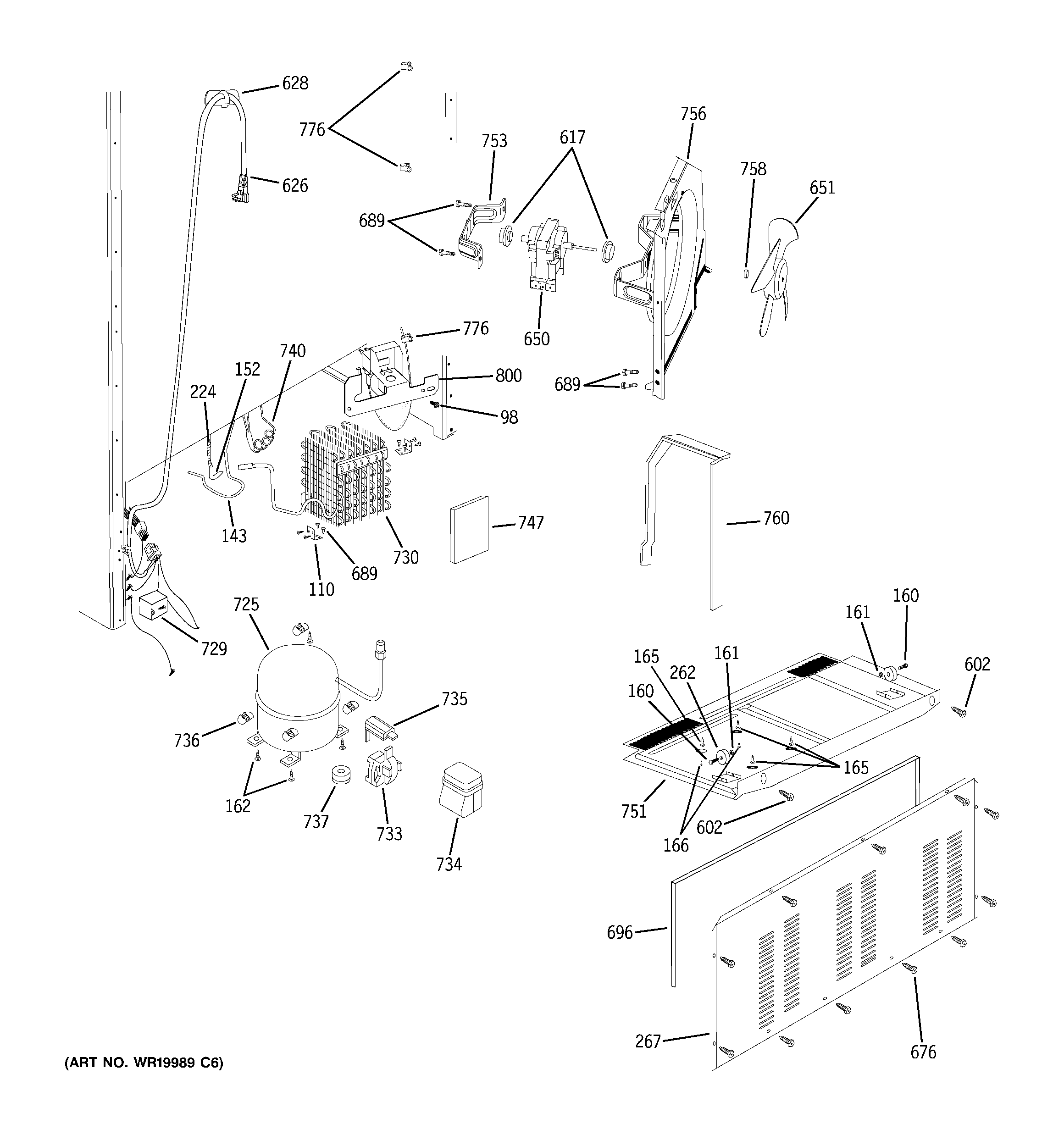

GTS18TCSBWW UNIT PARTS

Products

Position	Product
98	GEN WR01X10545
110	CONDENSOR FIX HOLDER
143	SUCTION JUMPER
152	CONNECTOR TUBE
160	REAR WHEEL NUT
161	REAR WHEEL BOLT
162	COMPRESSOR FIX SCREW
165	STUD COMP MTG W/NUT
166	SPRING WASHER
224	DRAIN PIPE
262	WHEEL MOBILITY
267	COMPRESSOR COVER PLATE
602	BASE PLATE SCREW
617	GROMMET MOTOR
626	POWER CORD
628	CLAMP CABLE
650	MOTOR COND FAN
651	BLADE COND FAN
676	COMP COVER SCREW
689	MOTOR SHELF SCREW
696	FOAM STRIP
725	WR87X10224 GE Refrigerator Compressor Kit EGYS60
729	GEN WR62X10057
730	CONDENSER
733	WR07X10057 GE Refrigerator PTCR
734	GEN WR02X12323
735	GEN WR08X10081
736	COMP MTG CLIP
737	GROMMET COMP MTG
740	WR86X25269 GE Refrigerator R134 Dryer
747	INSULATION SIDE
751	GEN WR17X12268
753	BRACKET FAN BTM
756	HOUSING COND FAN
758	FAN SPRING
760	FOAM STRIP SE ADH
776	GEN WR02X12167
800	WR57X10033 GE Refrigerator Water Inlet Fill Valve
