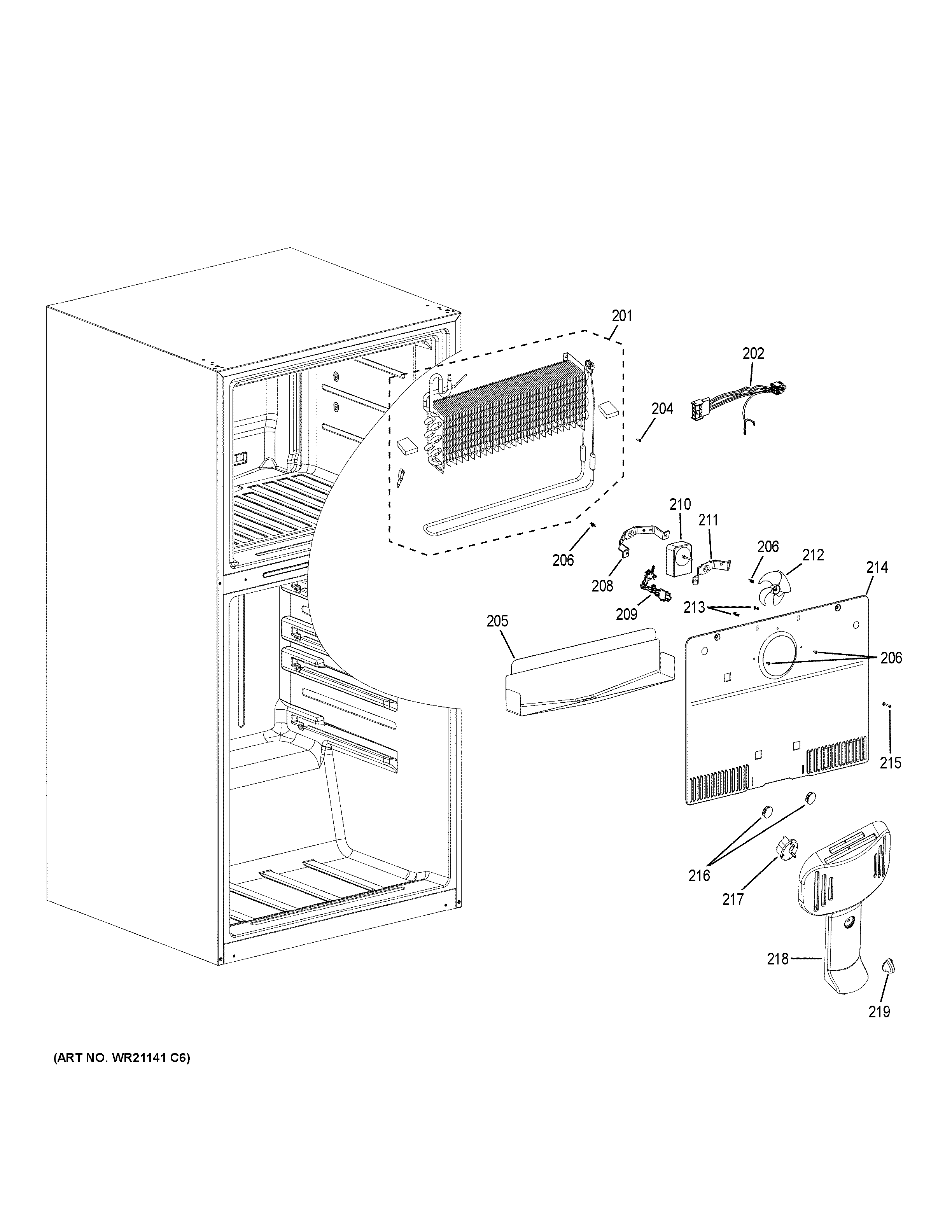

GTS21FSKFSS FREEZER SECTION

GTS21FSKFSS FREEZER SECTION

Written by

in

GTS21FSKFSS FREEZER SECTION

Products

PositionProduct
201WR87X30286 GE Refrigerator Evaporator
202WR55X27420 GE Refrigerator Defrost Cable
204SCREW #8 X 5/8"
205DRAIN TROUGH EVAPORATOR
206WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
208WR02X27278 GE Refrigerator Rear Evaporator Fan Bracket
209WR55X30409 GE Evaporator Fan Motor Jumper
210WR60X27314 GE Refrigerator Evaporator Fan Motor
211WR02X27926 GE Refrigerator Inner Evaporator Fan Bracket
212WR60X27275 GE Refrigerator Evaporator Fan
213SCREW #8 X 3/8"
214WR17X27439 GE 21 Evaporator Cover with Seal
215EVAP COVER SCREW & WASHER
216WR01X27320 GE Refrigerator Plug Button
217WR01X29552 GE Ice Maker Socket Cover
218WR14X27927 GE Refrigerator Air Tower Assembly
219WR02X27311 GE Refrigerator REFR. Freezer Air Vent Knob
