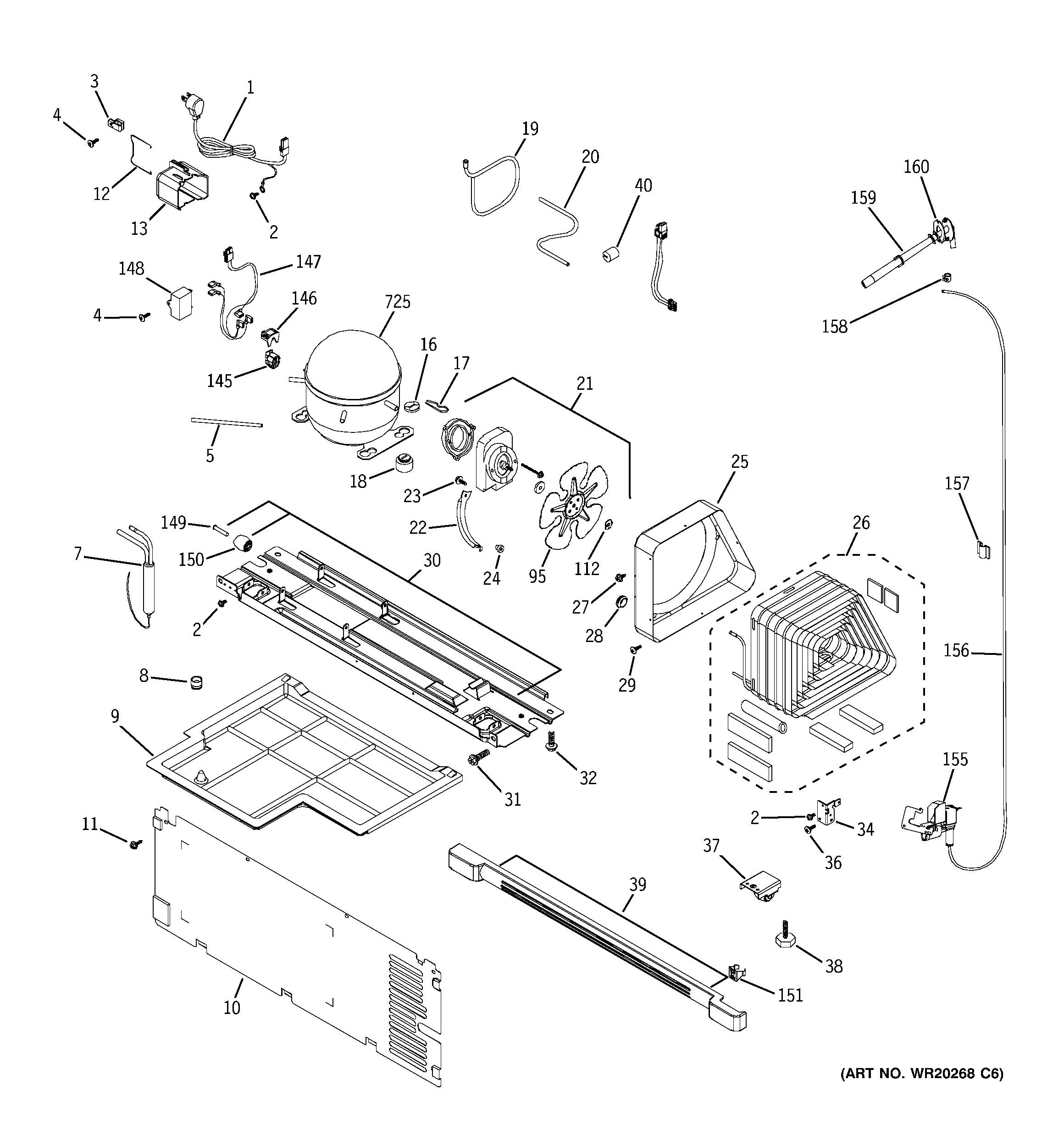

GTS21KCXABB UNIT PARTS

Products

Position	Product
1	POWER CORD ASM
2	SCREW MACHINE
3	FIXTURE POWER CORD
4	SCREW TAPPING
5	PIPE SVC
7	DRYER
8	GEN WR02X12524
9	CASE VAPORI
10	GRILLE
11	GEN 7112401211
12	GEN WR02X12496
13	GEN WR32X10631
16	SPECIAL WASHER COMP
17	SPRING WASHER COMP
18	ABSORBER COMP
19	PIPE SUC CONN
20	PIPE CONN DEL
21	GEN WR60X10278
22	FRAME MOTOR C
23	WR01X10707 GE Special C Motor Bolt
24	ABSORBER C FAN MOTOR
25	GEN WR02X12521
26	GEN WR84X10084
27	SPECIAL WICON BOLT
28	BUSHING PIPE
29	GEN 7112400811
30	BASE COMP SAS
31	SPECIAL BOLT
32	SPECIAL BOLT
34	BRACKET VALVE
36	GEN 7122401211
37	CASTER FZ ASM
38	FOOT ADJUST ASM
39	WR32X10635 GE Refrigerator Cover CAB Bracket Assembly
39	GEN WR32X10643
40	ABSORBER PIPE B
95	GEN WR02X12498
112	GEN WR01X10695
145	GEN WR07X10100
146	GEN WR07X10101
147	HARNESS P RELAY ASM
148	GEN WR62X10062
149	SHAFT CASTR
150	WR02X12541 GE Refrigerator Caster
151	SPRING CAB BRKT COVR
155	WR57X10033 GE Refrigerator Water Inlet Fill Valve
156	HOSE WATER
157	GUIDE WATER HOSE
158	CLAMP WATER HOSE
159	TUBE WATER FILL
160	SEAL TUBE WATER FILL
725	WR87X20798 GE Refrigerator High Side Assembly
