GTS22KCPBRCC FREEZER SECTION

GTS22KCPBRCC FREEZER SECTION

Written by

in

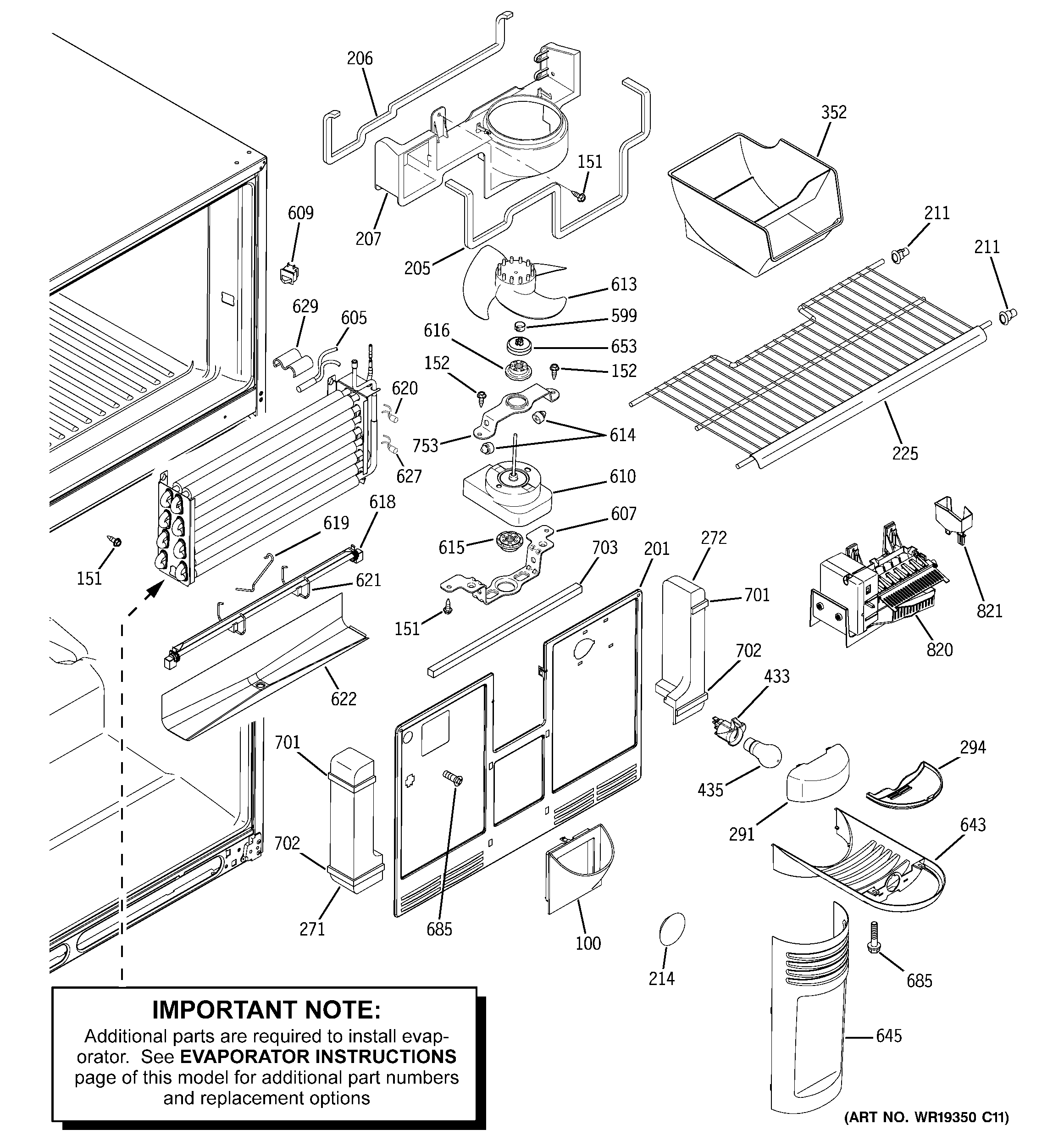

GTS22KCPBRCC FREEZER SECTION

Products

PositionProduct
100GEN WR74X10095
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
152WR01X10287 GE Refrigerator Screw 10-32 HX
201GEN WR17X11510
205GEN WR02X11573
206GEN WR14X10123
207FAN EVAP HOUSING
211GEN WR02X7973
214WR02X11760 GE Refrigerator Plug Button
225GEN WR71X10311
271GEN WR02X11569
272GEN WR02X11570
291GEN WR02X11568
294GEN WR02X10966
352WR30X10154 GE Refrigerator Ice Bucket Assembly
433WR2X9391 GE Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
599WR02X12149 GE Refrigerator Ring
605WR55X10025 GE Refrigerator Temperature Sensor
607GEN WR02X11571
609WR23X37285 GE Light Switch
610MOTOR AC/DC FAN
613BLADE EVAP FAN ASM
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
616WR02X11331 GE Refrigerator Grommet
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619WR51X10052 GE Refrigerator Heater Condition
620THERMOSTAT DEF
621WR02X10518 GE Refrigerator Element Holder
622TROUGH DRAIN ASM
627WR50X10068 GE Refrigerator Defrost Thermostat
629WR02X10879 GE Refrigerator Evaporator Thermistor Clip
643GEN WR17X11171
645GEN WR17X11060
653WR02X10322 GE Refrigerator Dust Cap B02
685WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
701WR01X10419 GE Refrigerator Foam Strip SE ADH
702GEN WR01X10420
703GEN WR14X10127
753WR02X10764 GE Refrigerator Evaporator Bracket
820WR30X10093 GE Refrigerator Ice Maker
821WR29X10092 GE Refrigerator Ice Maker Fill Cup
