GTS22KGNBRBB MACHINE COMPARTMENT

GTS22KGNBRBB MACHINE COMPARTMENT

Written by

in

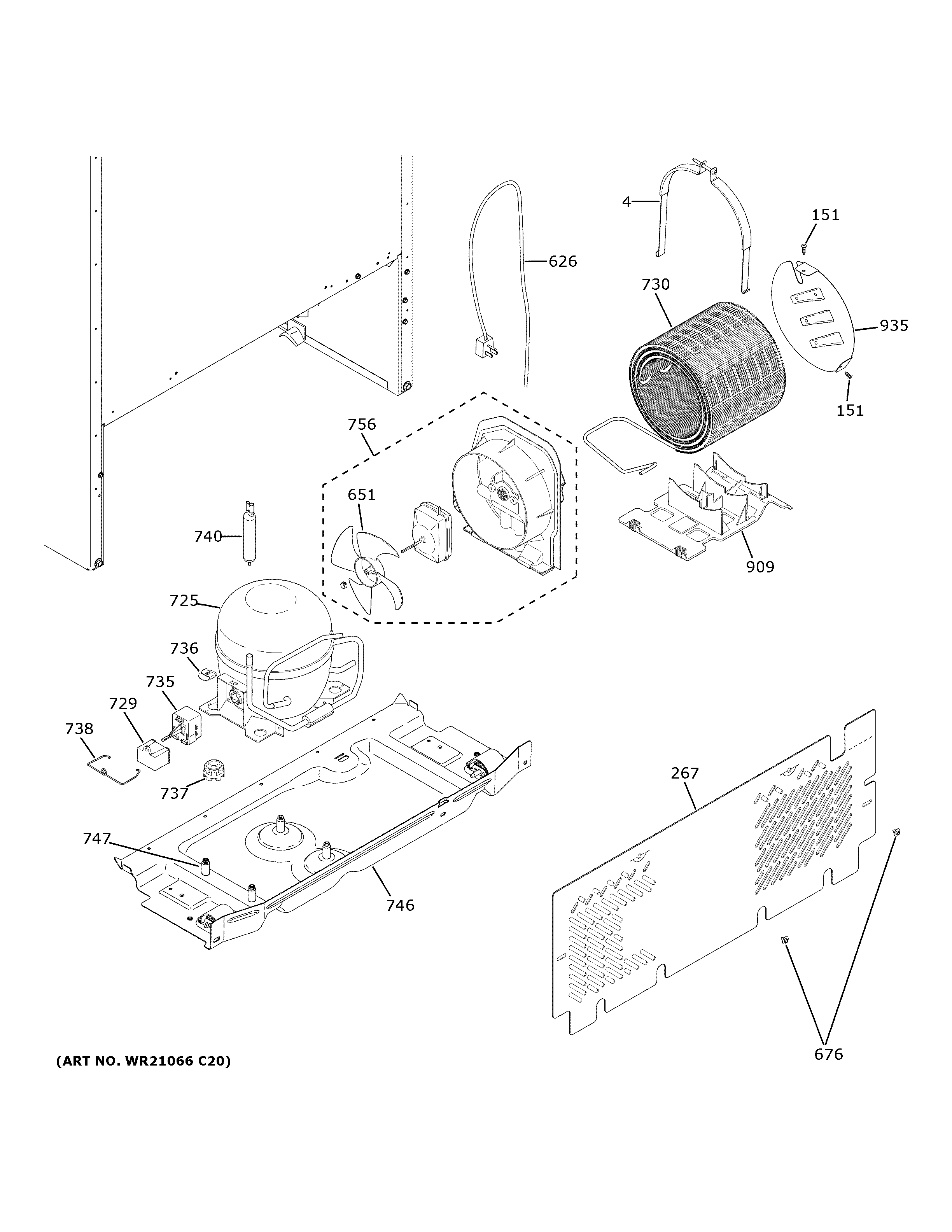

GTS22KGNBRBB MACHINE COMPARTMENT

Products

PositionProduct
4WR01X31130 GE Condenser Strap
151WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
267WR82X31742 GE 33 Rear Access Cover
626WR55X31301 GE Refrigerator Machine Compartment Harness
651WR60X10207 GE Refrigerator Fan Blade
676WD2X5166 GE Dishwasher Screw
725WR87X31765 GE Refrigerator Compressor
729WR55X33686 GE Refrigerator 10 µF Capacitor
730WR84X31398 GE Refrigerator Condenser
735WR49X37585 GE PTCR Combination Kit
736WR02X28781 GE Compressor Mounting Clip
737WR02X22869 GE Refrigerator Grommet
738WR02X26153 GE Refrigerator Clip Retainer
740WR87X30875 GE Refrigerator R600 Dryer with Red Cap
746WR17X33448 GE Refrigerator Base Plate with Compressor Stud
747WR1X1779 GE Refrigerator Stud Mounting Compressor
756WR17X31476 GE Refrigerator Condenser Fan & Housing
909CONDENSER SUPPORT
935CONDENSER BAFFLE
