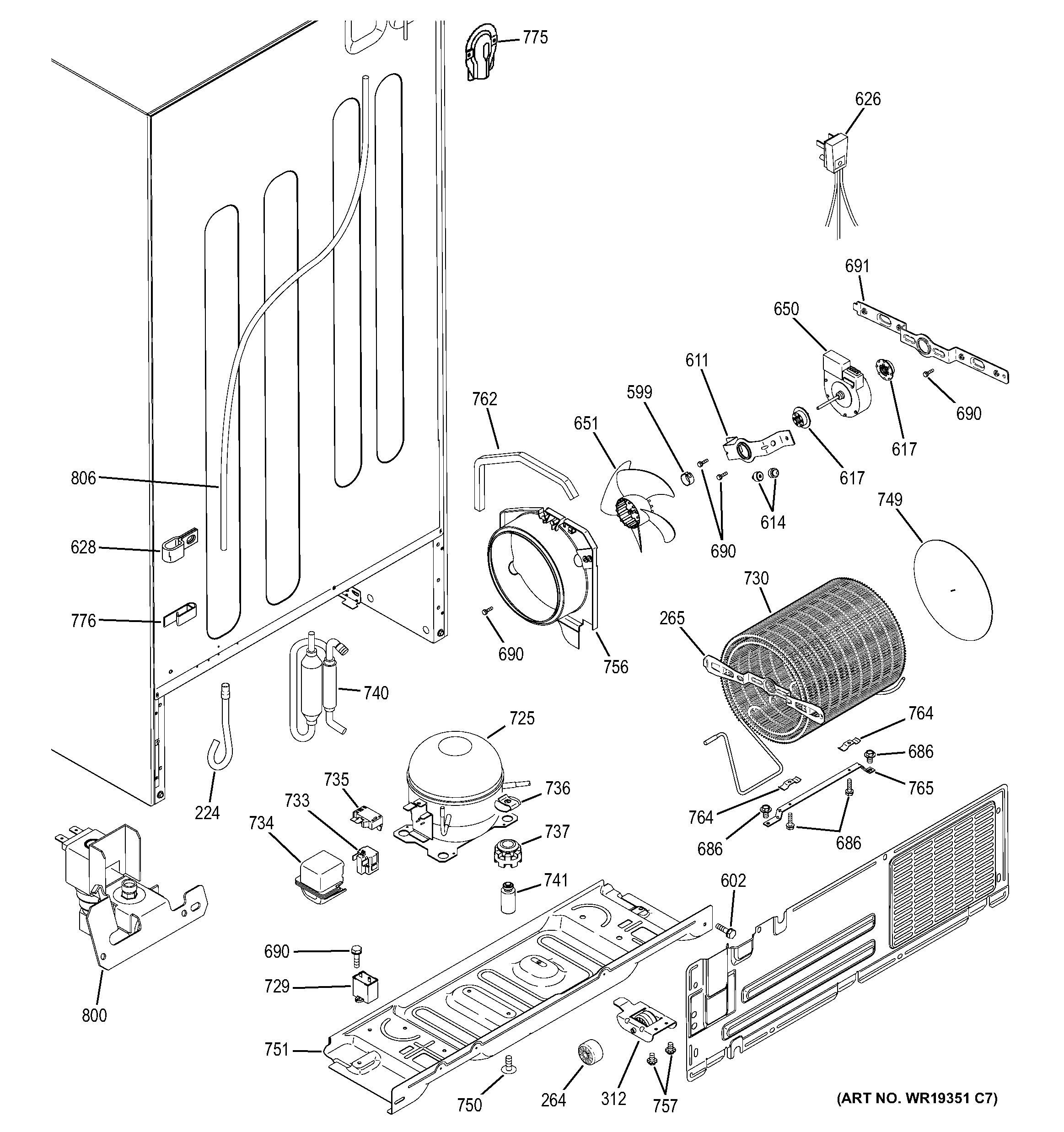

GTS22KHPBRWW UNIT PARTS

GTS22KHPBRWW UNIT PARTS

Written by

in

GTS22KHPBRWW UNIT PARTS

Products

PositionProduct
224TUBE DRAIN
264WR02X10695 GE Refrigerator Wheel
265WR02X11742 GE Refrigerator Bracket Condenser Fan
312WR02X12288 GE Refrigerator Back Mobility Assembly
599WR02X12149 GE Refrigerator Ring
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
611WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
614BUMPER
617WR02X10520 GE Refrigerator Fan Motor Grommet
626GEN WR23X10343
628WR1X5278 GE Refrigerator Cable Clamp
650WR60X10130 GE Refrigerator AC Motor/DC Fan E02
651WR60X24484 GE Refrigerator Condenser Fan Blade
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691GEN WR02X11575
725WR87X20798 GE Refrigerator High Side Assembly
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733WR07X26748 GE Start Relay WB07X26748
734COVER RELAY SNAP EMBRACO
735OVERLOAD
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
756WR17X35527 GE Refrigerator Condenser Fan Shroud
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
775WR17X10796 GE Refrigerator Water Line Cover
776WR02X10522 GE Refrigerator Clamp Tube
800WR57X33326 GE Refrigerator Water Inlet Valve
806WR17X11349 GE Refrigerator Plastic Tube
