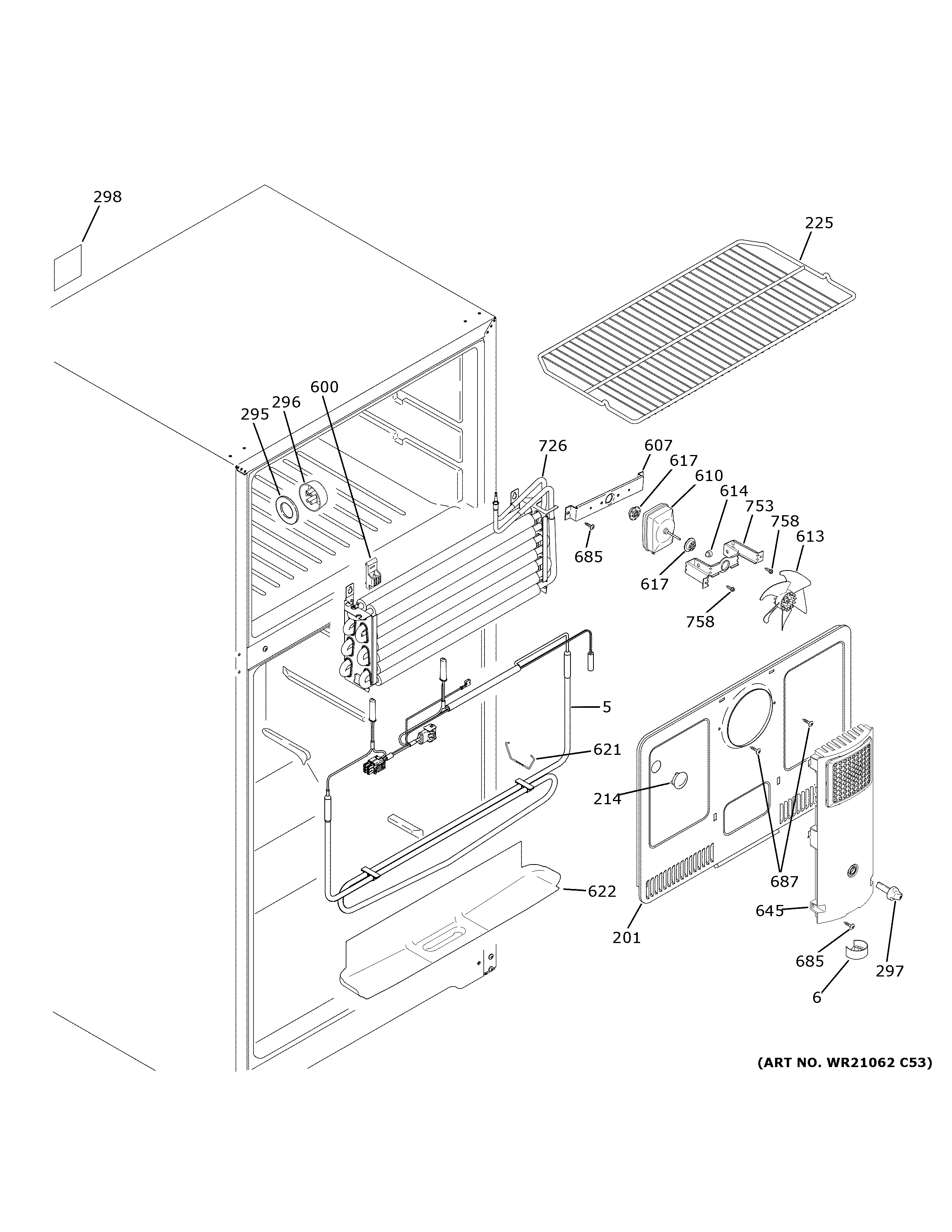

GTS22KMNBRES FREEZER SECTION

GTS22KMNBRES FREEZER SECTION

Written by

in

GTS22KMNBRES FREEZER SECTION

Products

PositionProduct
5WR55X31113 GE Refrigerator Defrost Heater and Harness
6WR02X34325 GE Refrigerator Adjustable Damper
201WR17X31337 GE Refrigerator Evaporator Cover
214WR02X11760 GE Refrigerator Plug Button
225WR71X40770 GE Refrigerator Freezer Glass Shelf 22
295RECEPTACLE COVER GASKET
296WR82X31109 GE Ice Maker Receptacle Cover
297WR02X31466 GE Refrigerator Control Knob
298WR14X31738 GE Fill Tube Port Cover
600WR02X31289 GE Refrigerator Thermal Fuse Clip
607WR21X30022 GE Refrigerator Mounting Bracket
610WR60X31522 GE Refrigerator Evaporator Fan Motor
613WR60X10204 GE Refrigerator Evaporator Fan Blade
614BUMPER
617WR02X12008 GE Refrigerator Evaporator Fan Grommet
621WR02X31293 GE Refrigerator Evaporator Clip
622WR17X30031 GE Refrigerator Drain Trough
645WR17X31469 GE Refrigerator Air Tower with Knob
685WR02X29370 GE Refrigerator Screw 8-18 AB HXW 1/2 S
687WR01X10589 GE Refrigerator Screw 8-15 AB IHXW 1/2"
726WR87X31628 GE Refrigerator Calrod Heater and Evaporator
753WR21X30013 GE Refrigerator Mounting Bracket
758WR01X10860 GE Refrigerator Screw 8-32 TT HXW 3/8 S
