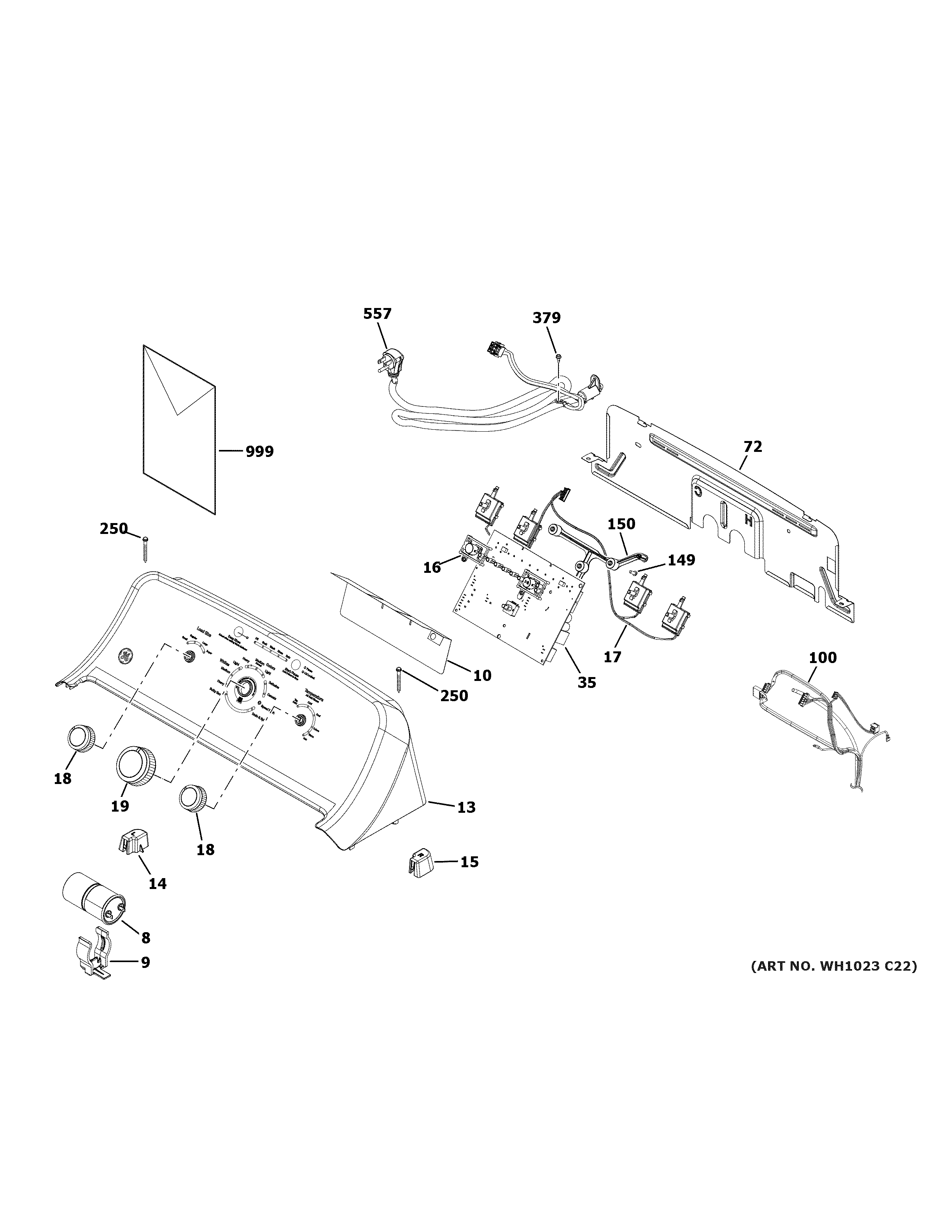

GTW220ACW0WW CONTROLS & BACKSPLASH

Products

Position	Product
8	WH12X27614 GE Capacitor Bracket Kit
10	WH01X24396 GE Control Board Shield
13	WH42X28200 GE Control Panel Assembly
14	WH16X24476 GE Washer Right Backsplash Support
15	WH16X24477 GE Left Backsplash Support
16	WH01X24376 GE Washer Button
17	WH04X29307 GE Selector Switch
18	KNOB ROTARY (HOTPOINT)
19	WH01X25355 GE Main Knob
35	WH22X38438 GE Triac Hardware and Switch Assembly
72	WH10X28195 GE Rear Control Panel
100	WH19X27495 GE Main Green Harness
149	WR01X10196 GE Refrigerator Screw 8-18 HID02
150	WH16X24375 GE Bracket Printed Circuit Board
250	WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
379	WE02X10107 GE Screw 10-32 GX HXW 7/16 S
557	WH08X28843 GE Power Cord
999	PM OWNERS MANUAL
999	PM MINI MANUAL AND WIRING
