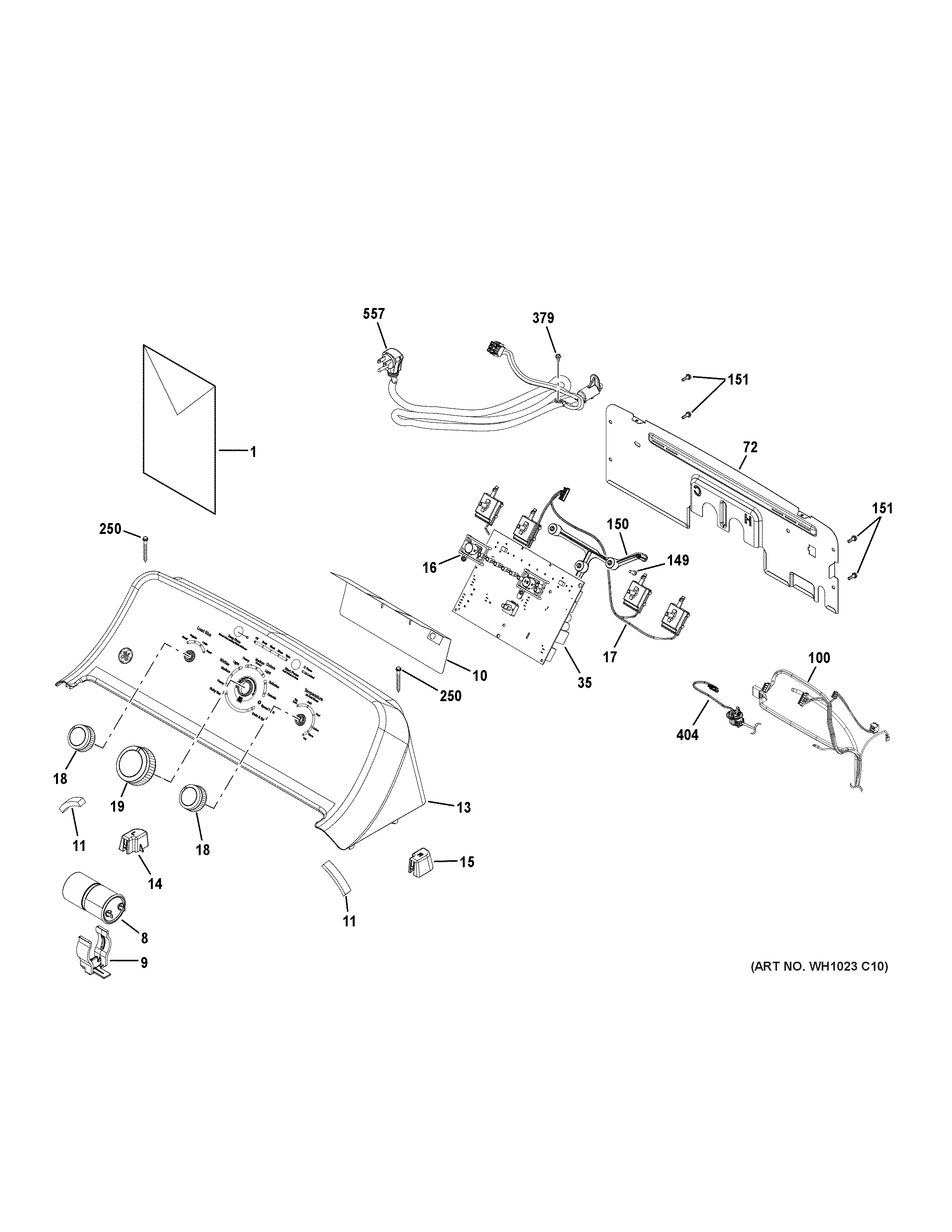

GTW330ASK4WW CONTROLS & BACKSPLASH

GTW330ASK4WW CONTROLS & BACKSPLASH

Written by

in

GTW330ASK4WW CONTROLS & BACKSPLASH

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM INSTALLATION SUPPLEME
1PM MANUAL USE AND CARE
1PM QUICK REFERENCE GUIDE
8WH12X27614 GE Capacitor Bracket Kit
10WH01X24396 GE Control Board Shield
11WH08X24099 GE Backsplash Foam Seal
13WH22X28839 GE White Control Panel
14WH16X24476 GE Washer Right Backsplash Support
15WH16X24477 GE Left Backsplash Support
16WH01X24376 GE Washer Button
17WH04X29307 GE Selector Switch
18KNOB OPTIONS ASM
19WH01X24377 GE Main Knob Assembly
35MAIN CONTROL BOARD W/INSTRUCTI
72WH10X28195 GE Rear Control Panel
100WH19X25299 GE Washer Main Harness
149WR01X10196 GE Refrigerator Screw 8-18 HID02
150WH16X24375 GE Bracket Printed Circuit Board
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
379WE02X10107 GE Screw 10-32 GX HXW 7/16 S
404WH19X24141 GE Washer Wire Harness Lid Lock
557WH08X28843 GE Power Cord
