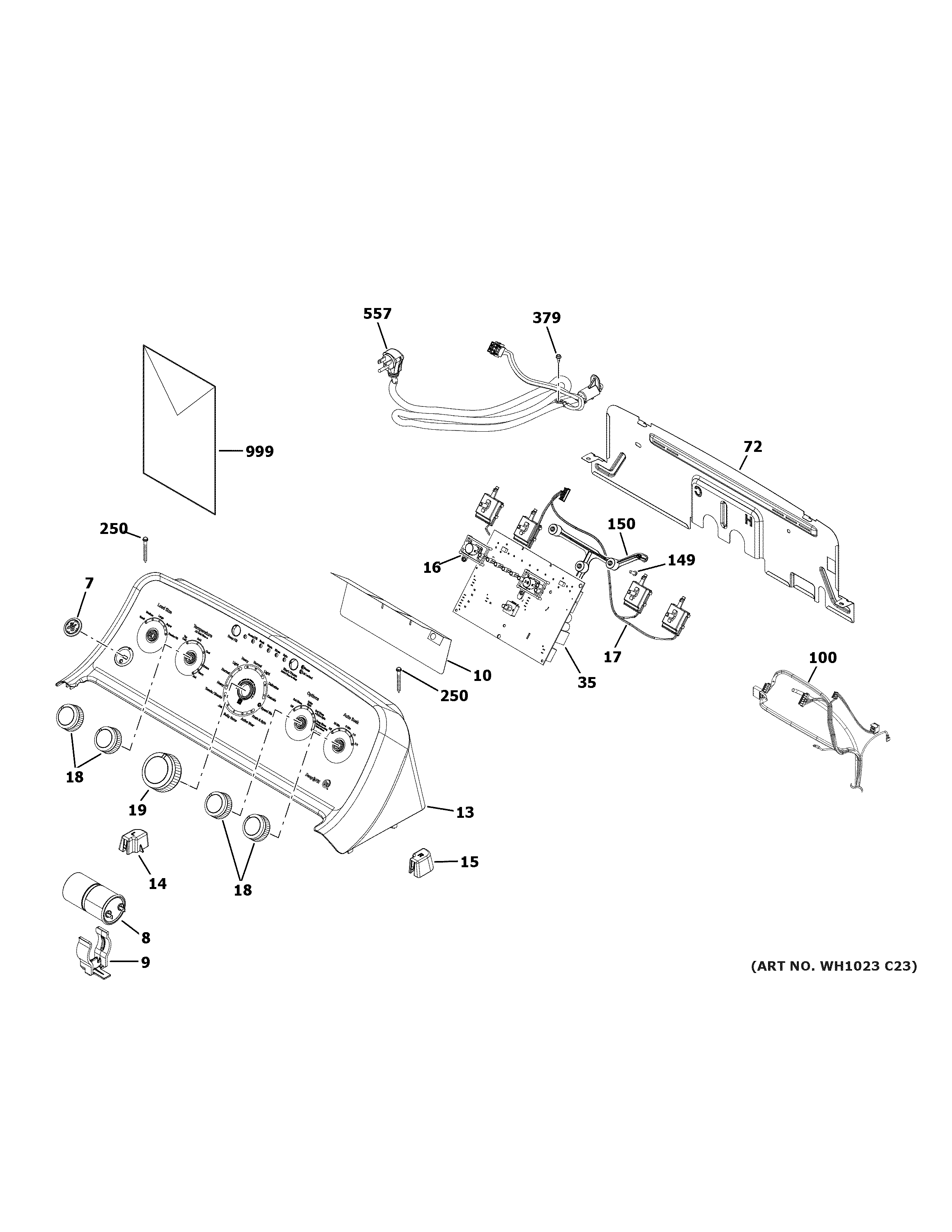

GTW465ASN2WW CONTROLS & BACKSPLASH

GTW465ASN2WW CONTROLS & BACKSPLASH

Written by

in

GTW465ASN2WW CONTROLS & BACKSPLASH

Products

PositionProduct
7WH42X24097 GE Badge
8WH12X27614 GE Capacitor Bracket Kit
10WH01X24396 GE Control Board Shield
13WH22X28844 GE White Control Panel
14WH16X24476 GE Washer Right Backsplash Support
15WH16X24477 GE Left Backsplash Support
16WH01X24376 GE Washer Button
17WH04X29308 GE Selector Switch 4
18KNOB OPTIONS ASM
19WH01X24377 GE Main Knob Assembly
35MAIN CONTROL BOARD W/INSTRUCTI
72WH10X28195 GE Rear Control Panel
100WH19X27495 GE Main Green Harness
149WR01X10196 GE Refrigerator Screw 8-18 HID02
150WH16X24375 GE Bracket Printed Circuit Board
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
379WE02X10107 GE Screw 10-32 GX HXW 7/16 S
557WH08X28843 GE Power Cord
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
