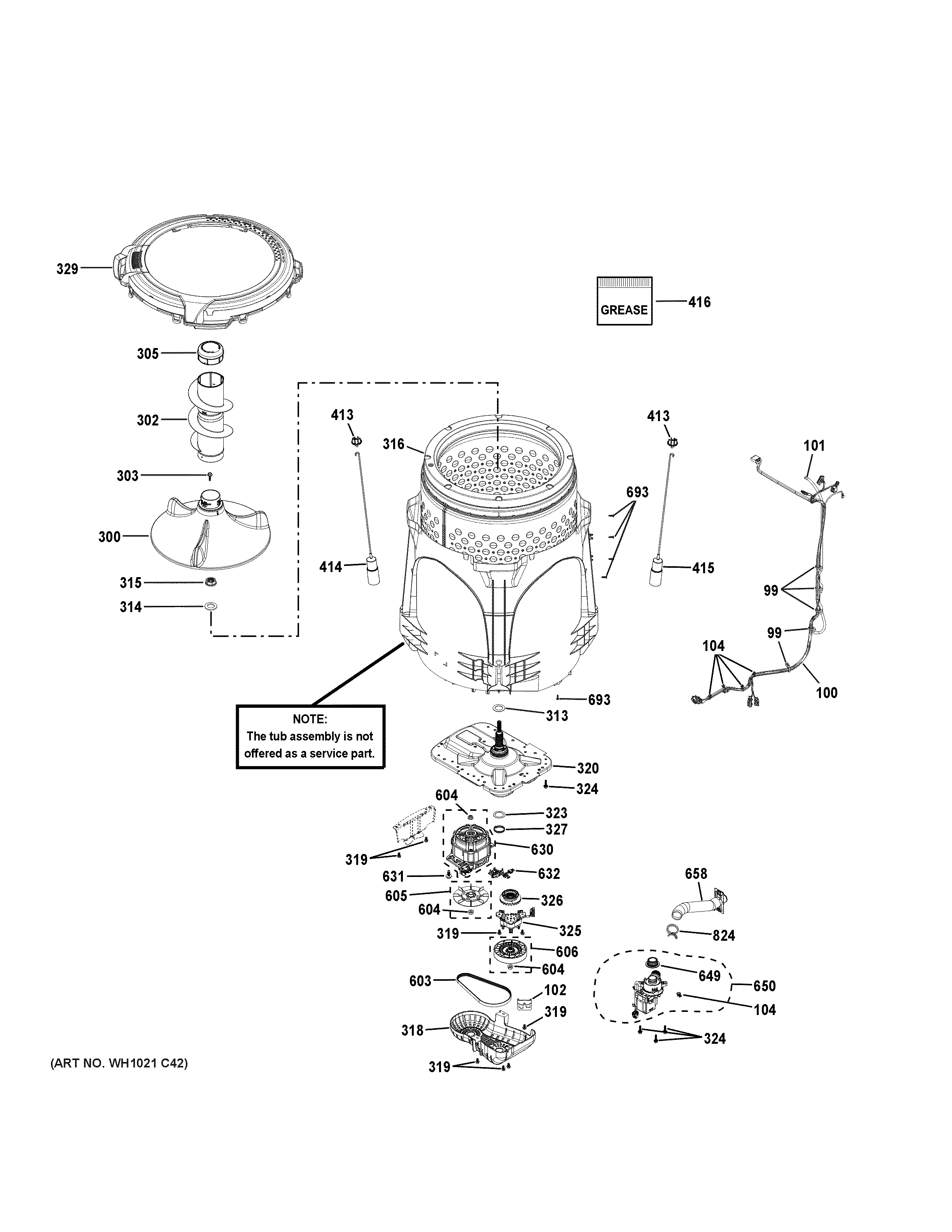

GTW465ASN9WW TUB & MOTOR

GTW465ASN9WW TUB & MOTOR

Written by

in

GTW465ASN9WW TUB & MOTOR

Products

PositionProduct
99WH01X24190 GE Wire Tie Harness
100WH19X27495 GE Main Green Harness
101WH41X24395 GE Pressure Hose
102WH16X24192 GE Dual Harness Connector B
104WH01X10704 GE Wire Tie
300AGITATOR BASE HYBRID ASSEMBLY
302WH43X31240 GE Washer Agitator
303SCR 1/4-20 2A SINULOC
305WH43X24454 GE Washer Fabric Softener Dispenser
313WH02X10364 GE Washer Hub
314WH01X26190 GE Washer Belleville Washer
315WH02X10363 GE Washer Spanner Nut
316WH21X34217 GE Basket Assembly
318BELT PROTECTOR
319WH02X24154 GE Screw 1/4-20 TT HXT
320PLATFORM BEARING RETAINER & FA
323WH01X10759 GE Washer Spring
324WH02X10376 GE Platform Screw
325WH03X30517 GE Shift Actuator
326CLUTCH
327SPRING CLUTCH
329WH44X24150 GE Cover Tub
413WH01X26970 GE Suspension Rod Support
414ROD & SPRING ASM LEFT
415ROD & SPRING ASM RIGHT – GREEN
416WH03X37017 GE Grease
603WH01X27538 GE Washer Drive Belt
604WH02X24417 GE Pulley Nut
6051/3 HP MOTOR PULLEY & NUT
606TRANSMISSION PULLEY & NUT
6301/3 HP MOTOR & NUT
631WH02X34437 GE Scr 5/16-24 Mch Hx 1 Sinuloc
632SPEED SENSOR
649WH08X24179 GE Washer Drain Pump Seal
650PUMP DRAIN ASM
658WH41X24177 GE Washer Internal Drain Hose
693WH02X24057 GE Screw 8-16 Plastite HXW 5/8
824WH01X24494 GE Washer Clamp
