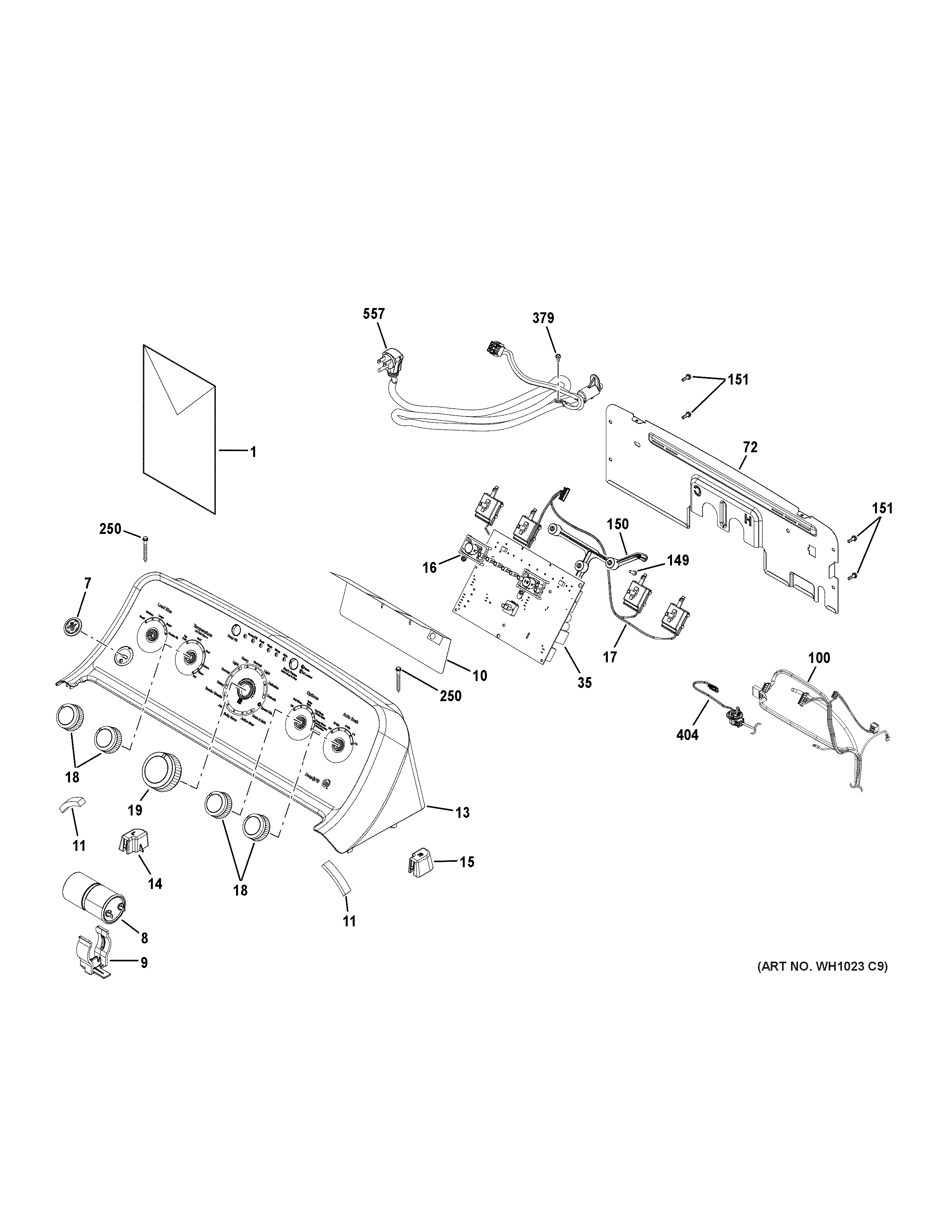

GTW485ASJ5WS CONTROLS & BACKSPLASH

GTW485ASJ5WS CONTROLS & BACKSPLASH

Written by

in

GTW485ASJ5WS CONTROLS & BACKSPLASH

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM MANUAL USE AND CARE
7WH42X24097 GE Badge
8WH12X27614 GE Capacitor Bracket Kit
10WH01X24396 GE Control Board Shield
11WH08X24099 GE Backsplash Foam Seal
13WH22X28846 GE Control Panel White
14WH16X24476 GE Washer Right Backsplash Support
15WH16X24477 GE Left Backsplash Support
16WH01X24376 GE Washer Button
17WH04X29308 GE Selector Switch 4
18KNOB OPTIONS ASM
19WH01X24377 GE Main Knob Assembly
35MAIN CONTROL BOARD W/INSTRUCTI
72WH10X28195 GE Rear Control Panel
100WH19X27495 GE Main Green Harness
149WR01X10196 GE Refrigerator Screw 8-18 HID02
150WH16X24375 GE Bracket Printed Circuit Board
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
379WD02X10159 GE Dishwasher Screw 10-32 C HX 7/16
404WH19X24141 GE Washer Wire Harness Lid Lock
557WH08X28843 GE Power Cord
