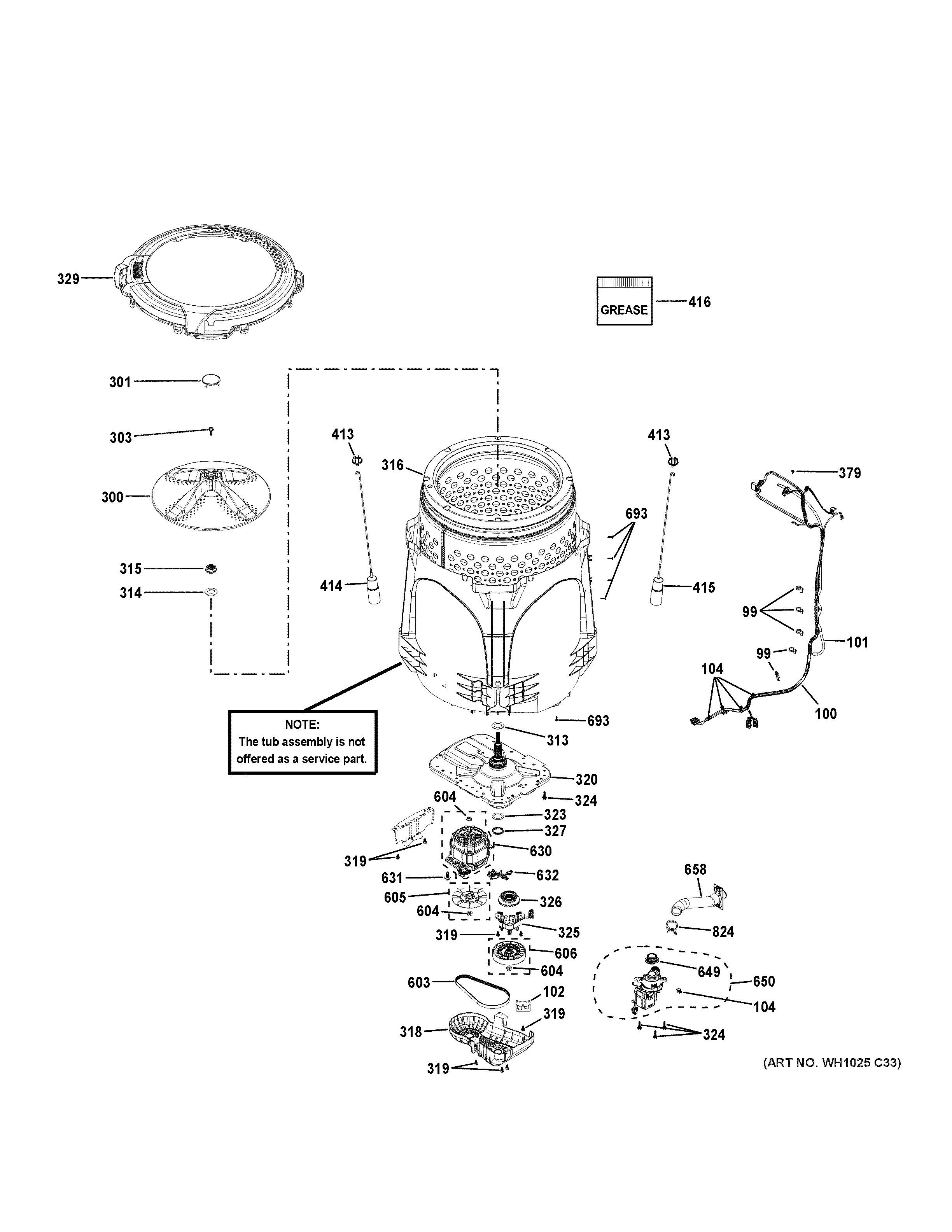

GTW490ACJ0WS TUB & MOTOR

GTW490ACJ0WS TUB & MOTOR

Written by

in

GTW490ACJ0WS TUB & MOTOR

Products

PositionProduct
99WH01X24190 GE Wire Tie Harness
100WH19X24356 GE Harness Assembly Green
101WH41X24395 GE Pressure Hose
102WH16X24192 GE Dual Harness Connector B
104WH01X10704 GE Wire Tie
300IMPELLER/AUGER BASE
301WH01X30197 GE Impeller Cap
303SCR 1/4-20 2A SINULOC
313WH02X10364 GE Washer Hub
314WH01X26190 GE Washer Belleville Washer
315WH02X10363 GE Washer Spanner Nut
316WH45X26175 GE Basket Assembly
318WH01X32881 GE Belt Protector
319WH02X24154 GE Screw 1/4-20 TT HXT
320WH03X33733 GE Platform Bearing Retainer Kit
323WH01X10759 GE Washer Spring
324WH02X10376 GE Platform Screw
325WH03X30517 GE Shift Actuator
326CLUTCH
327SPRING CLUTCH
329WH44X24150 GE Cover Tub
379WD02X10159 GE Dishwasher Screw 10-32 C HX 7/16
413WH01X26970 GE Suspension Rod Support
414ROD & SPRING ASM LEFT
415ROD & SPRING ASM RIGHT – GREEN
416WH03X37017 GE Grease
603WH01X24180 GE Washer Drive Belt
604WH02X24417 GE Pulley Nut
6051/2 HP MOTOR PULLEY & NUT
606TRANSMISSION PULLEY & NUT
630WH49X25375 GE 1/2 HP Motor and Nut
631WH02X24416 GE Screw 5/16-24 MCH HX 1 SIN
632WH12X26329 GE Speed Sensor
649WH08X24179 GE Washer Drain Pump Seal
650PUMP DRAIN ASM
658WH41X24177 GE Washer Internal Drain Hose
693WH02X24057 GE Screw 8-16 Plastite HXW 5/8
824WH01X24494 GE Washer Clamp
