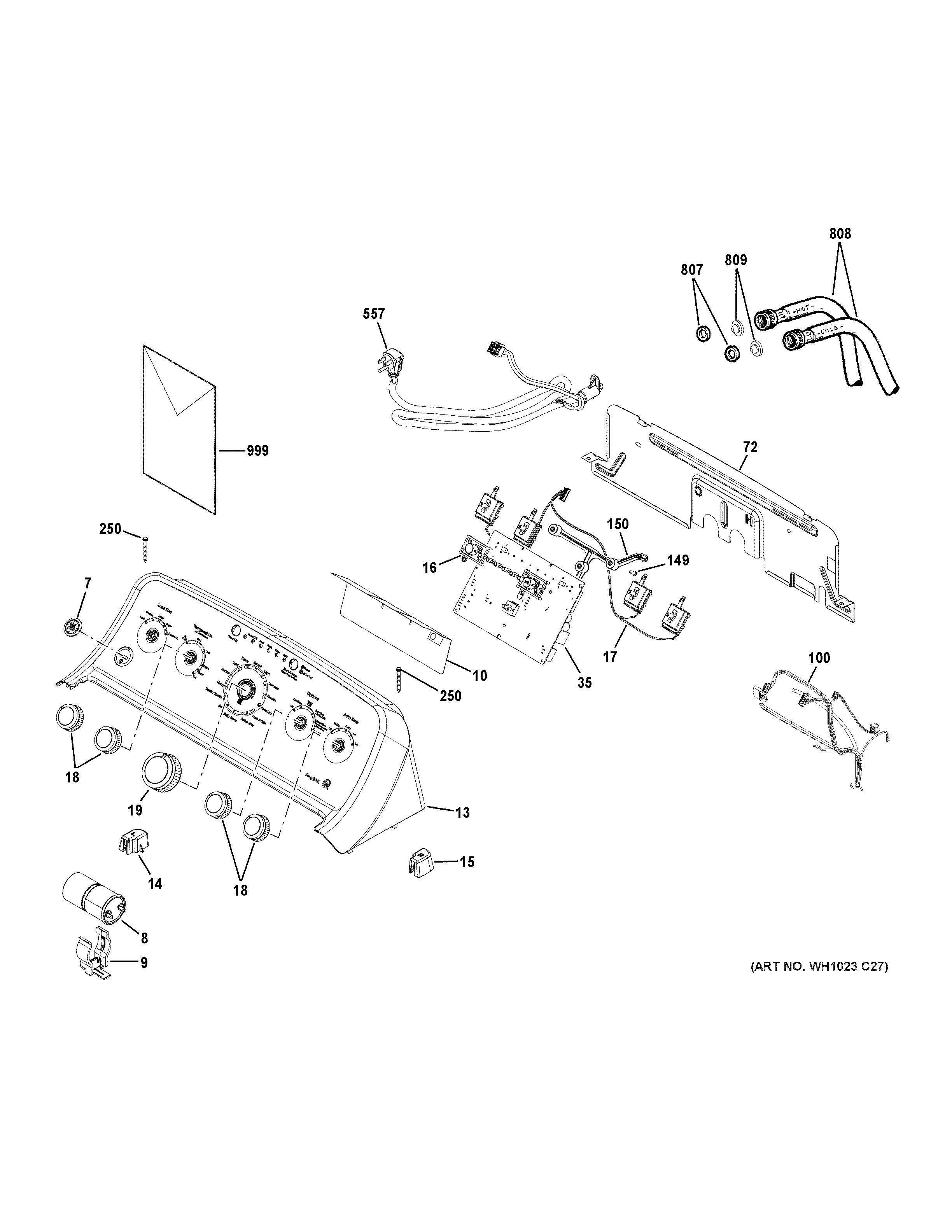

GTW490ACJ8WS CONTROLS & BACKSPLASH

GTW490ACJ8WS CONTROLS & BACKSPLASH

Written by

in

GTW490ACJ8WS CONTROLS & BACKSPLASH

Products

PositionProduct
7GE BADGE
8WH12X27614 GE Capacitor Bracket Kit
10WH01X24396 GE Control Board Shield
13WH22X28846 GE Control Panel White
14WH16X24476 GE Washer Right Backsplash Support
15WH16X24477 GE Left Backsplash Support
16WH01X24376 GE Washer Button
17WH04X29308 GE Selector Switch 4
18KNOB OPTIONS ASM
19WH01X24377 GE Main Knob Assembly
35WH22X38438 GE Triac Hardware and Switch Assembly
72WH10X28195 GE Rear Control Panel
100WH19X27495 GE Main Green Harness
149WR01X10196 GE Refrigerator Screw 8-18 HID02
150WH16X24375 GE Bracket Printed Circuit Board
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
557WH08X28843 GE Power Cord
807WH2X42D GE Washer Pack of 12
808PK HOSE INLET BAG ASM
809SCREEN WASHER
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
