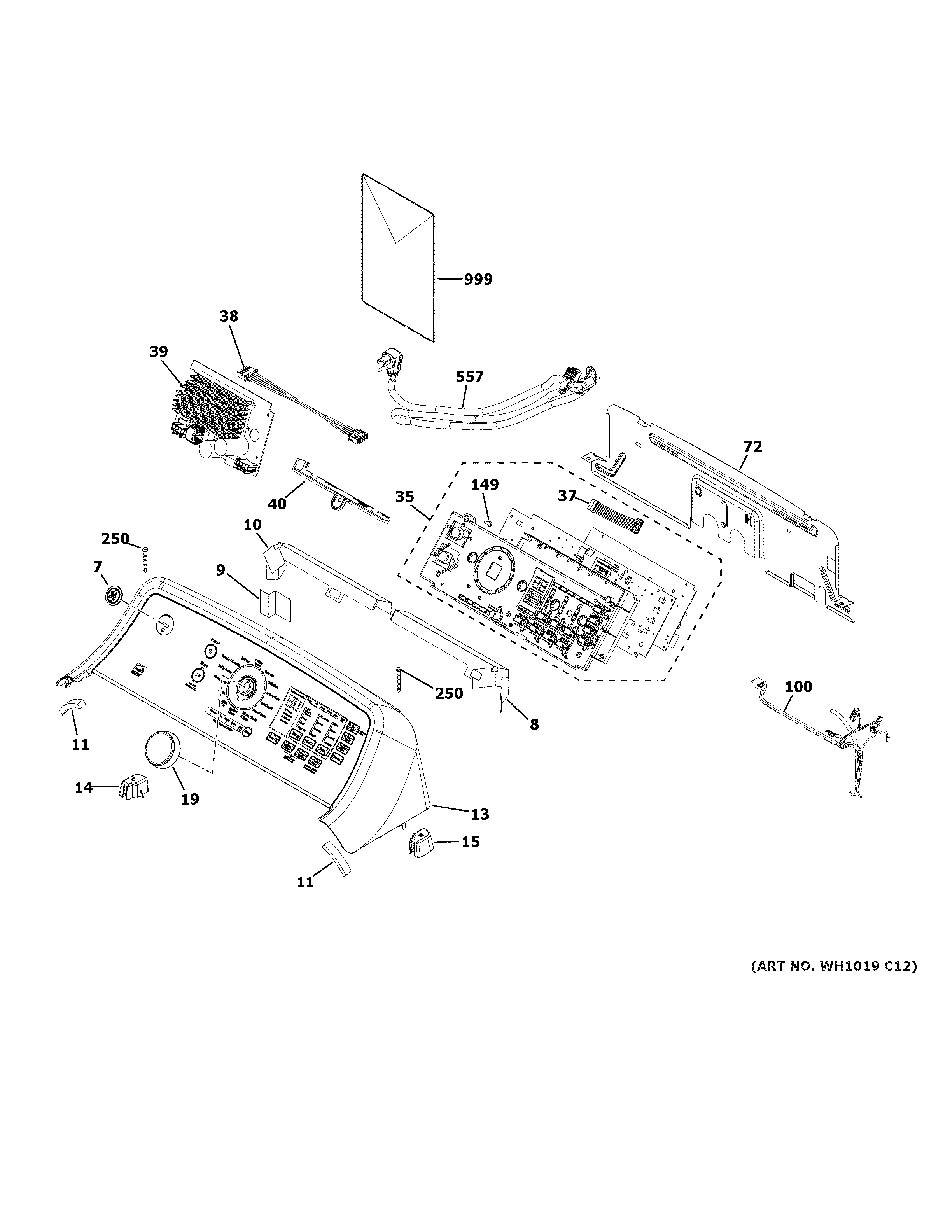

GTW585BSV1WS CONTROLS & BACKSPLASH

GTW585BSV1WS CONTROLS & BACKSPLASH

Written by

in

GTW585BSV1WS CONTROLS & BACKSPLASH

Products

PositionProduct
7GE BADGE
8COVER HOUSING
9COVER HOUSING
10COVER HOUSING
11WH01X28941 GE Backsplash Foam Block
13WH22X36657 GE Control Panel
14WH16X24095 GE Left Backsplash Support
15WH16X24096 GE Right Backsplash Support
19WH01X28943 GE Selector Knob
35WH22X36477 GE Microwave Control Board with Switch
37WH19X24055 GE Jumper Harness
38WH08X29048 GE Inverter Jumper Harness
39WH22X29049 GE Inverter Board
40WH13X29578 GE Inverter Mounting Bracket
72WH10X28194 GE Rear Control Panel
100WH08X28944 GE Main Orange Harness 4.8
149WR01X10196 GE Refrigerator Screw 8-18 HID02
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
557WH08X28843 GE Power Cord
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
