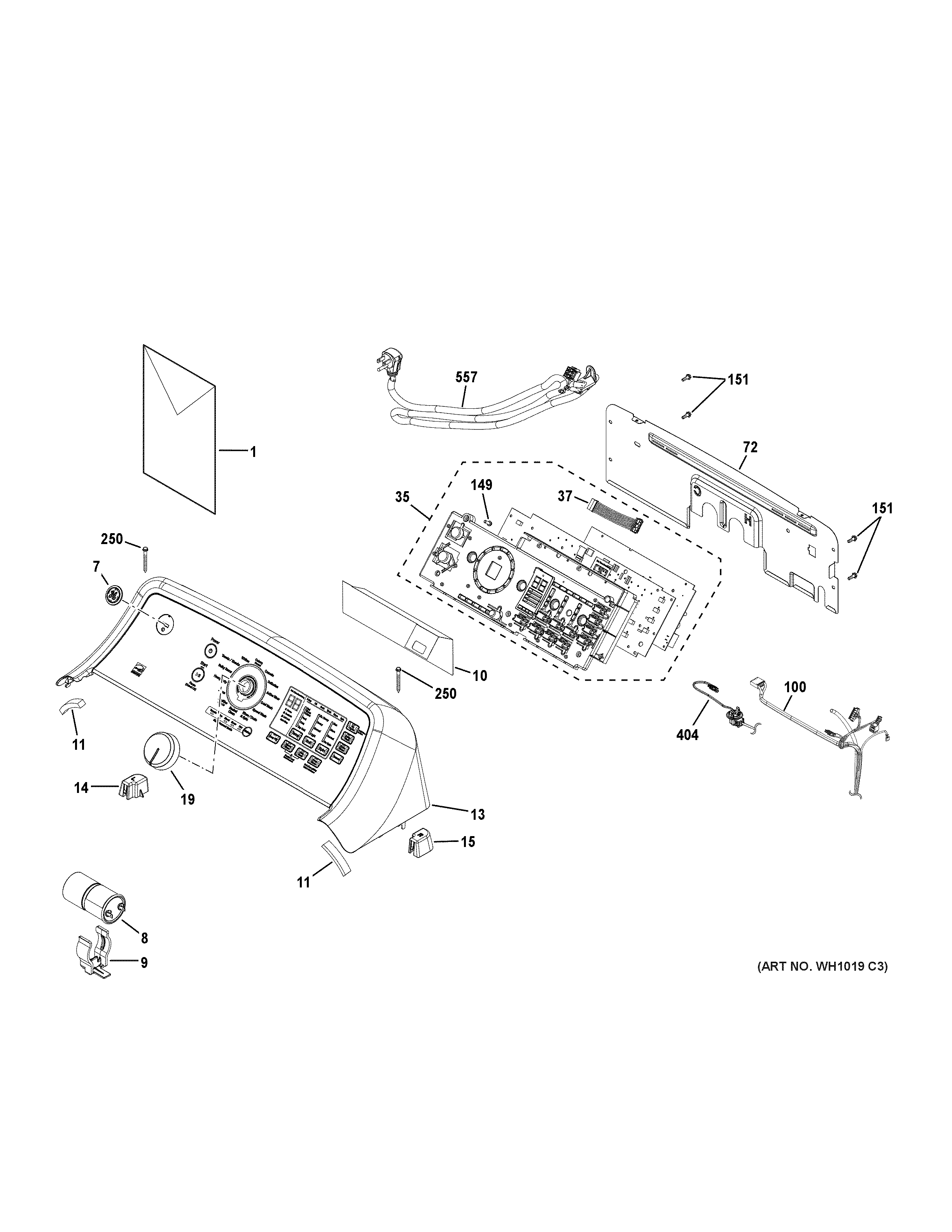

GTW680BSJ3WS CONTROLS & BACKSPLASH

GTW680BSJ3WS CONTROLS & BACKSPLASH

Written by

in

GTW680BSJ3WS CONTROLS & BACKSPLASH

Products

PositionProduct
1PM MINI MANUAL AND WIRING
1PM MANUAL USE AND CARE
7WH42X24097 GE Badge
8WH12X27614 GE Capacitor Bracket Kit
10WH01X24101 GE Control Board Shield
11WH08X24099 GE Backsplash Foam Seal
13WH42X28267 GE Backsplash Assembly Kit
14WH16X24095 GE Left Backsplash Support
15WH16X24096 GE Right Backsplash Support
19WE01X23886 GE Knob Assembly
35WH22X35757 GE Main User Interface Control Board
37WH19X24055 GE Jumper Harness
72WH10X24054 GE Control Rear Panel
100WH19X27496 GE Main Harness Orange
149WR01X10196 GE Refrigerator Screw 8-18 HID02
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
404WH19X24141 GE Washer Wire Harness Lid Lock
557WH08X28843 GE Power Cord
