GTW685BSL3WS CONTROLS & BACKSPLASH

GTW685BSL3WS CONTROLS & BACKSPLASH

Written by

in

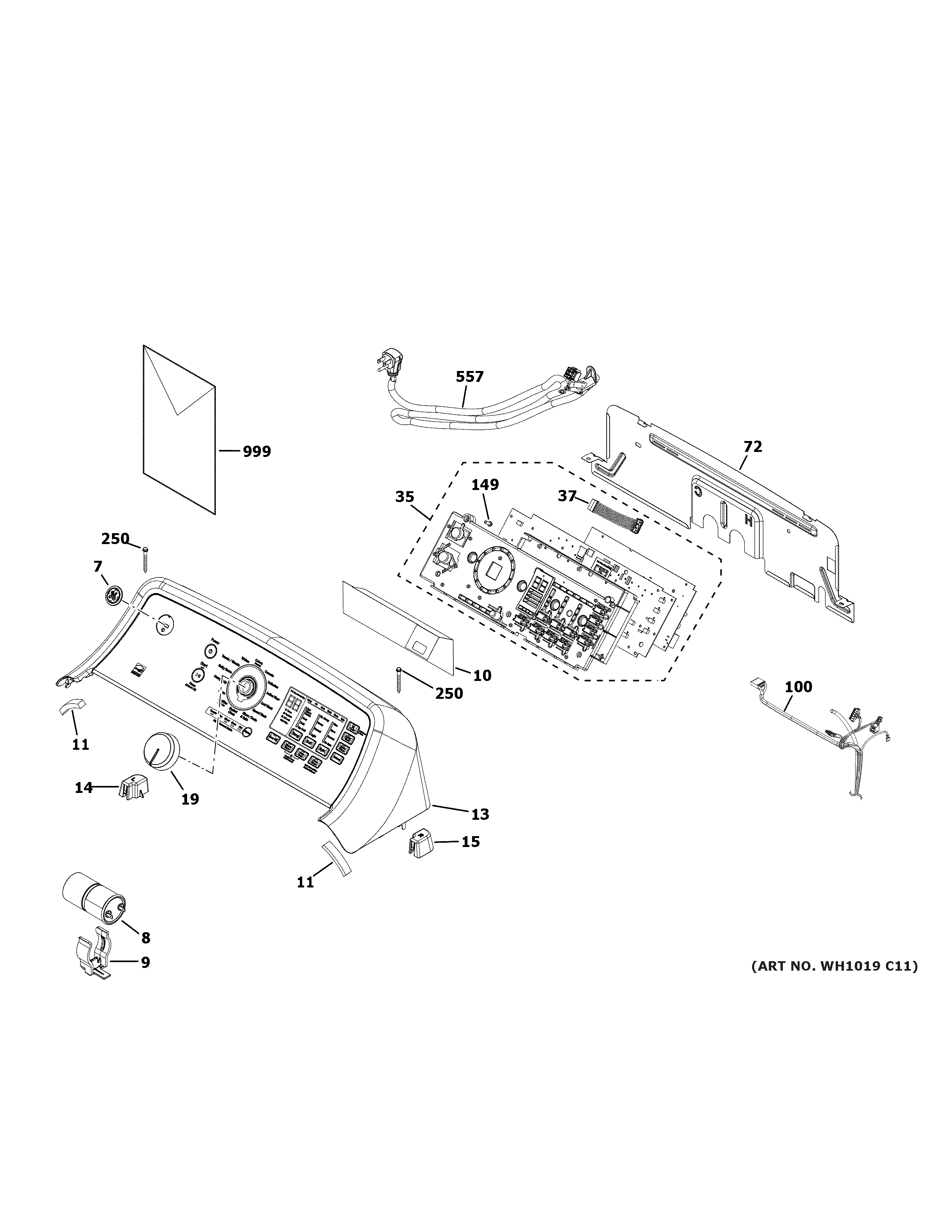

GTW685BSL3WS CONTROLS & BACKSPLASH

Products

PositionProduct
7WH42X24097 GE Badge
8WH12X27614 GE Capacitor Bracket Kit
10COVER HOUSING
11WH01X28941 GE Backsplash Foam Block
13WH22X31917 GE Control Panel White 680/685
14WH16X24095 GE Left Backsplash Support
15WH16X24096 GE Right Backsplash Support
19WE01X23886 GE Knob Assembly
35WH22X35757 GE Main User Interface Control Board
37WH19X24055 GE Jumper Harness
72WH10X28194 GE Rear Control Panel
100WH19X27496 GE Main Harness Orange
149WR01X10196 GE Refrigerator Screw 8-18 HID02
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
557WH08X28843 GE Power Cord
999PM MINI MANUAL AND WIRING
999PM OWNERS AND INSTALL
