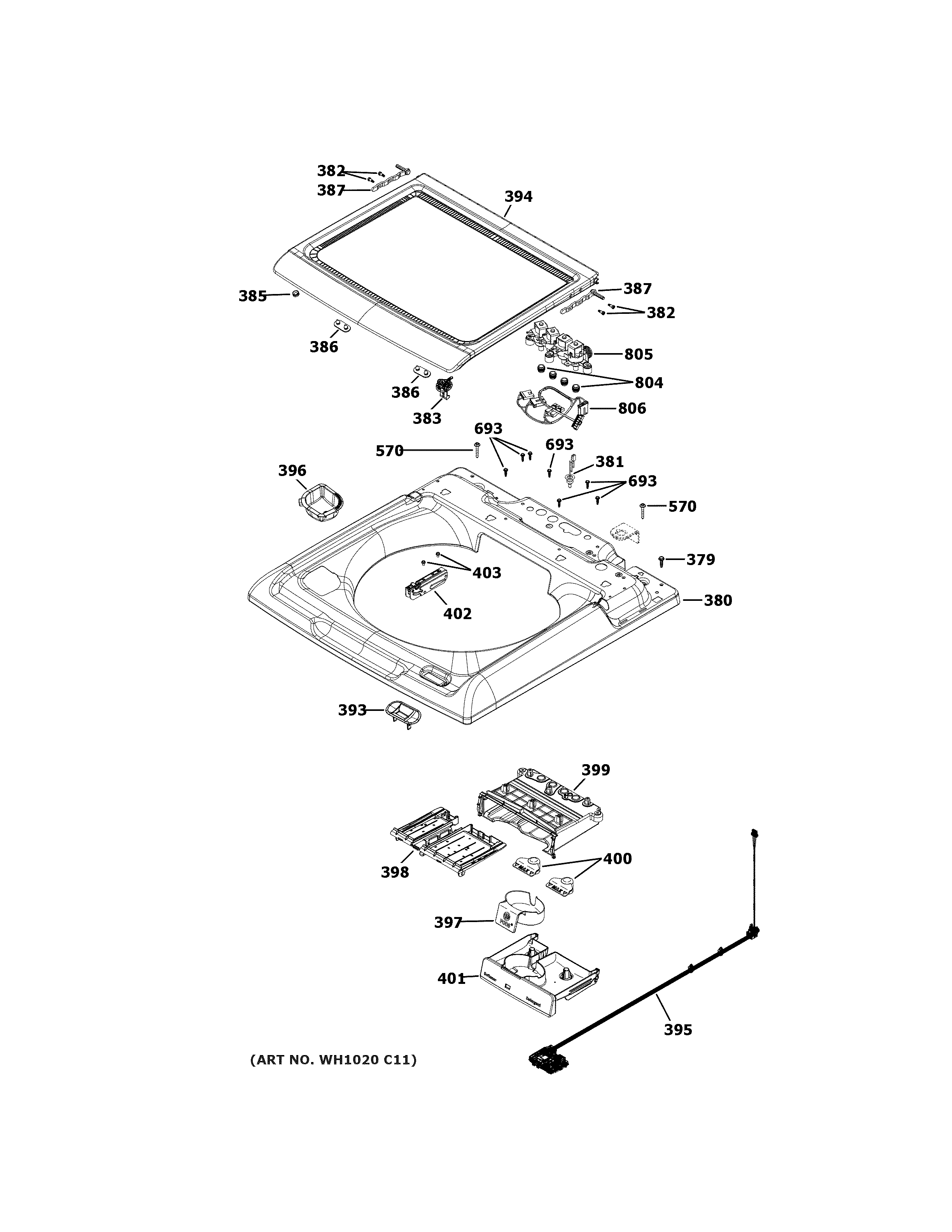

GTW720BPN1DG TOP PANEL & LID

GTW720BPN1DG TOP PANEL & LID

Written by

in

GTW720BPN1DG TOP PANEL & LID

Products

PositionProduct
379WE02X10107 GE Screw 10-32 GX HXW 7/16 S
380WH44X27354 GE Top Cover
381WH04X29448 GE Thermostat
382WH02X24414 GE Screw 6-32 FLP .490 Stainless Steel
383WH01X31637 GE Lid Lock Striker
385WH01X24108 GE Lid Front Corner Bumper
386WH02X34897 GE Center Lid Bumper
387WH01X24111 GE Lid Lever Arm
393WH01X31638 GE Lid Lock Bezel
394WH44X26701 GE XL Lid Glass Frame Assembly
395LID LOCK AND STRIKER KIT
396WH47X26697 GE Bleach Cup
397WH42X29422 GE Pod Cup
398WH42X29421 GE Dispenser Shower Plate
399WH47X27014 GE Dispenser Box
400WH42X29424 GE Siphon Cap
401WH42X29423 GE Dispenser Drawer
402WH02X24139 GE Lid Hinge
403WH02X24140 GE Lid Hinge Screw
570WH02X24116 GE Screw 10-32 GX 1.309 HWX
693WH02X24057 GE Screw 8-16 Plastite HXW 5/8
804WH13X24094 GE Water Valve Seal
805WH13X26637 GE Washer Water Inlet Valve
806WH08X29860 GE Water Valve Harness
