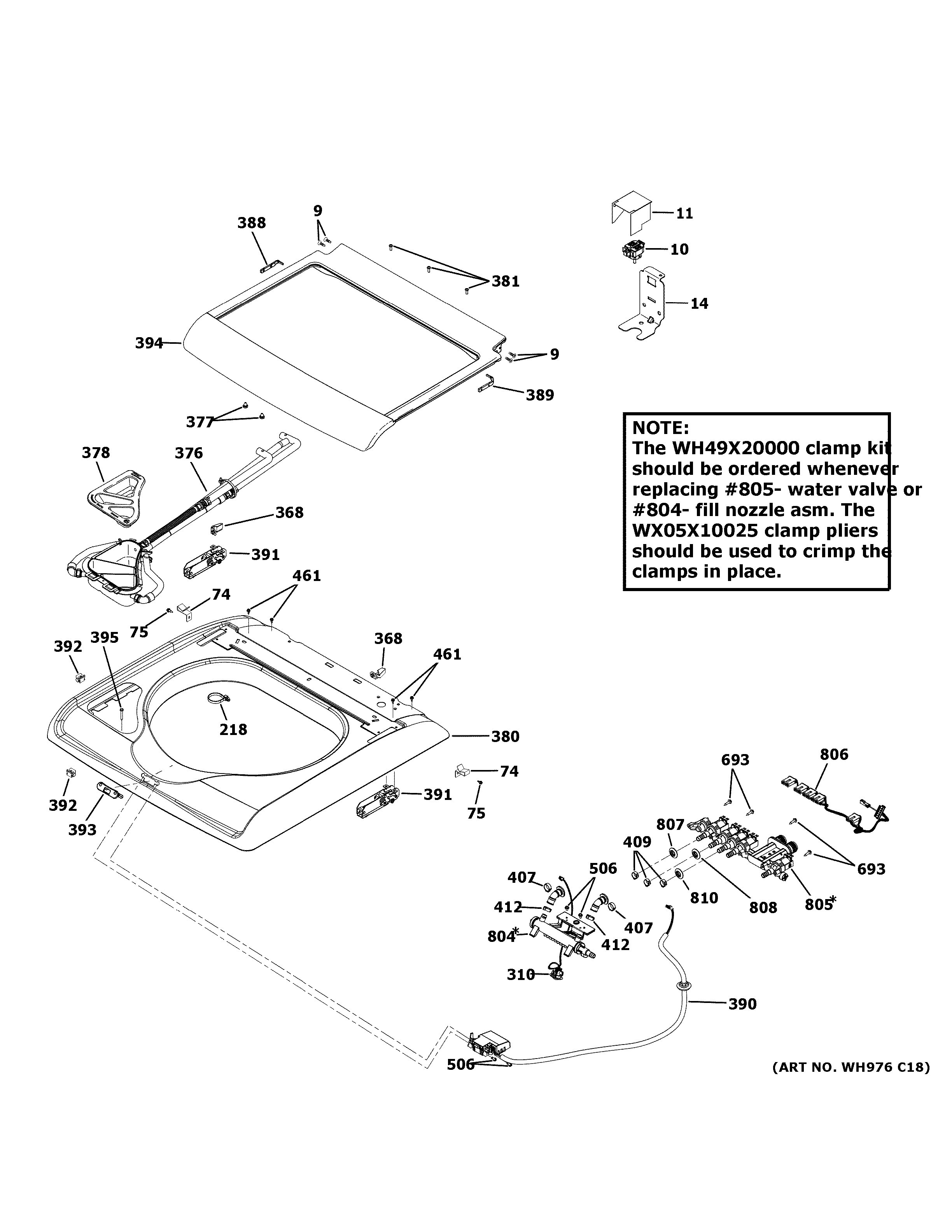

GTW810SPJ1MC TOP PANEL & LID

Products

Position	Product
9	SCR 8-32 B FLP 1/2 S
10	GEN WH12X10556
11	COVER PRESSURE SENSOR
14	BRACKET PRESSURE SENSOR
74	BRACKET COVER REAR
75	WH2X1217 GE Screw Assembly
218	WH01X10704 GE Wire Tie
310	GEN WH12X10568
368	CLIP
376	CUP COMBO HOSE ASM
377	LID BUMPER SERVICE KIT
378	DISPENSER BEZEL
380	TOP COVER FINISHED
388	PIN HINGE
389	PIN HINGE
390	WH12X20357 GE Lid Lock Assembly
391	HINGE
392	CLIP LID LOCK
393	GEN WH01X10695
394	LID ASM
395	WH02X24296 GE Screw 8-18 BS TRP 3/8"
407	WH01X10687 GE Hose Clamp
409	WH01X10688 GE Hose Clamp
412	GEN WH01X10692
461	WH02X24140 GE Lid Hinge Screw
506	WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
693	WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
804	FILL NOZZLE ASM
805	WH13X10058 GE Washer Water Inlet Valve
806	WH19X10112 GE Water Valve Harness
807	GEN WH02X10357
808	GEN WH02X10366
810	GEN WH02X10365
