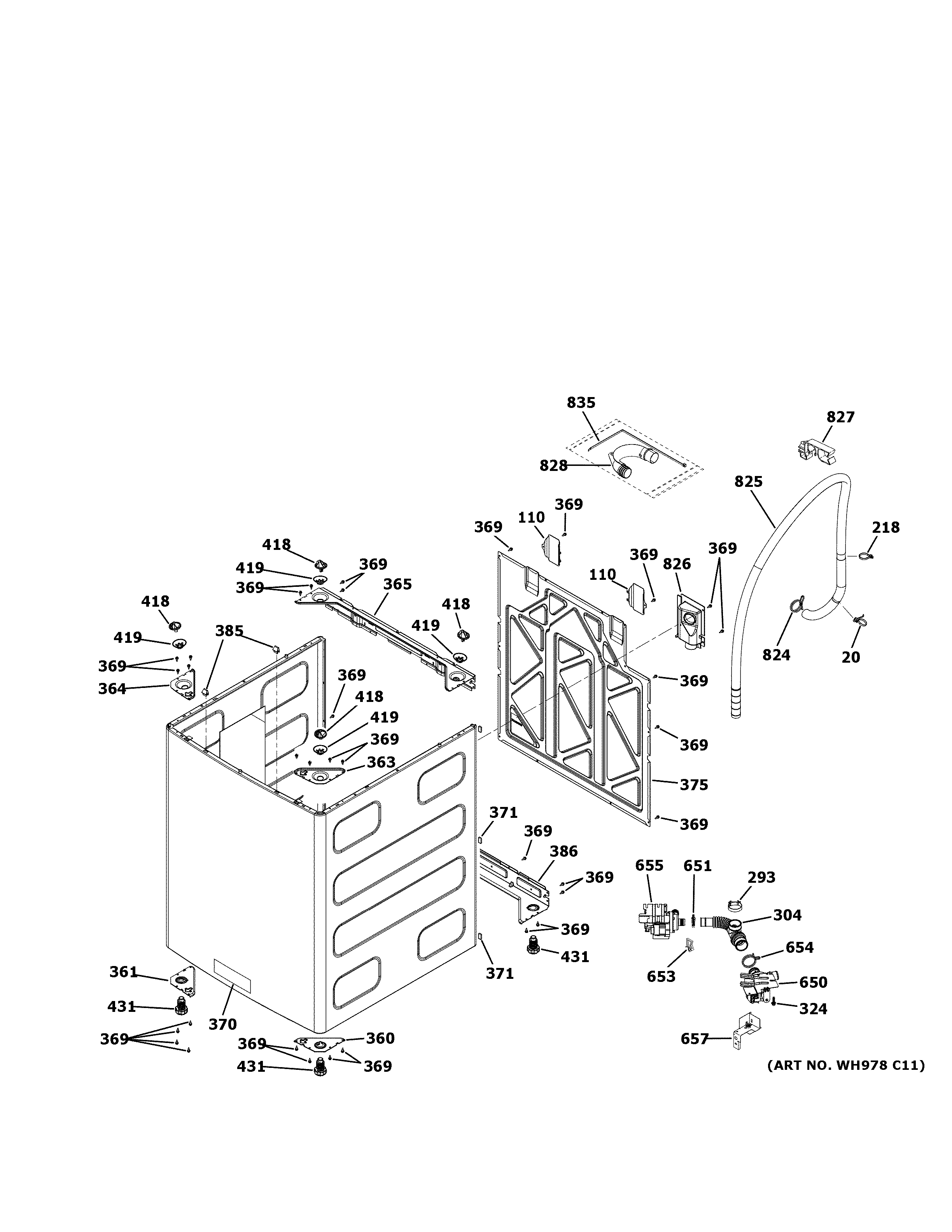

GTW810SSJ1WS CABINET

GTW810SSJ1WS CABINET

Written by

in

GTW810SSJ1WS CABINET

Products

Position	Product
20	GEN WH01X10702
110	GEN WH44X10314
218	WH01X10704 GE Wire Tie
293	GEN WH01X10134
304	WH41X10311 GE Inlet Hose
324	WH02X10376 GE Platform Screw
360	WH16X26030 GE Front Support Leg
361	GEN WH16X10183
363	GEN WH16X10166
364	WH16X10167 GE Support Rod Front
365	WH16X10169 GE Rear Top Cross Bar
369	WH2X1217 GE Screw Assembly
370	WH01X10714 GE Foam Bracket
371	PK PARTS BAG ASM
375	WH44X23919 GE Rear Panel Assembly
385	WH02X24334 GE Cover Clip Spring
386	GEN WH16X10170
418	BALL JOINT UPPER
419	BALL SOCKET UPPER
431	FOOT AND BASE ASM
650	GEN WH23X10047
651	WH01X10698 GE Hose Clamp
653	CLIP HARNESS
654	GEN WH01X10699
655	GEN WH23X10048
657	RECIRC TCO ASM
824	GEN WH01X10700
825	WH41X10319 GE Washer Drain Hose
826	GEN WH01X10668
827	GEN WH01X10670
828	GEN WH16X10178
835	WH1X2594 GE Tie Strap
