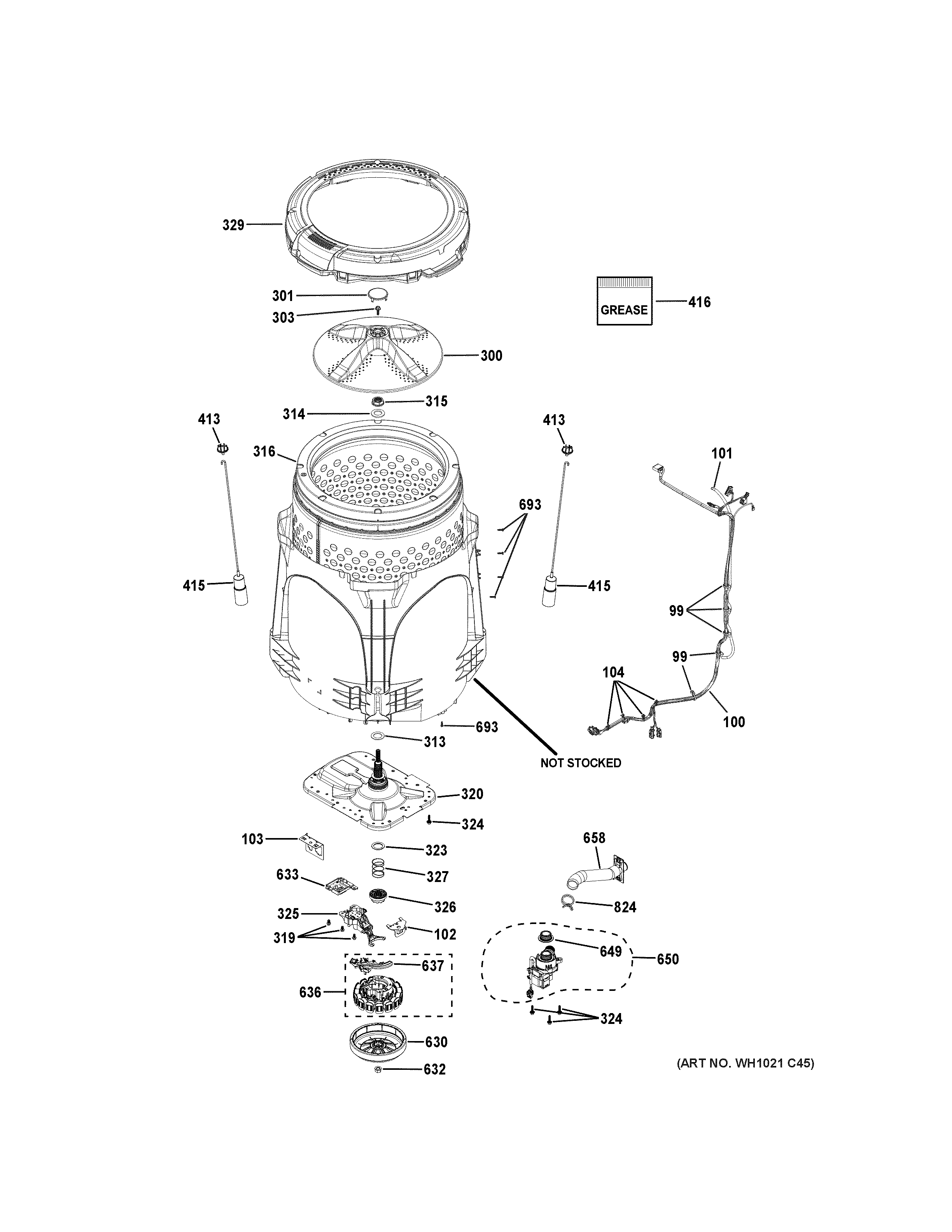

GTW840CPN0DG TUB & MOTOR

GTW840CPN0DG TUB & MOTOR

Written by

in

GTW840CPN0DG TUB & MOTOR

Products

PositionProduct
99WH01X24190 GE Wire Tie Harness
100WH08X29066 GE Purple Main Harness
101WH41X24395 GE Pressure Hose
102WH13X29044 GE Connector Bracket Left
103WH13X29045 GE Right Connector Bracket
104WH01X10704 GE Wire Tie
300IMPELLER/AUGER BASE
301WH01X30197 GE Impeller Cap
303SCR 1/4-20 2A SINULOC
313WH02X10364 GE Washer Hub
314WH01X26190 GE Washer Belleville Washer
315WH02X10363 GE Washer Spanner Nut
316WH21X29067 GE 5.2 Basket
319WH02X24154 GE Screw 1/4-20 TT HXT
320WH03X33732 GE Washing Machine Platform Bearing Retainer Kit
323WH01X29038 GE Washer Spring
324WH02X10376 GE Platform Screw
325MODE SHIFTER
326WH03X28951 GE Clutch Assembly
327SPRING CLUTCH
329WH10X29068 GE Tub Cover
413WH01X26970 GE Suspension Rod Support
415ROD & SPRING PURPLE AIR 4-PACK
416WH03X37017 GE Grease
630MOTOR ROTOR
632WH02X29041 GE Rotor Nut
633WH03X32138 GE Accelerometer
636WH03X30257 GE Stator & Speed Sensor with Harness
637WH03X29043 GE Speed Sensor
649WH08X24179 GE Washer Drain Pump Seal
650PUMP DRAIN ASM
658WH41X24177 GE Washer Internal Drain Hose
693WH02X24057 GE Screw 8-16 Plastite HXW 5/8
824WH01X24494 GE Washer Clamp
