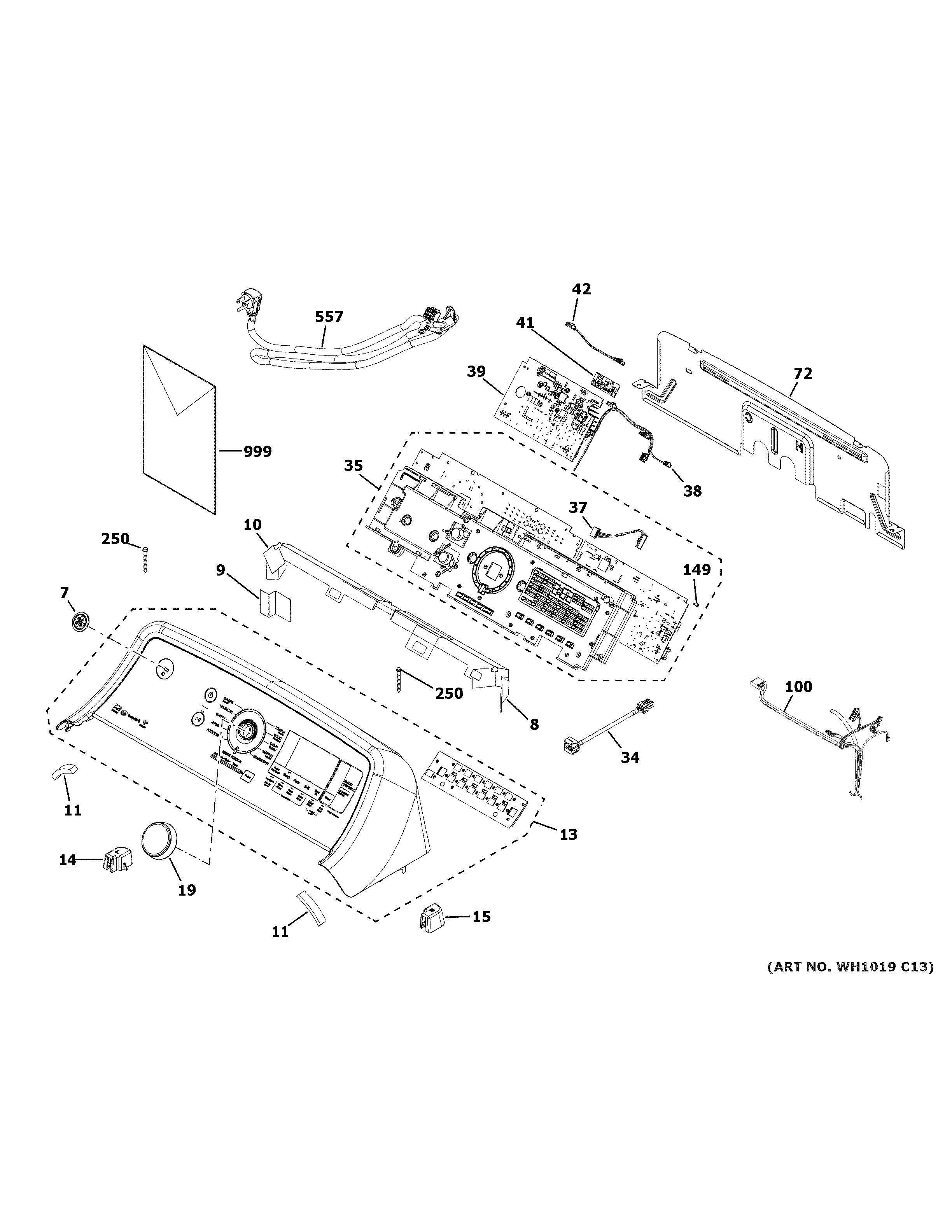

GTW845CPN1DG CONTROLS & BACKSPLASHadmin2025-04-26T10:17:12+00:00GTW845CPN1DG CONTROLS & BACKSPLASH ProductsPositionProduct7GE BADGE8COVER HOUSING9COVER HOUSING10COVER HOUSING11WH08X24099 GE Backsplash Foam Seal13WH22X29072 GE Control Panel Diamond Gray14WH16X24095 GE Left Backsplash Support15WH16X24096 GE Right Backsplash Support19WH01X28943 GE Selector Knob34WH08X29137 GE RJ45 Harness35WH22X31618 GE Washer Main Board 840/845 Service37WH08X29065 GE UI Harness Jumper38WH08X29048 GE Inverter Jumper Harness39WH22X29049 GE Inverter Board41WH22X33297 GE Wifi Board with Instructions42WH08X29075 GE Wi-Fi Jumper Harness72WH10X28194 GE Rear Control Panel100WH08X29066 GE Purple Main Harness149WR01X10196 GE Refrigerator Screw 8-18 HID02250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW557WH08X28843 GE Power Cord999PM OWNERS AND INSTALL999PM QUICK OWNERS MANUAL999PM MINI MANUAL AND WIRING
