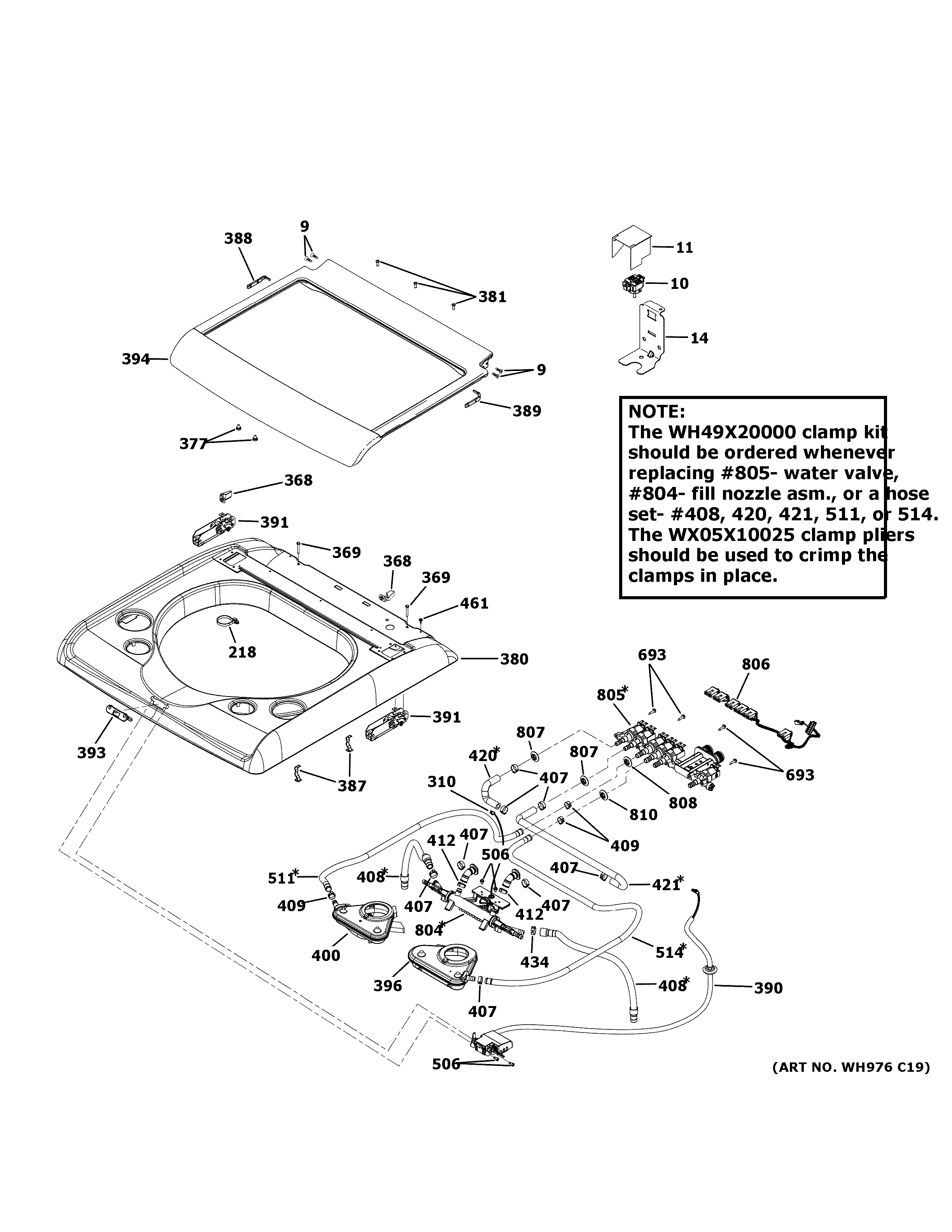

GTW860SPJ0MC TOP PANEL & LID

Products

Position	Product
9	SCR 8-32 B FLP 1/2 S
10	GEN WH12X10556
11	COVER PRESSURE SENSOR
14	BRACKET PRESSURE SENSOR
218	WH01X10704 GE Wire Tie
310	GEN WH12X10568
368	CLIP
369	WH2X1217 GE Screw Assembly
377	LID BUMPER SERVICE KIT
380	COVER GRAPHIC ASM
381	WH02X24296 GE Screw 8-18 BS TRP 3/8"
387	CLIP HOSE
388	PIN HINGE LEFT
389	PIN HINGE RIGHT
390	WH12X20357 GE Lid Lock Assembly
391	HINGE
393	GEN WH01X10695
394	LID ASM
396	GEN WH01X10682
400	GEN WH47X10022
407	WH01X10687 GE Hose Clamp
408	GEN WH41X10328
409	WH01X10688 GE Hose Clamp
412	GEN WH01X10692
420	GEN WH41X10331
421	GEN WH41X10332
434	HOSE CLAMP
461	WZ5X158D GE Screw Package of 12
506	WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
511	GEN WH41X10321
514	WH41X10325 GE Hose Dispensing Assembly
693	WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
804	FILL NOZZLE ASM
805	WH13X10059 GE Water Valve Solenoid
806	WH19X10113 GE Water Valve Harness
807	GEN WH02X10365
808	GEN WH02X10356
810	GEN WH02X10357
