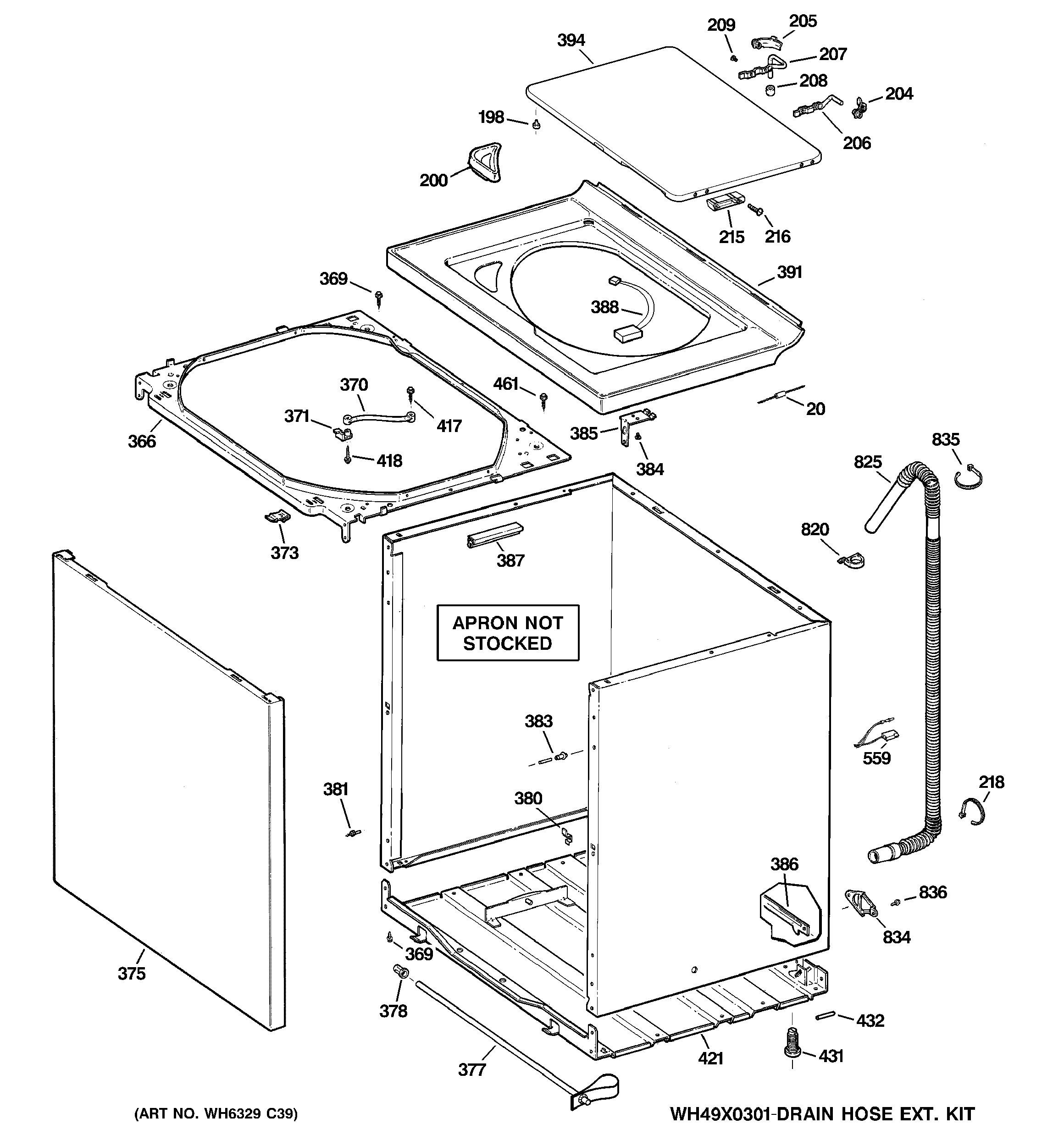

GTWN4450M1WS CABINET, COVER & TOP PANEL

GTWN4450M1WS CABINET, COVER & TOP PANEL

Written by

in

GTWN4450M1WS CABINET, COVER & TOP PANEL

Products

PositionProduct
200GEN WH01X10584
204WH1X2741 GE BSHNG Hinge
205WH01X10025 GE Hinge Bushing
206GEN WH01X10642
206WH1X2740 GE Hinge Wire Frame
208GEN WH01X2742
209WH2X1211 GE Screw
218WH01X10704 GE Wire Tie
366WH46X10270 GE Rod Support Weld Assembly
369WH2X1217 GE Screw Assembly
370WH1X2727 GE Washer Tub Support Strap
371WH1X2726 GE Retaining Strap
373WH02X10279 GE Washer Locking Clip
375WH46X10281 GE Front Panel Assembly
377SHIPPING BAR ASM
378WH1X2745 GE Plug Button
380GEN WH02X1207
381WH2X1190 GE Ground Stud
383WH2X1189 GE Alignment Pin
384SCREW 8-15 A 3/4 SP HXW
385WH01X10422 GE Cover Clip
386WH46X10094 GE Self-Leveling Bar
387WH41X10036 GE Conduit Preset
388WH12X10334 GE Washer Lid Switch Assembly
391COVER ASM FINISHED
394GEN WH44X10247
417GEN WH02X0694
418WH02X10282 GE Screw 8-18 B IHW 1 S
421GEN WH46X10145
431WH2X1187 GE Leveling Assembly
432GEN WH02X1188
461WZ5X158D GE Screw Package of 12
559GEN WH12X0538
820WH1X2725 GE Antenna Clip
825WH41X10096 GE Washer Drain Hose
834WH16X513 GE Washer Drain Hose Clip
835WH1X2594 GE Tie Strap
836WH02X10002 GE Screw
