GTWP1000M2WW CONTROLS & BACKSPLASH
Written by
in

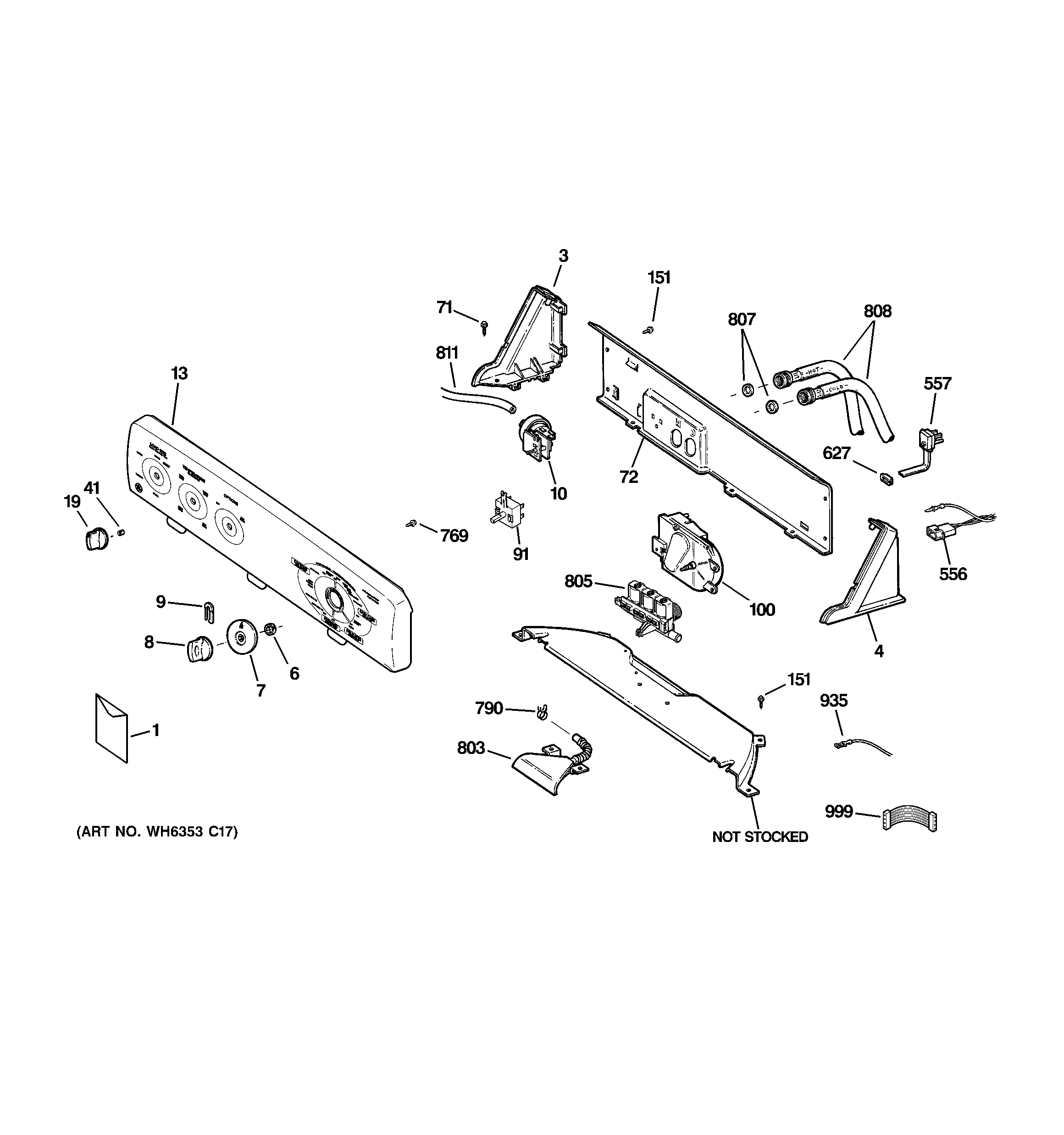

GTWP1000M2WW CONTROLS & BACKSPLASH
Products
Position
Product
1
GEN 31-15441
1
GEN 49-90399-1
1
GEN 31-16688
3
WH42X22575 GE Left Hand Endcap Washer
4
WH42X22576 GE Washer Right Hand Endcap
6
WH02X10093 GE Washer Compression Ring
7
WH11X10049 GE Washer Control Timer Dial
8
WH01X10310 GE Washer Control Knob
9
WH1X2117 GE Timer Knob Spring Clip
10
WH12X10476 GE Washer Water Level Pressure Switch
13
WH42X10837 GE Backsplash Assembly
19
WE01X20378 GE Washer Control Knob
41
GEN WH01X10106
71
WH2X1205 GE Screw 8-18
72
GEN WH46X10146
91
WH12X10498 GE Washer Rotary Switch
100
WH12X10535 GE Washer Timer
151
WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
556
GEN WH12X0497
557
GEN WH19X10068
627
GEN WH12X10208
769
WR01X10619 GE Refrigerator Screw
790
WH1X2036 GE UNIX Clamp
803
HOSE & WATER INLET
805
WH13X23974 GE Washer Water Inlet Valve
807
WH2X42D GE Washer Pack of 12
808
WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811
WH41X365 GE Washer Water Level Pressure Switch HOSE
935
GEN WD01X1434
999
GEN WH19X10090
←
