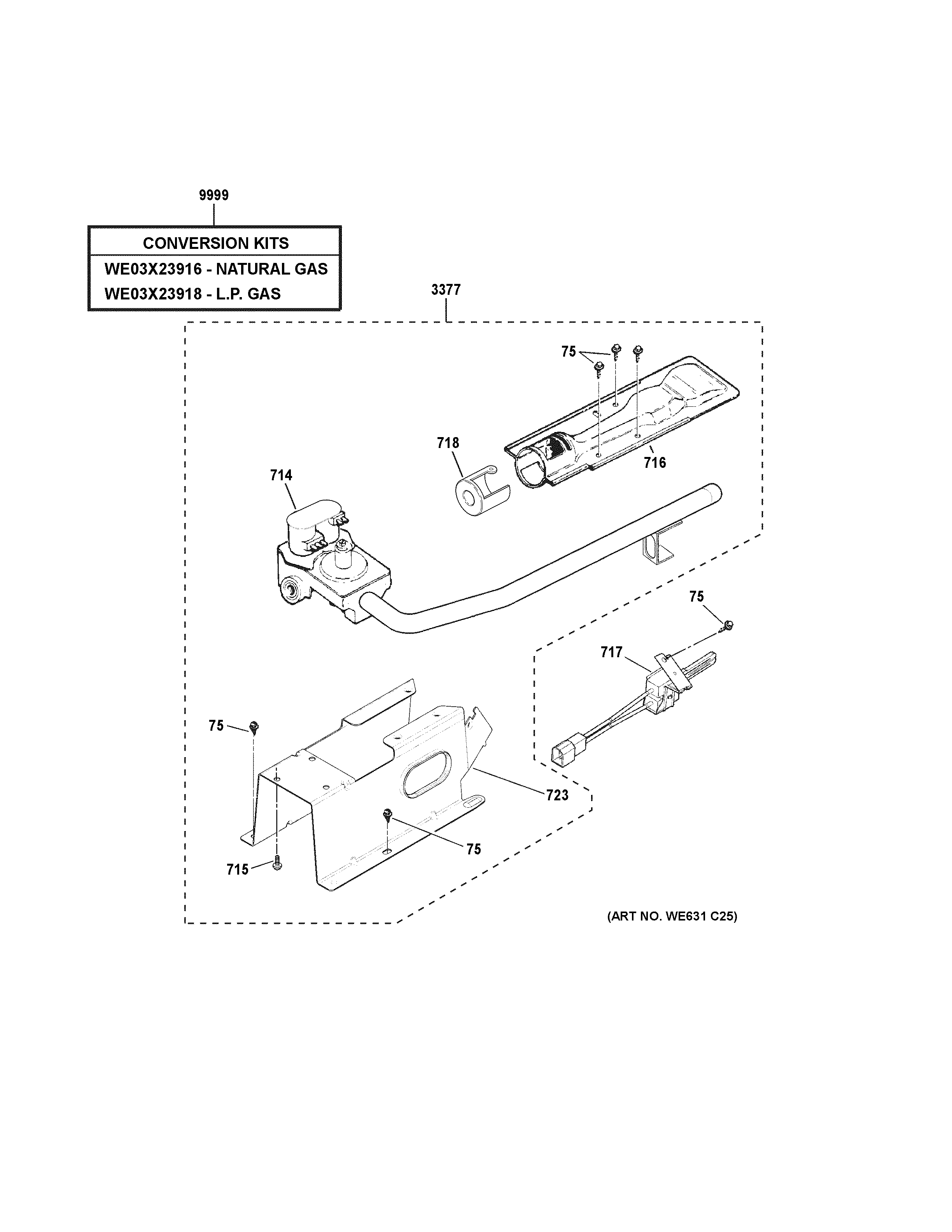

GTX33GASK1WW GAS VALVE & BURNER ASSEMBLY

GTX33GASK1WW GAS VALVE & BURNER ASSEMBLY

Written by

in

GTX33GASK1WW GAS VALVE & BURNER ASSEMBLY

Products

PositionProduct
75WE01X25535 GE Screw
714WE23X35318 GE Gas Valve Assembly
715WD2M101 GE Dishwasher Screw
716WE14X25075 GE Burner Assembly
717GAS IGNITER ASM
718WE02X24214 GE Air Shutter
723WE13X20405 GE Bracket Gas Valve
3377WE11X35317 GE Valve & Burner
9999WE03X23918 GE Washer Valve and Pipe Assembly
9999VALVE AND PIPE ASSEMBLY
