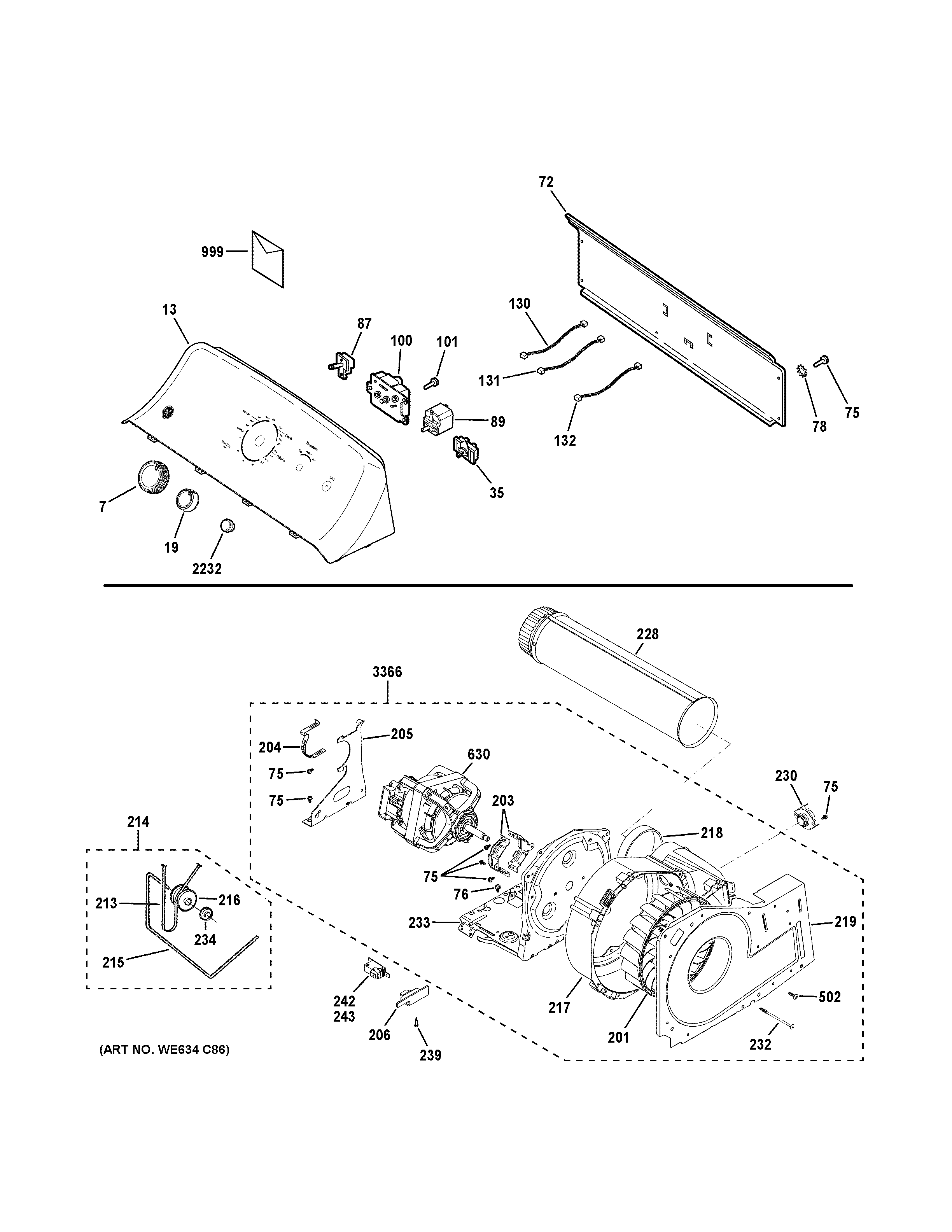

GTX38EASW0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

GTX38EASW0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

GTX38EASW0WS BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
7CYCLE SELECTOR KNOB
13CONTROL PANEL TL DRYER 38
19OPTIONS SELECTOR KNOB
35PUSH TO START SWITCH
72WE20X24556 GE Back Panel
75WE01X25535 GE Screw
76WZ5X158D GE Screw Package of 12
78WE01X26154 GE Washer
87WE04X25587 GE Washer Rotary Switch
89BUZZER
100TIMER
101WE01X24720 GE Screw 30 x 20 IA PP
130WE15X25206 GE Jumper Harness Red
131WE15X25278 GE Wire Group Assembly
132WE15X25208 GE Jumper Harness Black
201WH16X34317 GE Blower Wheel
203WE13X30697 GE Washer Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206BRACKET IDLER
213WE03X29897 BELT DRIVE
214WE03X27417 GE Idler Arm Assembly
215WE03X20434 GE Washer Idler Arm
216PULLEY
217HOUSING BLOWER
218WE09X27636 GE Exhaust Blower Gasket
219WE13X29444 GE Blower Plate
228WE01X23892 GE Exhaust Duct
230THERMOSTAT
232WE2M202 GE Screw
233WE03X23858 GE Motor Plate
234GEN WE2M96?
239WE2X21854 GE Screw
242WD21X10261 GE Dishwasher Interlock Switch
502WE2M174 GE Screw #10
630KIT MOTOR DRIVE AND PULLEY 27
999PUB NUMBER MINI MANUAL
999PM OWNERS MANUAL
999PM INSTALLATION INSTRUCTION USA ELEC Y G
2232BUTTON START ASM
3366WE17X24535 GE Motor and Blower Assembly
