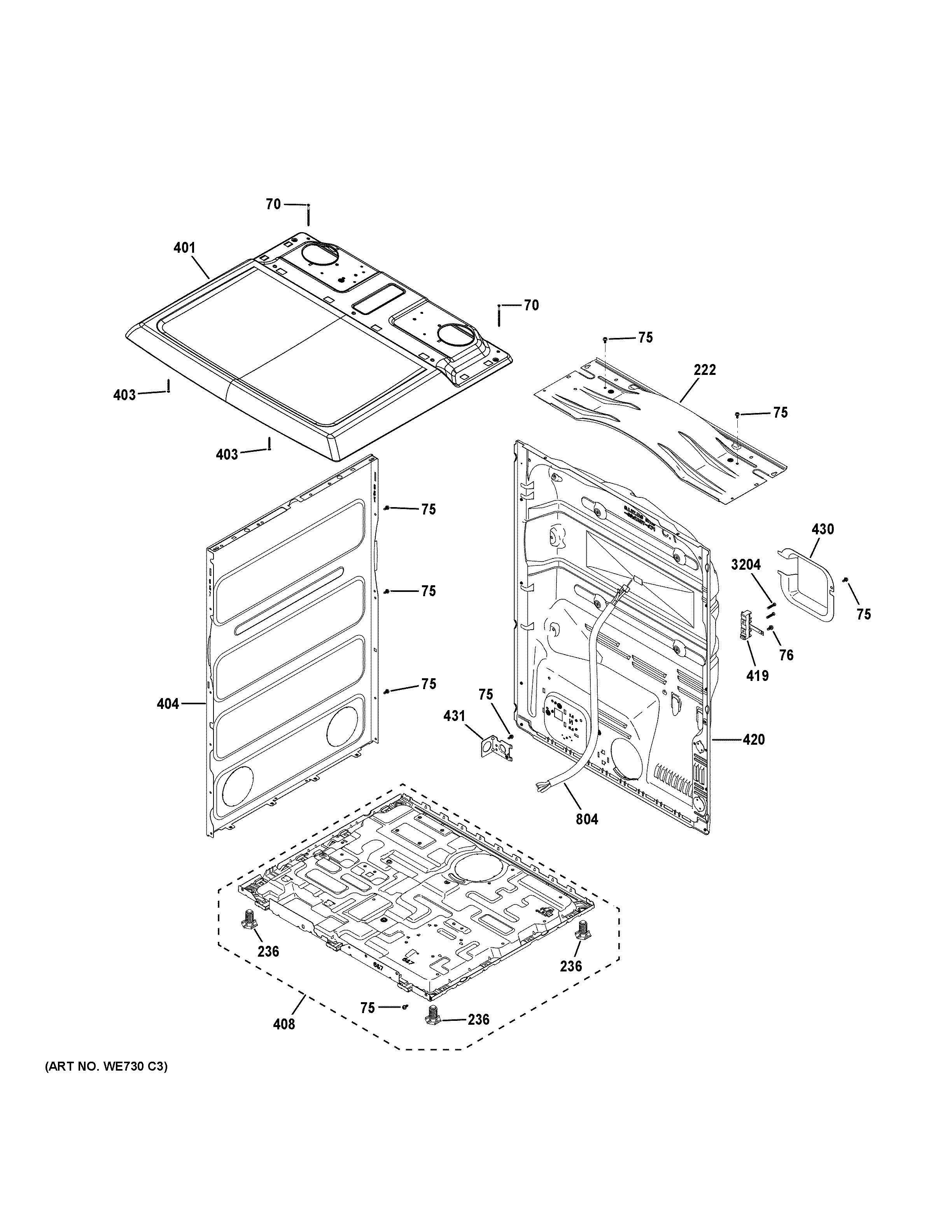

GTX38EASW0WS CABINET & TOP PANEL

GTX38EASW0WS CABINET & TOP PANEL

Written by

in

GTX38EASW0WS CABINET & TOP PANEL

Products

PositionProduct
70WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
75WE01X25535 GE Screw
76WZ5X158D GE Screw Package of 12
222WE03X23883 GE Bottom Cover
236WE01X29357 GE Washer Levelling Leg
401WE03X24721 GE Top Low Depth Cover
403WE01X25318 GE Screw
404WE10X29822 GE Side Panel
408WE04X25159 GE Chassis and Leg Assembly
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE02X25274 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
804WE08X37098 GE Electric Dryer Main Wiring Harness
3204WZ4X241D GE Screw Package
