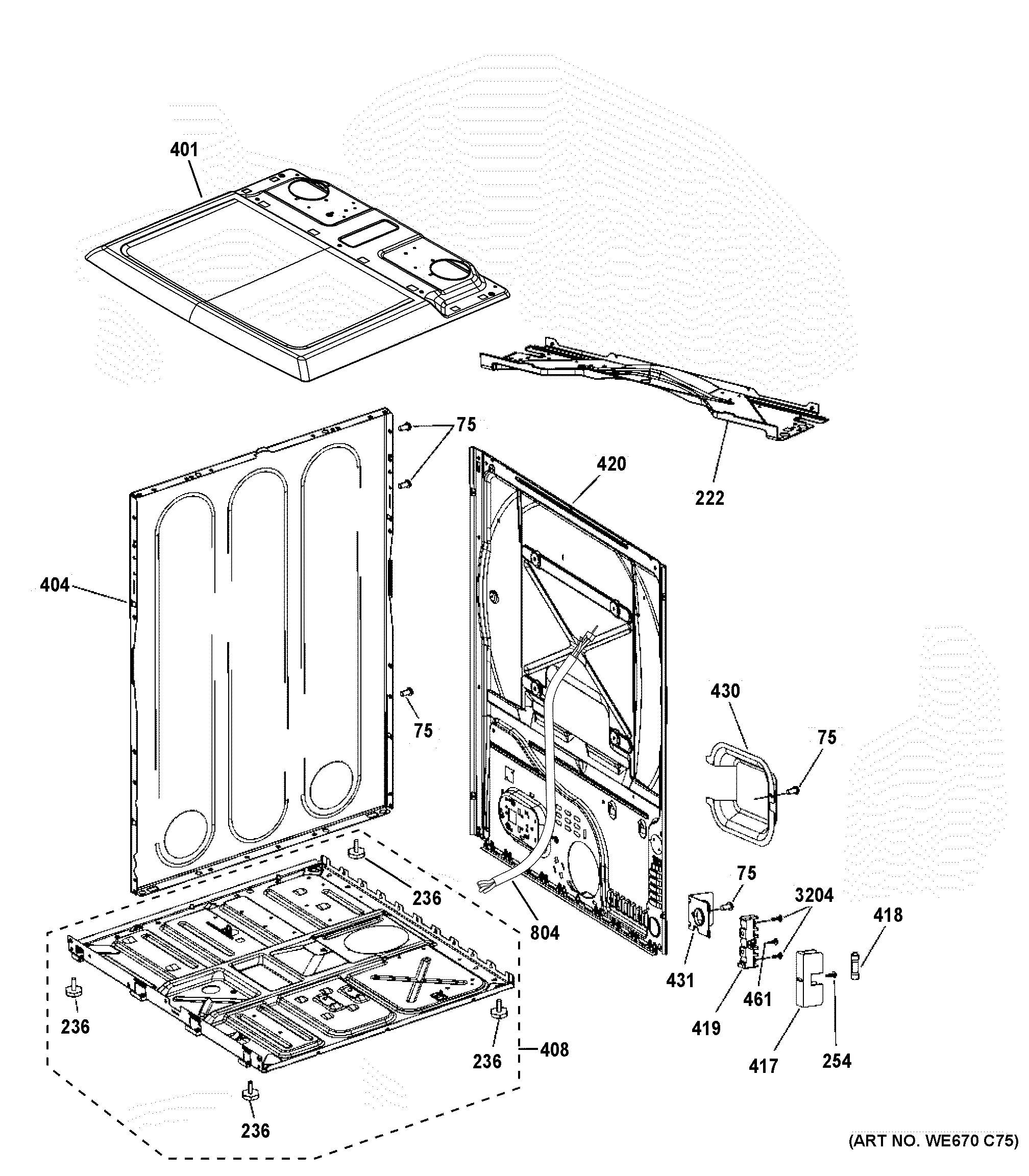

GTX42EASJ2WW CABINET & TOP PANEL

GTX42EASJ2WW CABINET & TOP PANEL

Written by

in

GTX42EASJ2WW CABINET & TOP PANEL

Products

PositionProduct
75WE01X25535 GE Screw
222WE03X23883 GE Bottom Cover
236WE01X29357 GE Washer Levelling Leg
254WE2X21976 GE Screw 6-20 AB PNP #2 1
401WE03X24721 GE Top Low Depth Cover
404WE10X29822 GE Side Panel
408WE04X25159 GE Chassis and Leg Assembly
417WE1X21955 GE Washer Fuse Holder
418WE1X21975 GE Washer Fuse
419WE4M325 GE Dryer Terminal Block and Ground Strap
420WE02X25274 GE Rear Panel
430WE1M1007 GE Terminal Fuse Cover
431WE01X20423 GE Strain Relief Bracket
461WZ5X158D GE Screw Package of 12
804WE15X25574 GE Electric Harness Assembly
3204WZ4X241D GE Screw Package
