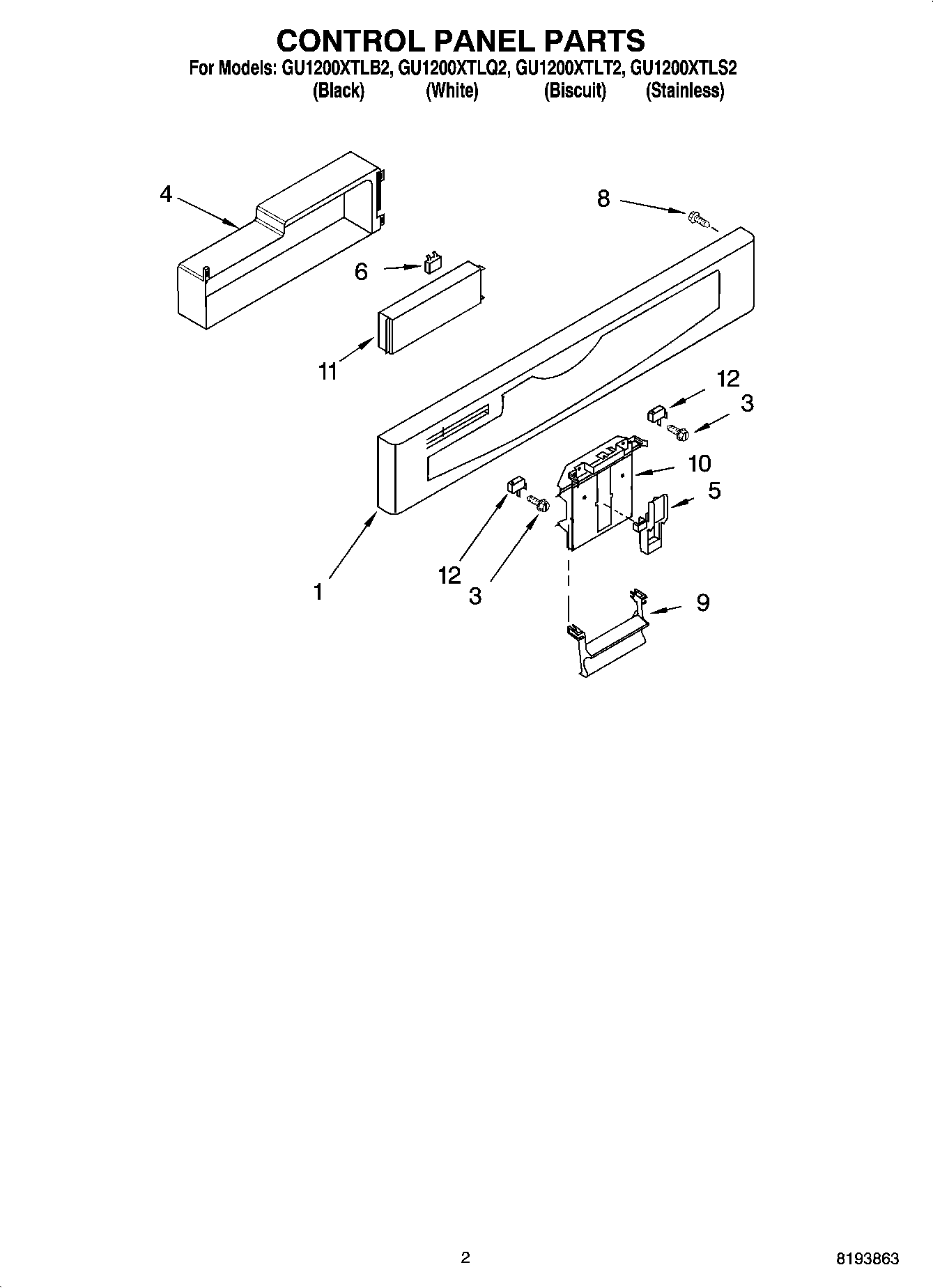

GU1200XTLB2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. includes Active Overlay & Insert (Biscuit)
1	Console Asm. includes Active Overlay & Insert (Black)
1	Console Asm. Includes Active Overlay & Insert
3	WP3400412 Whirlpool Dishwasher Screw
4	Cover Control Shield Assembly
5	WP8524471 Whirlpool Dishwasher Actuator
6	8193762 Whirlpool Fuse Kit
8	WPW10348409 Whirlpool Screw
9	WP8269323 Whirlpool Dishwasher Handle
10	8193882 Whirlpool Dishwasher Primary Latch Bolt
11	Control, Electronic
12	WP8269209 Whirlpool Door Switch
