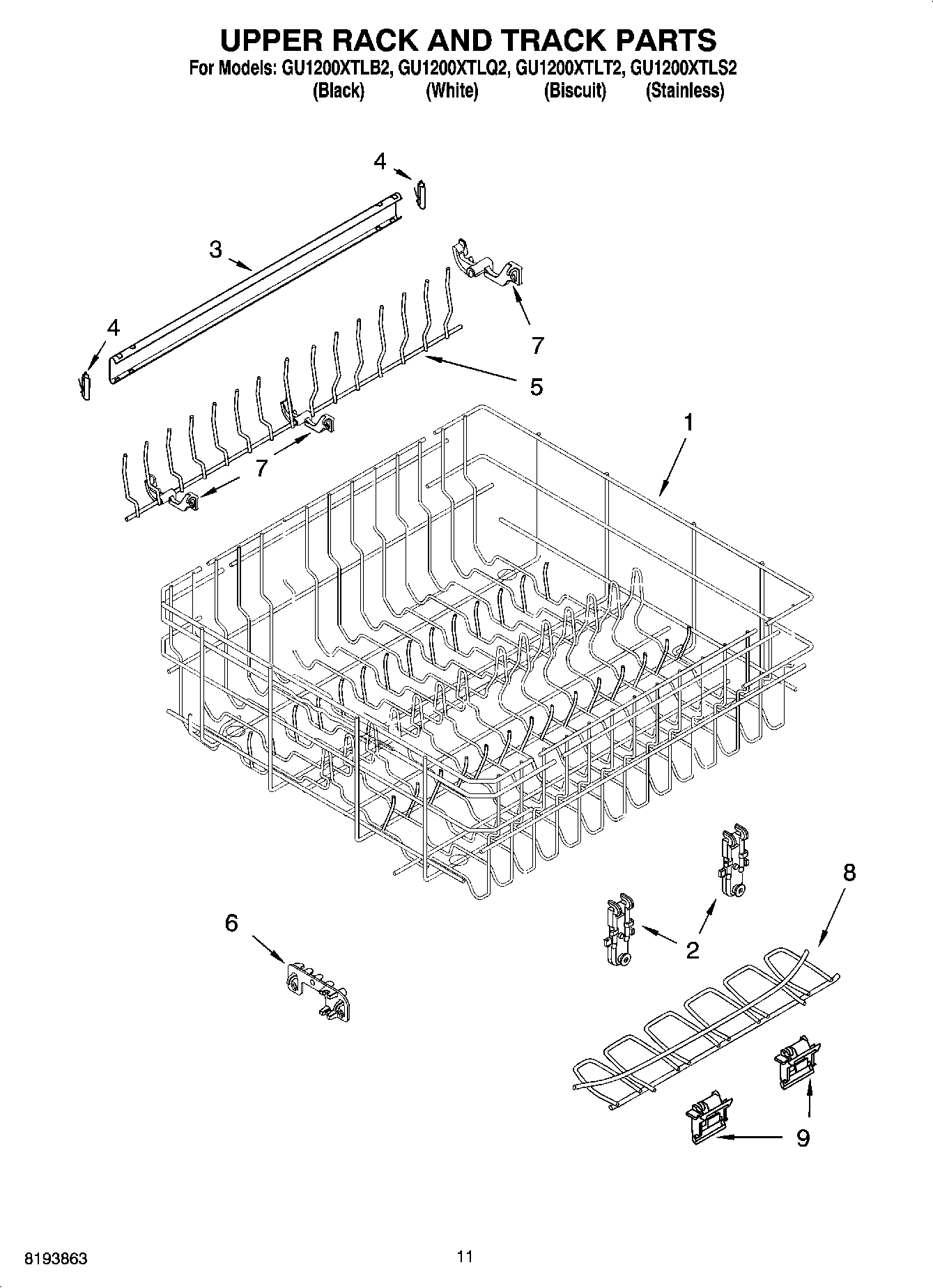

GU1200XTLB2 09 – UPPER RACK AND TRACK PARTS

Written by

Products

Position	Product
1	Dishrack, Upper
2	WP8268655 Whirlpool Roller Assembly
3	WP3385089 Whirlpool Track
4	WP8565925 Whirlpool Slide Rail Stop
5	W10727426 Whirlpool Dishwasher Rack Tine
6	WP8519651 Whirlpool Dishwasher Pivot Tine
7	Positioner, Dual
8	Cupshelf
9	WP8274978 Whirlpool Dishwasher Clip
