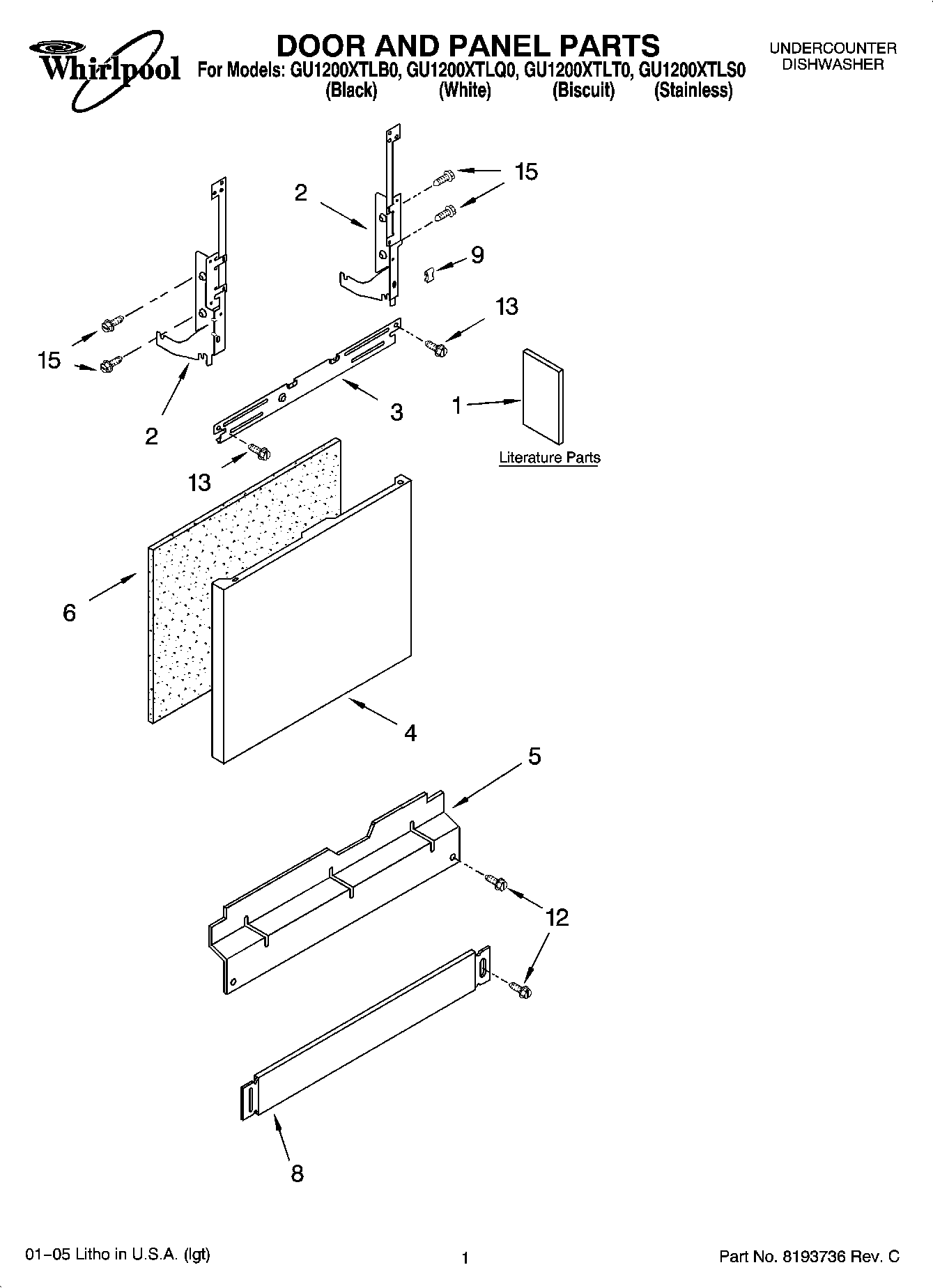

GU1200XTLQ0 01 – DOOR AND PANEL PARTS

GU1200XTLQ0 01 – DOOR AND PANEL PARTS

Written by

in

GU1200XTLQ0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1English/French
1Energy Guide
1Guide, Use & Care Tech Sheet
1Instructions, Installation
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10301571 Whirlpool Dishwasher Panel
4Panel Front (White)
4W10301577 Whirlpool Outer Door Panel
4W10384707 Whirlpool Dishwasher Panel
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
8W10909064 Whirlpool Dishwasher Black Access Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
8Toe Panel (Biscuit)
9Clip, Grounding
12WP302868 Whirlpool Screw
12WPW10503550 Whirlpool Dishwasher Retainer
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13SCREW
15WPW10109200 Whirlpool Screw
