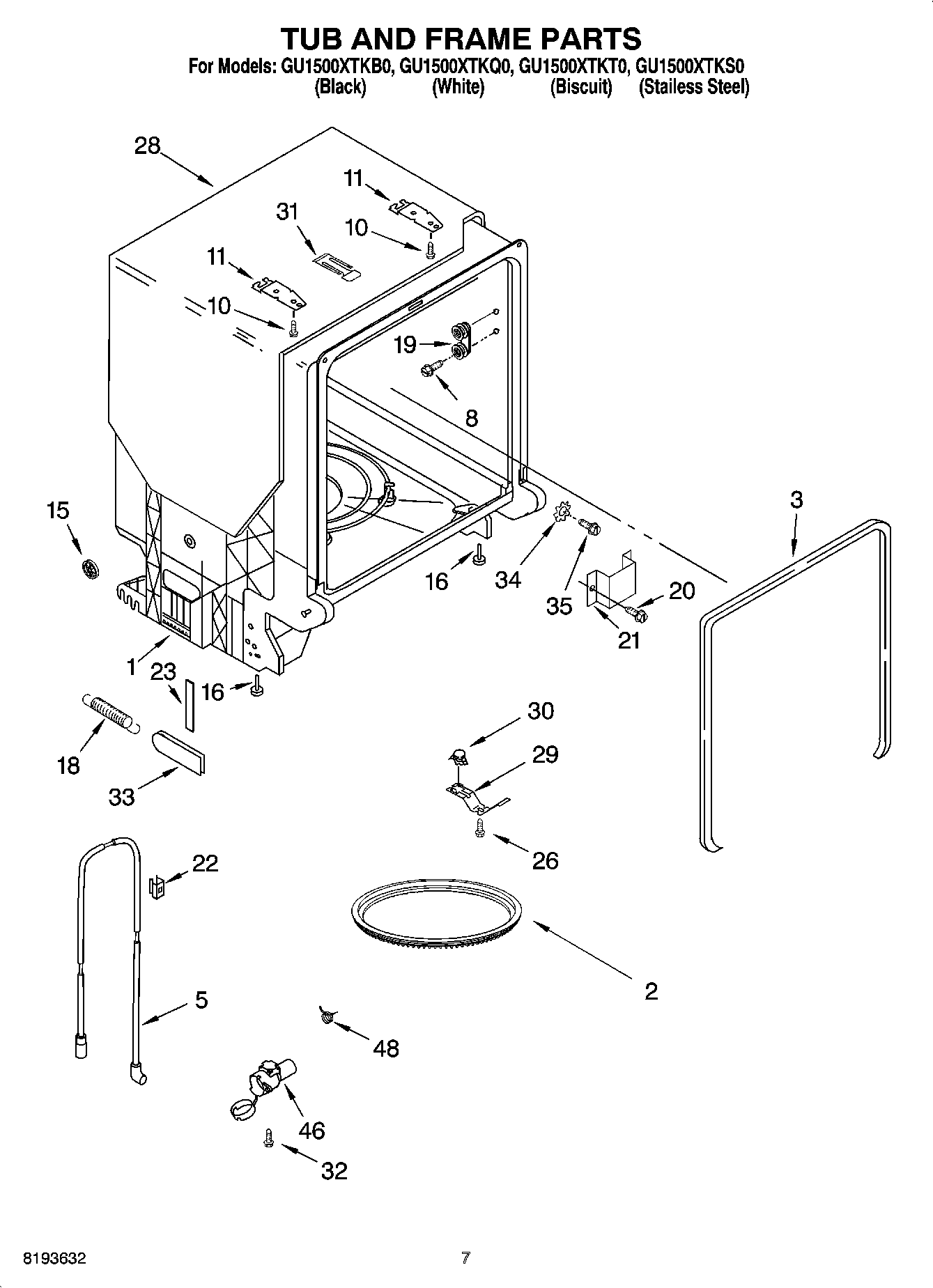

GU1500XTKS0 07 – TUB AND FRAME PARTS

Products

Position	Product
1	W10413848 Whirlpool Dishwasher Tub
2	Seal, Sump
3	W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
5	WPW10358302 Whirlpool Dishwasher Drain Hose
8	Screw (8)
10	WP489443 Whirlpool Refrigerator Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
15	WP8269831 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
18	WPW10337934 Whirlpool Spring Assembly
19	WP8270016 Whirlpool Dishwasher Tub Wheel
20	WP3400892 Whirlpool Dishwasher Screw
21	WP8268991 Whirlpool Dishwasher Cover Assembly
22	Clip, Drain Loop
23	Pad, Friction
26	WP304231 Whirlpool Dishwasher Screw
28	W10877094 Whirlpool Shield
29	W10539489 Whirlpool Dishwasher Bracket-Stat
30	WP661566 Whirlpool High Limit Thermostat
31	WP8580309 Whirlpool Dishwasher Strike
32	WP9741232 Whirlpool Dishwasher Screw
33	WP8268990 Whirlpool Dishwasher Door Spring Bushing
34	WP3378128 Whirlpool Dishwasher Washer
35	WP3400014 Whirlpool Dishwasher Screw
46	Switch, Pressure
48	WP356138 Whirlpool Hose Clamp
