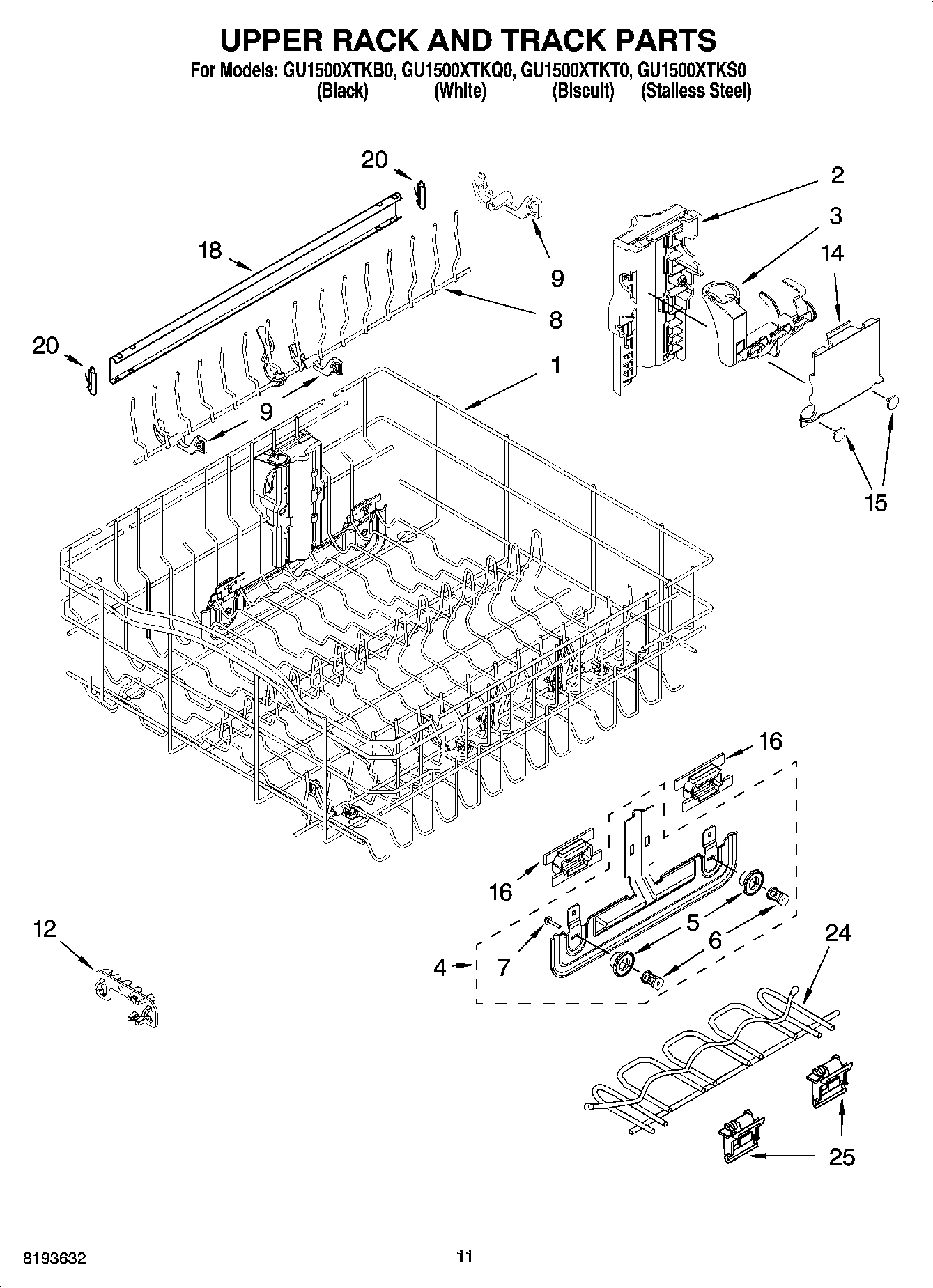

GU1500XTKS0 09 – UPPER RACK AND TRACK PARTS

GU1500XTKS0 09 – UPPER RACK AND TRACK PARTS

Written by

in

GU1500XTKS0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1Dishrack, Upper (Also Order Item 15)
2Housing, Adjuster (Also Order Item 15)
3WP8268751 Whirlpool Dishwasher Adjuster
3Actuator, Adjuster (Also Order Item 15) (Left Hand)
4W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5WP3385088 Whirlpool Dishwasher Upper Wheel
6WP8268703 Whirlpool Dishwasher Rack Axle
7WP8281156 Whirlpool Dishwasher Screw
8W10727426 Whirlpool Dishwasher Rack Tine
9Clip, Pivot
12Positioner, Dual
14Cover, Adjuster (Also Order Item 15)
15WP3400918 Whirlpool Fastener
16Positioner, Arm
18WP3385089 Whirlpool Track
20WP3379941 Whirlpool Dishwasher Stop
24Cupshelf
25WP8274978 Whirlpool Dishwasher Clip
