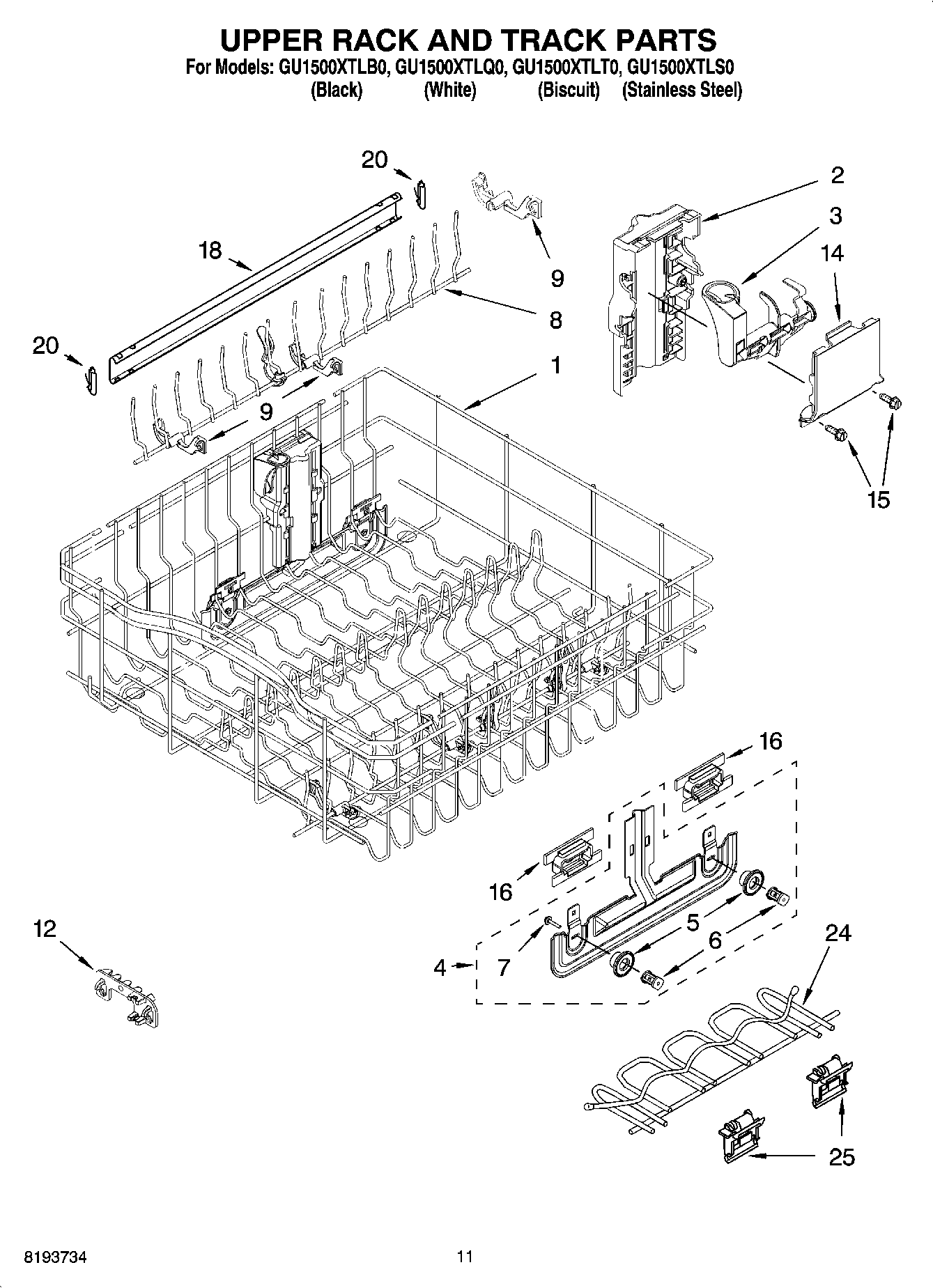

GU1500XTLS0 09 – UPPER RACK AND TRACK PARTS
Written by
in
GU1500XTLS0 09 – UPPER RACK AND TRACK PARTS
Products
Position
Product
1
Dishrack, Upper
2
Housing, Adjuster
3
Actuator, Adjuster (Also Order Item 15) (Left Hand)
3
WP8268751 Whirlpool Dishwasher Adjuster
4
W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5
WP3385088 Whirlpool Dishwasher Upper Wheel
6
WP8268703 Whirlpool Dishwasher Rack Axle
7
WP8281156 Whirlpool Dishwasher Screw
8
W10727426 Whirlpool Dishwasher Rack Tine
9
WP8519651 Whirlpool Dishwasher Pivot Tine
12
Positioner, Dual
14
Cover, Adjuster
15
WP9741232 Whirlpool Dishwasher Screw
16
Positioner, Arm
18
WP3385089 Whirlpool Track
20
WP8565925 Whirlpool Slide Rail Stop
24
Cupshelf
25
WP8274978 Whirlpool Dishwasher Clip
←
