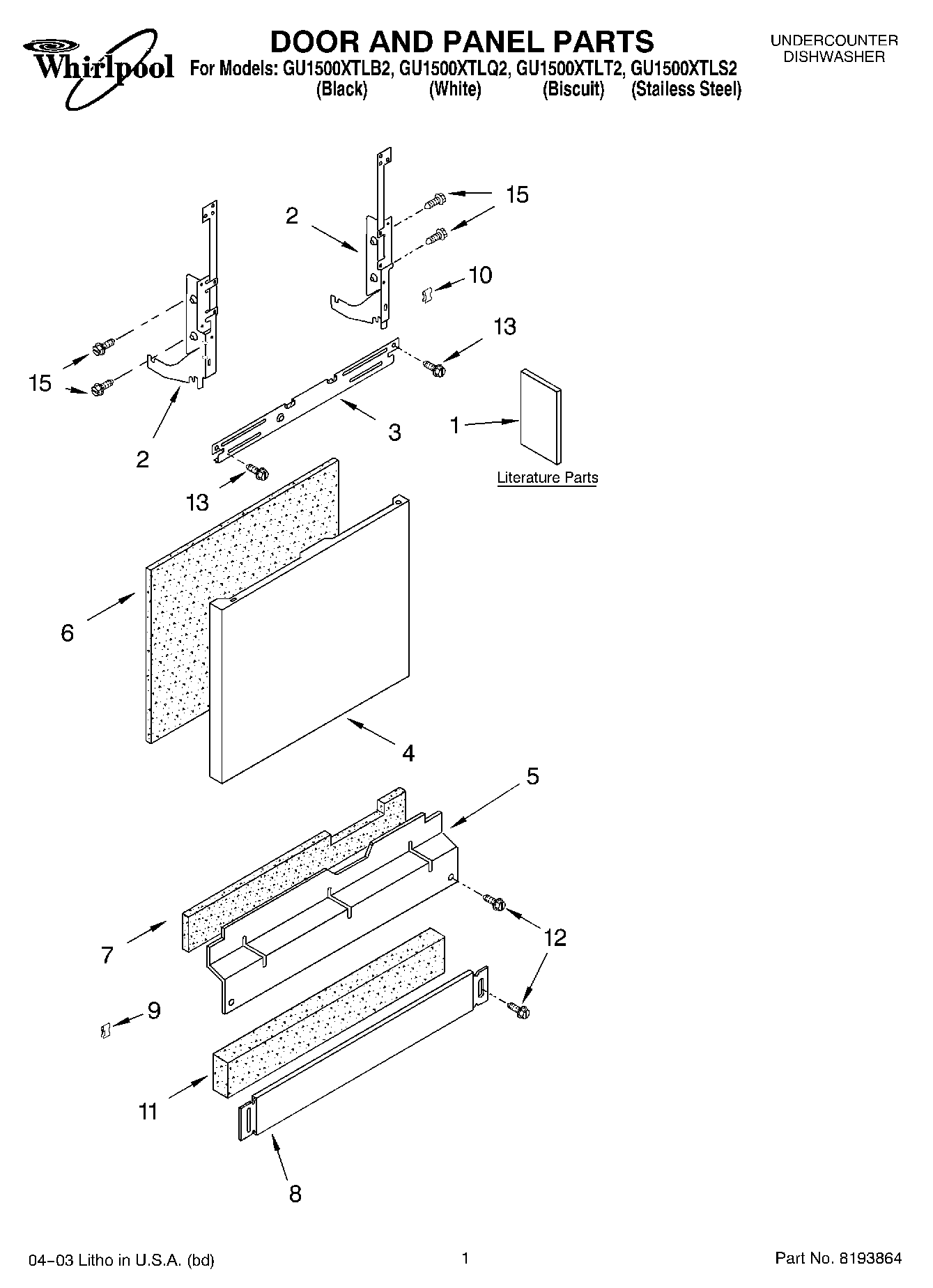

GU1500XTLT2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Literature Parts (Guide, Use & Care Tech Sheet)
1	Literature Parts (Energy Guide)
1	Instructions, Installation
1	Literature Parts (English/French)
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	W10301577 Whirlpool Outer Door Panel
4	Panel Front (White)
4	W10384707 Whirlpool Dishwasher Panel
4	W10301571 Whirlpool Dishwasher Panel
5	W10871198 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
8	Toe Panel (Includes Item 11) (Biscuit)
8	WPW10586591 Whirlpool Dishwasher Toe Panel
9	WP8269016 Whirlpool Clip Assembly
10	Clip, Grounding
11	SHIELD
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	WPW10503550 Whirlpool Dishwasher Retainer
12	WP302868 Whirlpool Screw
13	WP489069 Whirlpool Compactor Screw
15	Screw 10-16, Hi-Lo (4)
