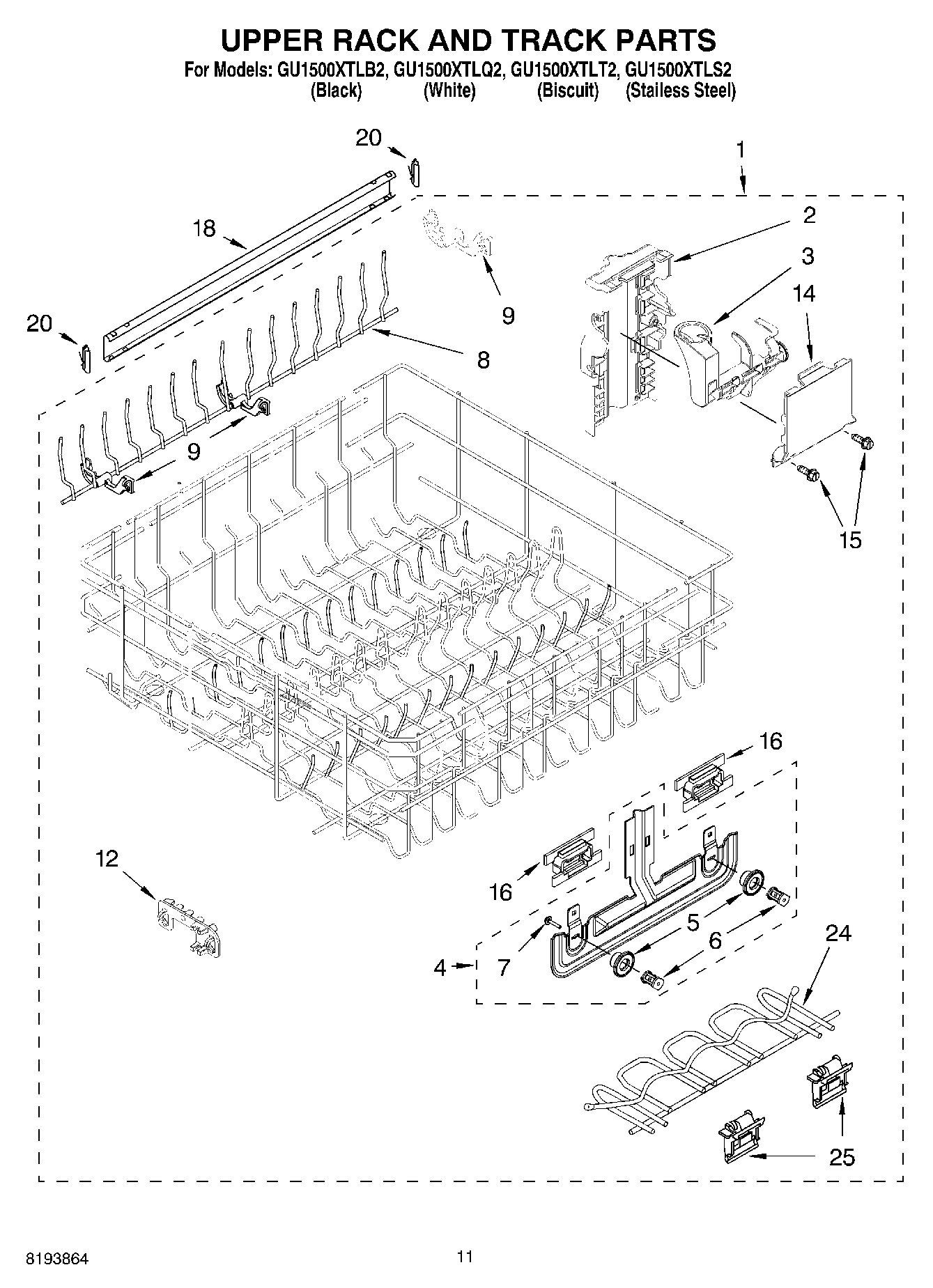

GU1500XTLT2 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	Dishrack, Upper Assembly
2	Housing, Adjuster
3	Actuator, Adjuster (Also Order Item 15) (Left Hand)
3	WP8268751 Whirlpool Dishwasher Adjuster
4	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
5	WP3385088 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	WP8519651 Whirlpool Dishwasher Pivot Tine
12	Positioner, Dual
14	Cover, Adjuster
15	WP9741232 Whirlpool Dishwasher Screw
16	Positioner, Arm
18	WP3385089 Whirlpool Track
20	WP8565925 Whirlpool Slide Rail Stop
24	Cupshelf
25	WP8274978 Whirlpool Dishwasher Clip
